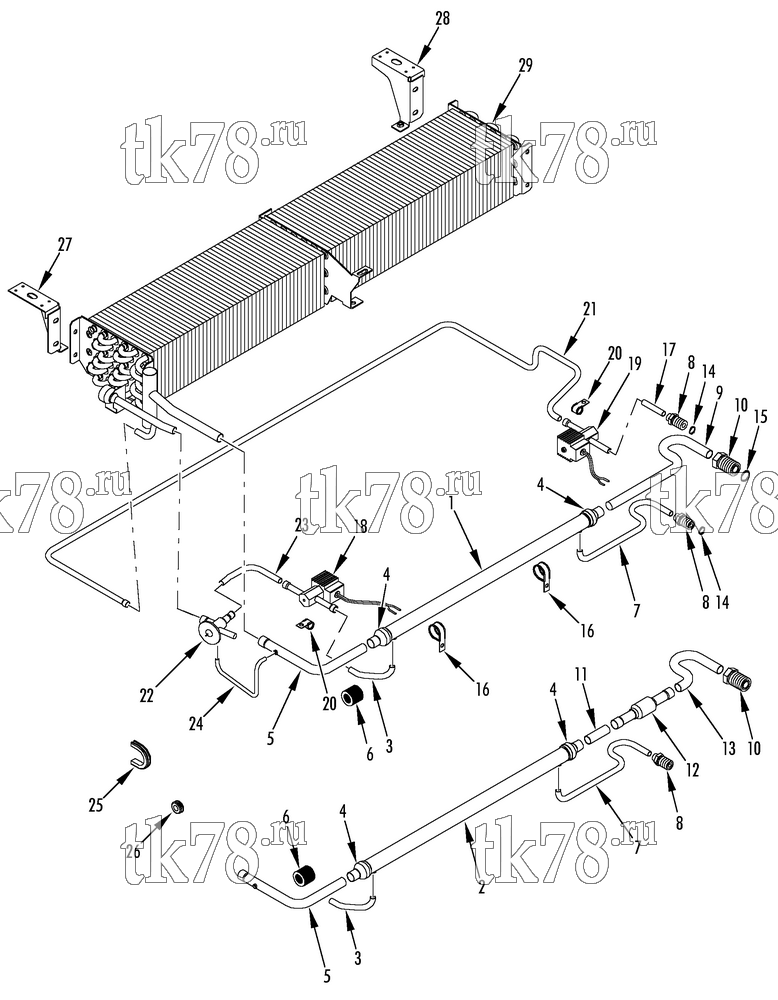

Установкa Thermo King KV-300 & KV-300 MAX схема EVAPORATOR REFRIGERATION COMPONENTS (KV-300 MAX) – 217H1
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2249 | HEAT EXCHANGER (w/o cab air, incl items 3 thru 10) | 1 | |
| 2 | 67-2250 | HEAT EXCHANGER (w/ cab air, incl item 3 thru 8, 11, 12 & 13) | 1 | |
| 3 | 61-3725 | TUBE | 1 | |
| 4 | 51-1591 | COUPLING | 2 | |
| 51-1592 | COUPLING | 2 | ||
| 61-3726 | TUBE | 2 | ||
| 5 | 61-3727 | TUBE | 1 | |
| 6 | 92-5943 | INSULATION - tube (cut to 2.62 in) | A/R | |
| 7 | 61-3747 | TUBE - heat exchanger | 1 | |
| 8 | 61-434 | FITTING (ORS, 11/16-16 w/ nut) | 2 | |
| 55-9929 | NUT (ORS , #10) | 2 | ||
| 9 | 61-3728 | TUBE - heat exchanger | 1 | |
| 10 | 61-422 | FITTING (ORS, w/ nut) | 1 | |
| 55-9836 | NUT (ORS, #6) | 1 | ||
| 11 | 61-3729 | TUBE - heat exchanger | 1 | |
| 12 | 61-3137 | VALVE - check | 1 | |
| 13 | 61-3730 | TUBE - heat exchanger | 1 | |
| 14 | 33-1015 | GASKET - o-ring (3/8 id) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 15 | 33-2115 | GASKET - o-ring (5/8 id) | 1 | |
| 16 | 55-4552 | CLAMP - exchanger | 2 | |
| 55-6994 | SCREW - clamp | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 1 | ||
| 17 | 61-3297 | TUBE - adapter to solenoid | 1 | |
| 61-434 | FITTING - hot gas (w/ nut, #6) | 1 | ||
| 18 | 61-3132 | VALVE - solenoid (liquid, 12VDC) | 1 | |
| 66-3383 | VALVE - solenoid (liquid, 24VDC) | 1 | ||
| 55-6994 | SCREW - solenoid | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 19 | 61-3192 | VALVE - solenoid (defrost, 12VDC) | 1 | |
| 61-3387 | VALVE - solenoid (defrost, 24VDC) | 1 | ||
| 20 | 55-3065 | CLAMP (0.500 dia) | 2 | |
| 55-2239 | CLAMP (0.375 dia) | 3 | ||
| 55-6994 | SCREW - clamp | 3 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 55-6995 | FLATWASHER | 3 | ||
| 21 | 61-3731 | TUBE - defrost | 1 | |
| 22 | 61-3193 | VALVE - expansion | 1 | |
| 23 | 61-3732 | TUBE - expansion valve to solenoid | 1 | |
| 24 | 61-3733 | TUBE - balance | 1 | |
| 25 | 33-4339 | GROMMET | 1 | |
| 26 | 33-740 | GROMMET (0.437 dia) | 2 | |
| 27 | 92-5935 | BRACKET - evaporator (curbside) | 1 | |
| 28 | 92-5936 | BRACKET - evaporator (roadside) | 1 | |
| 29 | 67-2124 | COIL - evaporator | 1 | |
| 55-9443 | NUT - captive | 11 | ||
| 55-6994 | SCREW - coil (M6 x 16) | 12 | ||
| 55-7172 | SCREW - coil (M6 x 1) | 2 | ||
| 55-6996 | LOCKWASHER | 13 | ||
| 55-6995 | FLATWASHER | 3 | ||
| 55-8893 | WASHER - special | 10 |
