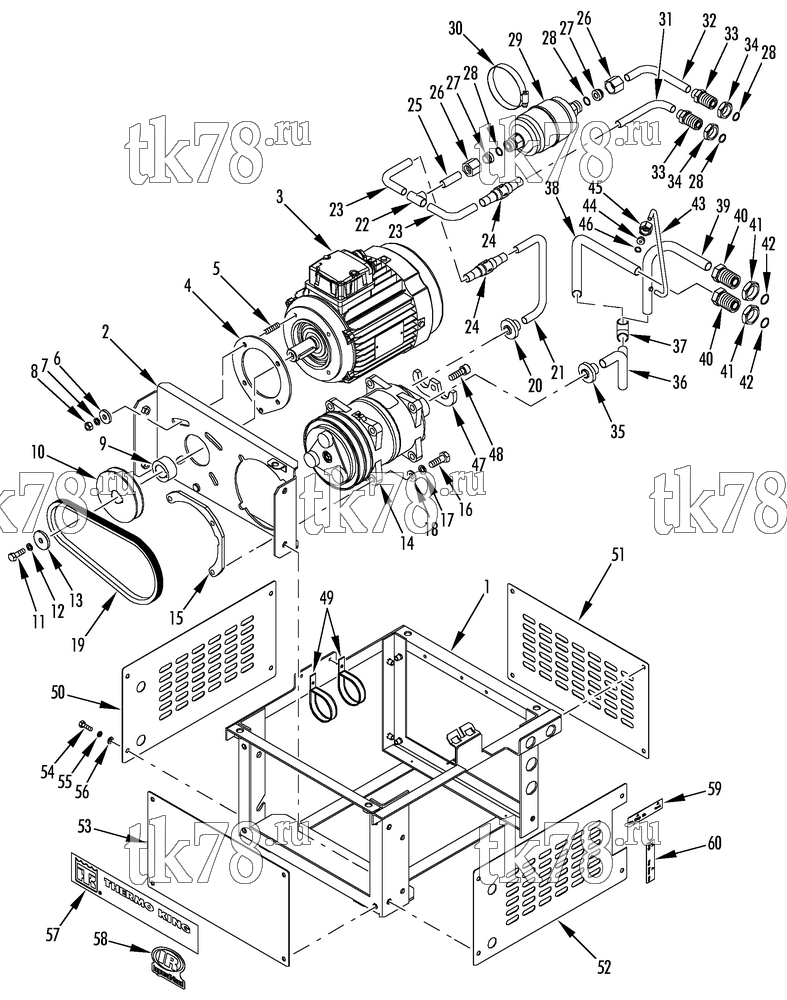

Установкa Thermo King KV-300 & KV-300 MAX схема STANDBY POWER UNIT – 217C5
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7618 | FRAME | 1 | |
| 2 | 92-662 | BRACKET - motor | 1 | |
| 55-7341 | SCREW - bracket | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 3 | 104-782 | MOTOR - standby (220/1/50) | 1 | |
| 41-3785 | CAPACITOR (40 uf) | 1 | ||
| 104-782 | MOTOR - standby 220/1/50 JL90P 1.5KW | 1 | ||
| 41-3785 | CAPACITOR 40UF (220/1/50) | 1 | ||
| 104-769 | MOTOR - standby (220/1/60) | 1 | ||
| 41-7220 | CAPACITOR (150 uf) | 1 | ||
| 41-3785 | CAPACITOR (40 uf) | 1 | ||
| 41-7219 | RELAY - start | 1 | ||
| 41-8086 | MOTOR - standby (230-380/3/50-60) | 1 | ||
| 4 | 77-2877 | PLATE - gyrator | 1 | |
| 5 | 55-4620 | STUD - motor | 4 | |
| 6 | 55-8577 | WASHER - special, metric | 4 | |
| 7 | 55-7066 | LOCKWASHER | 4 | |
| 8 | 55-7825 | NUT | 4 | |
| 9 | 77-2601 | SPACER - pulley | 1 | |
| 10 | 77-2590 | PULLEY - motor | 1 | |
| 11 | 55-6993 | SCREW - pulley | 1 | |
| 12 | 55-7066 | LOCKWASHER | 1 | |
| 13 | 55-8560 | WASHER - special, metric | 1 | |
| 14 | 102-1016 | COMPRESSOR - 13XD (12V, see 189C3) | 1 | |
| 102-575 | COMPRESSOR ASSY (TM13-XD 24V, see 189C3) | 1 | ||
| 102-1028 | COMPRESSOR - 15XD (12V, see 135B13) | 1 | ||
| 102-839 | COMPRESSOR ASSY (TM15 XD 24V, see 135B13) | 1 | ||
| 15 | 92-588 | BRACKET - compressor | 1 | |
| 16 | 55-7355 | SCREW - bracket | 3 | |
| 17 | 55-8537 | LOCKWASHER | 3 | |
| 18 | 55-8536 | FLATWASHER | 3 | |
| 19 | 78-1206 | BELT - compressor drive | 1 | |
| 20 | 61-3734 | ADAPTER - compressor | 1 | |
| 21 | 61-3735 | TUBE - compressor to tee | 1 | |
| 22 | 55-2296 | TEE (1/2 x 1/2 x 1/2) | 1 | |
| 23 | 61-3736 | TUBE - tee to valve | 2 | |
| 24 | 66-5722 | VALVE - check | 2 | |
| 25 | 61-3737 | TUBE - tee to separator | 1 | |
| 26 | 55-6838 | NUT - shoulder | 2 | |
| 27 | 55-6837 | SHOULDER - o-ring seal | 2 | |
| 28 | 33-566 | GASKET - o-ring (1/2 in id) | 4 | |
| 29 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 370 ₽ |
|
| 30 | 55-6225 | CLAMP - separator (2.50 in dia) | 1 | |
| 31 | 61-3738 | TUBE - valve to adapter | 1 | |
| 32 | 61-3739 | TUBE - separator to adapter | 1 | |
| 33 | 61-1228 | FITTING - o-ring seal | 2 | |
| 34 | 55-9895 | NUT - o-ring seal (#8) | 2 | |
| 35 | 61-399 | FITTING - suction, compressor | 1 | |
| 36 | 61-3740 | TUBE - suction to tee | 1 | |
| 37 | 55-904 | TEE (5/8 x 5/8 x 5/8) | 1 | |
| 38 | 61-3741 | TUBE - tee to adapter | 1 | |
| 39 | 61-3742 | TUBE - tee to adapter | 1 | |
| 40 | 61-422 | FITTING - o-ring seal | 2 | |
| 41 | 55-9929 | NUT - o-ring seal (#10) | 2 | |
| 42 | 33-2115 | GASKET - o-ring (5/8 in id) | 2 | |
| 43 | 61-3743 | TUBE - oil return | 1 | |
| 44 | 55-8456 | SHOULDER - o-ring seal | 1 | |
| 45 | 55-8457 | NUT - o-ring seal | 1 | |
| 46 | 33-1461 | GASKET - o-ring (5/16 in id) | 1 | |
| 47 | 22-1120 | BRACKET - manifold holdown | 1 | |
| 48 | 55-9484 | SCREW - bracket | 1 | |
| 49 | 55-5618 | CLAMP (2.000 dia) | 2 | |
| 55-2666 | CLAMP (1.437 dia) | 2 | ||
| 55-7169 | SCREW - clamp | A/R | ||
| 55-7033 | FLATWASHER | A/R | ||
| 55-7404 | LOCKWASHER | A/R | ||
| 55-7367 | NUT | A/R | ||
| 50 | 98-7619 | COVER - power pack | 1 | |
| 51 | 98-7620 | COVER - power pack | 1 | |
| 52 | 98-7621 | COVER - power pack | 1 | |
| 53 | 98-7622 | COVER - power pack | 1 | |
| 54 | 55-6994 | SCREW - cover | 16 | |
| 55 | 55-6996 | LOCKWASHER | 16 | |
| 56 | 55-7075 | FLATWASHER | 16 | |
| 55-7373 | NUT - captive | 16 | ||
| 57 | 91-7551 | NAMEPLATE - Thermo King | 1 | |
| 58 | 92-1307 | NAMEPLATE - IR | 1 | |
| 59 | 92-5938 | NAMEPLATE - cond/discharge | 1 | |
| 60 | 92-5939 | NAMEPLATE - evap/suction | 1 |
