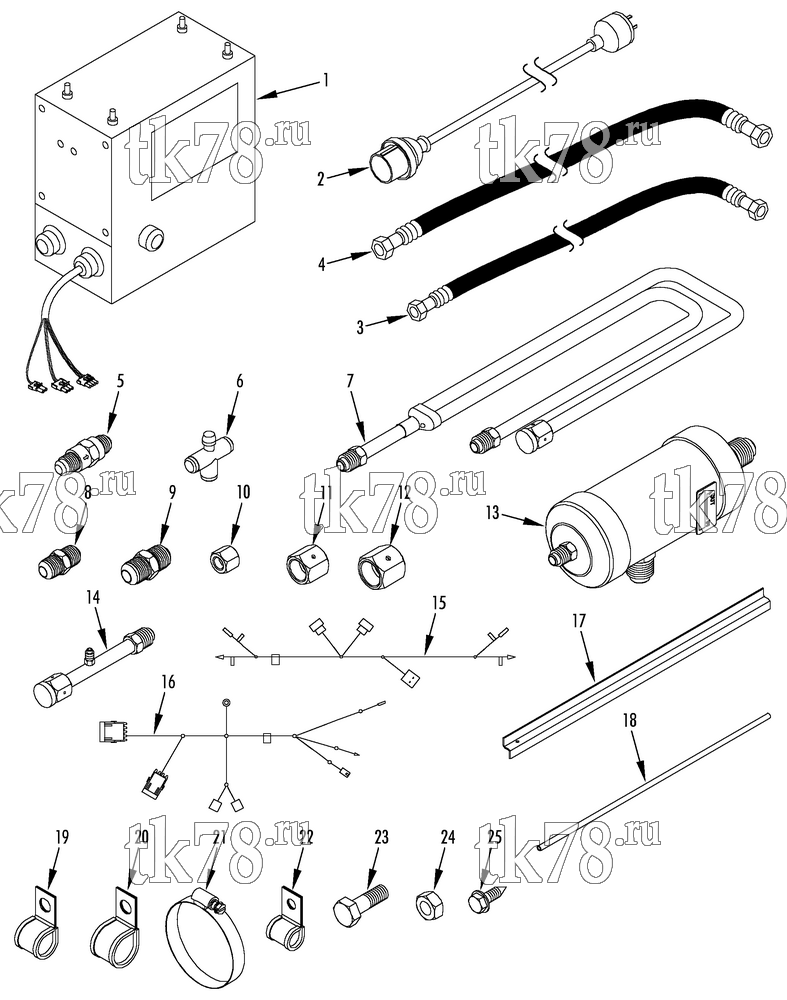

Установкa Thermo King KV-300 & KV-300 MAX схема MOUNTING COMPONENTS STANDBY KIT (700412 & 700413) – 217C4
Обновление от: 8/14/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2154 | CONTROL UNIT - 12VDC | 1 | |
| 45-2155 | CONTROL UNIT - 24VDC | 1 | ||
| 2 | 41-7398 | CABLE - control unit | 1 | |
| 3 | 61-3711 | HOSE - high pressure | 1 | |
| 4 | 61-3712 | HOSE - low pressure | 1 | |
| 5 | 61-3713 | VALVE - check | 2 | |
| 6 | 51-1568 | TEE - union | 1 | |
| 7 | 61-3714 | TUBE - assembly | 1 | |
| 8 | 51-1569 | COUPLING (3/4-16 unf) | 1 | |
| 9 | 51-1570 | COUPLING (1-1/16-14 unf) | 1 | |
| 10 | 51-1571 | NUT - flare (1/4 od x 7/16-20 unf) | 2 | |
| 11 | 51-1572 | NUT - flare (1/2 od x 3/4-16 unf) | 6 | |
| 12 | 51-1573 | NUT - flare (5/8 od x 7/8-14 unf) | 6 | |
| 13 | 61-3715 | SEPARATOR - oil | 1 | |
| 14 | 61-3716 | TUBE - assembly | 1 | |
| 15 | 41-7399 | HARNESS - wire | 1 | |
| 16 | 41-7400 | HARNESS - wire | 1 | |
| 17 | 92-5855 | BRACKET | 3 | |
| 18 | 92-5856 | COVER - tube | 4 | |
| 19 | 55-3065 | CLAMP (0.500 dia) | 10 | |
| 20 | 55-3026 | CLAMP (0.625 dia) | 10 | |
| 21 | 55-2688 | CLAMP (2.50-4.00 dia) | 2 | |
| 22 | 55-547 | CLAMP (0.375 dia) | 5 | |
| 23 | 55-7355 | SCREW - hex hd (M10) | 14 | |
| 24 | 55-7348 | NUT - hex (M10) | 10 | |
| 25 | 55-5640 | SCREW - hex hd (sht mtl) | 25 |
