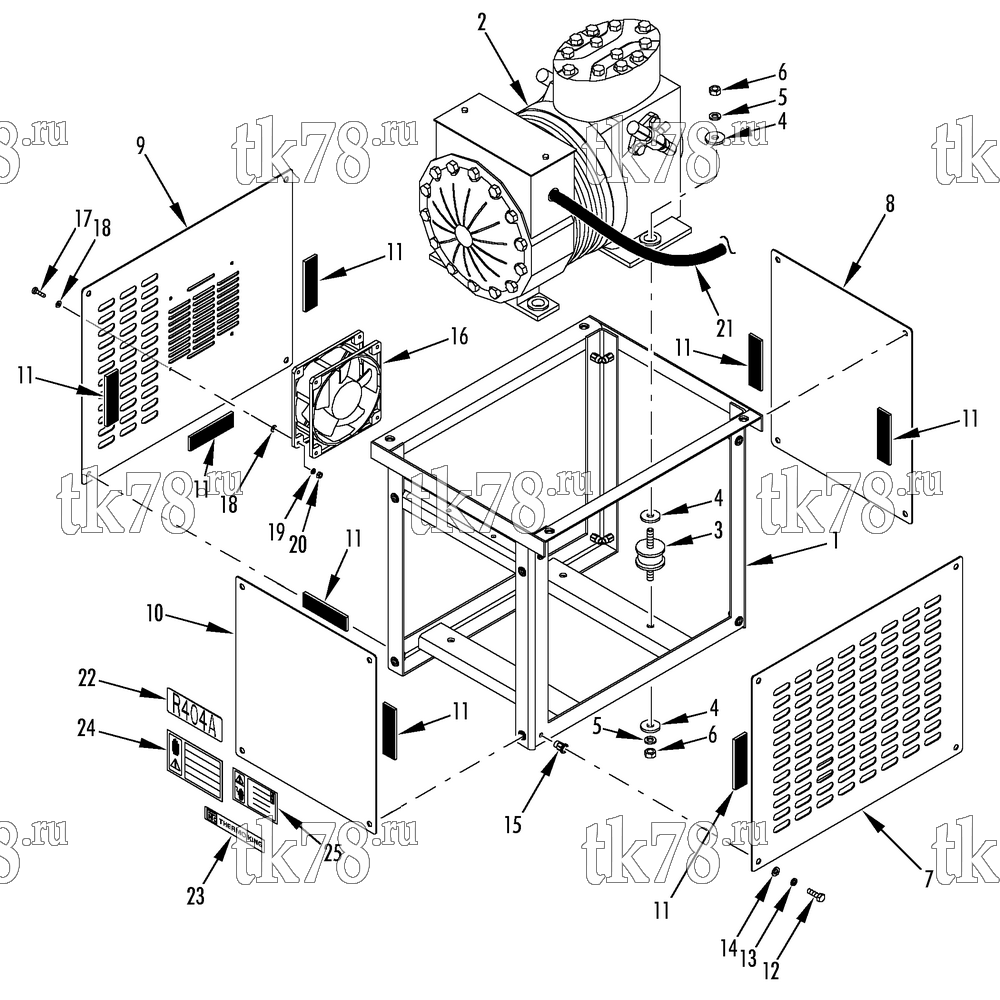

Установкa Thermo King KV-300 & KV-300 MAX схема POWER UNIT ASSEMBLY (700412 & 700413) – 217C3
Обновление от: 8/14/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7575 | FRAME | 1 | |
| 2 | 102-883 | COMPRESSOR | 1 | |
| 3 | 92-5876 | ISOLATOR | 4 | |
| 4 | 55-2769 | WASHER - special (0.344 id) | 12 | |
| 5 | 55-7342 | LOCKWASHER | 8 | |
| 6 | 55-7825 | NUT | 8 | |
| 7 | 98-7576 | COVER (incl item 11) | 1 | |
| 8 | 98-7577 | COVER (incl item 11) | 1 | |
| 9 | 98-7578 | COVER (incl item 11) | 1 | |
| 10 | 98-7579 | COVER (incl item 11) | 1 | |
| 11 | 33-4331 | LINING | 11 | |
| 12 | 55-6994 | SCREW - cover | 16 | |
| 13 | 55-6996 | LOCKWASHER | 16 | |
| 14 | 55-7075 | FLATWASHER | 16 | |
| 15 | 55-9443 | NUT - captive | 16 | |
| 16 | 104-734 | FAN & MOTOR | 1 | |
| 17 | 55-7664 | SCREW - fan & motor | 4 | |
| 18 | 55-7697 | FLATWASHER | 8 | |
| 19 | 55-7861 | LOCKWASHER | 4 | |
| 20 | 55-7698 | NUT | 4 | |
| 21 | 41-7397 | CABLE - compressor | 1 | |
| 22 | 91-5882 | NAMEPLATE - R404A | 1 | |
| 23 | 91-9638 | NAMEPLATE - Thermo King | 1 | |
| 24 | 92-1664 | NAMEPLATE - Service Warning | 1 | |
| 25 | 92-590 | NAMEPLATE - Caution, High Voltage | 1 |
