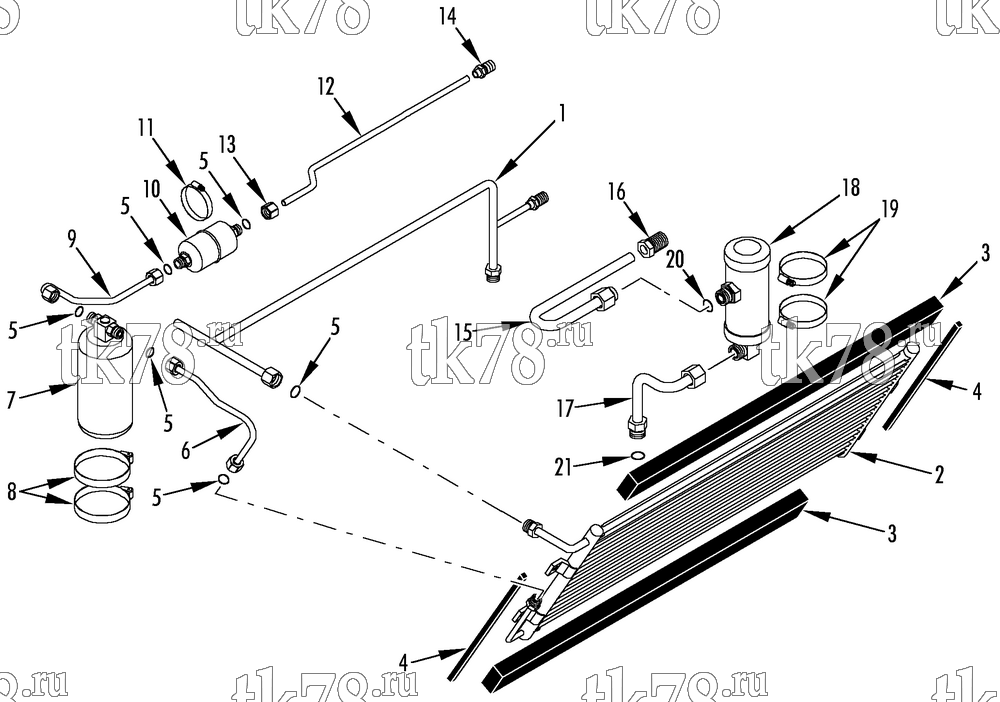

Установкa Thermo King KV-300 & KV-300 MAX схема CONDENSER REFRIGERATION (without A/C) – 208G0
Обновление от: 8/19/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-3128 | TUBE - bulkhead to coil | 1 | |
| 55-8267 | NUT - o-ring seal (#6) | 2 | ||
| 55-8268 | SHOULDER - o-ring seal (#6) | 2 | ||
| 2 | 67-2117 | COIL - condenser | 1 | |
| 55-7341 | SCREW - coil | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 3 | 33-4133 | BLOCK - foam | 2 | |
| 4 | 33-4132 | BLOCK - foam | 2 | |
| 5 | 33-1015 | O-RING (#6) | 6 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 6 | 61-3133 | TUBE - coil to receiver tank | 1 | |
| 61-434 | ADAPTER - o-ring seal (#6) | 1 | ||
| 55-9836 | NUT - o-ring seal (#6) | 1 | ||
| 7 | 61-3125 | TANK - receiver | 1 | |
| 8 | 55-7800 | CLAMP - receiver | 2 | |
| 9 | 61-6127 | TUBE - condenser to tank | 1 | |
| 55-8267 | NUT - o-ring seal (#6) | 2 | ||
| 55-8268 | SHOULDER - o-ring seal (#6) | 2 | ||
| 10 | 61-3124 | DEHYDRATOR (includes o-rings) | 1 | |
|
10-61-3853 | Дегидратор, V-400/500/600 | 1 280 ₽ |
|
| 11 | 55-6225 | CLAMP - dehydrator | 1 | |
| 12 | 61-3385 | TUBE - dehydrator | 1 | |
| 13 | 55-8267 | NUT - o-ring | 1 | |
| 14 | 55-8268 | SHOULDER - o-ring seal | 1 | |
| 55-9836 | NUT - ors (#6) | 1 | ||
| 15 | 61-3386 | TUBE - accumulator | 1 | |
| 16 | 61-422 | FITTING - o-ring seal (w/ nut) | 1 | |
| 55-9929 | NUT - o-ring seal | 1 | ||
| 17 | 61-3134 | TUBE - accumulator | 1 | |
| 55-6400 | ADAPTER | 1 | ||
| 18 | 61-3126 | TANK - accumulator | 1 | |
| 19 | 55-2688 | CLAMP | 2 | |
| 20 | 33-2350 | O-RING (7/16 id) | 1 | |
| 21 | 33-2115 | O-RING (#10, 5/8 id) | 1 |
