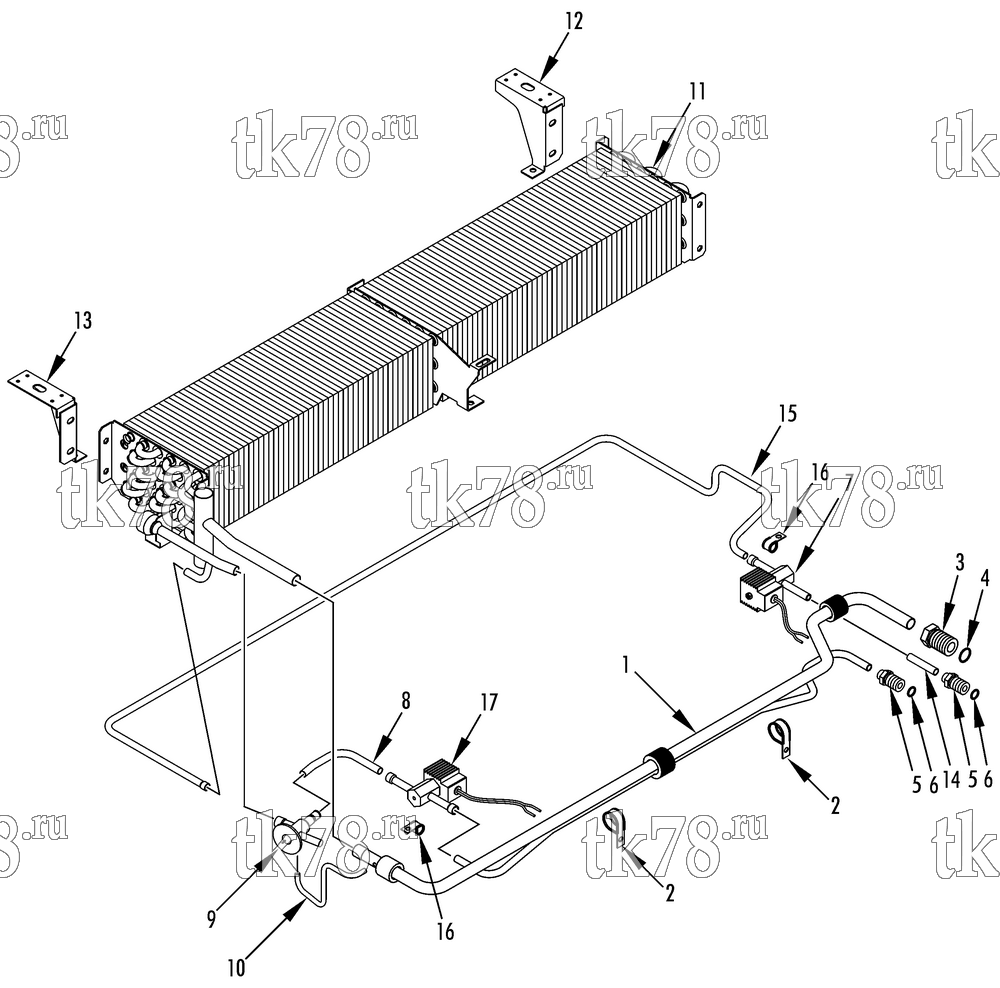

Установкa Thermo King KV-300 II MAX схема EVAPORATOR REFRIGERATION – 233H6
Обновление от: 3/17/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-4584 | HEAT EXCHANGER | 1 | |
| 2 | 55-4552 | CLAMP - exchanger | 2 | |
| 55-6994 | SCREW - clamp | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 3 | 61-422 | FITTING - suction (w/ nut) | 1 | |
| 4 | 33-2115 | O-RING - suction (5/8 id) | 1 | |
| 5 | 61-434 | FITTING - liquid & hot gas | 2 | |
| 55-9836 | NUT (ORS, #6) | 2 | ||
| 6 | 33-1015 | O-RING - liquid & hot gas (3/8 id, #6) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 7 | 61-3192 | SOLENOID - defrost (12V) | 1 | |
| 61-3387 | SOLENOID - defrost (24V) | 1 | ||
| 55-6994 | SCREW - solenoid | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 8 | 61-4583 | TUBE - solenoid to expansion valve | 1 | |
| 9 | 61-3193 | VALVE - expansion | 1 | |
| 10 | 61-3733 | TUBE - equalizer | 1 | |
| 11 | 67-2124 | COIL - evaporator | 1 | |
| 55-9443 | NUT - captive | 11 | ||
| 55-6994 | SCREW - coil | 11 | ||
| 55-6996 | LOCKWASHER | 11 | ||
| 55-6995 | FLATWASHER | 11 | ||
| 12 | 92-5936 | BRACKET - evaporator (roadside) | 1 | |
| 13 | 92-5935 | BRACKET - evaporator (curbside) | 1 | |
| 55-5130 | RIVET - bracket | 8 | ||
| 14 | 61-3297 | TUBE - adapter to solenoid | 1 | |
| 61-434 | FITTING - hot gas (#6) | 1 | ||
| 15 | 61-3731 | TUBE - defrost | 1 | |
| 16 | 55-2239 | CLAMP - tube | 3 | |
| 55-6994 | SCREW - clamp | 3 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 55-6995 | FLATWASHER | 3 | ||
| 17 | 61-3132 | SOLENOID - liquid (12V) | 1 | |
| 61-3383 | SOLENOID - liquid (24V) | 1 |
