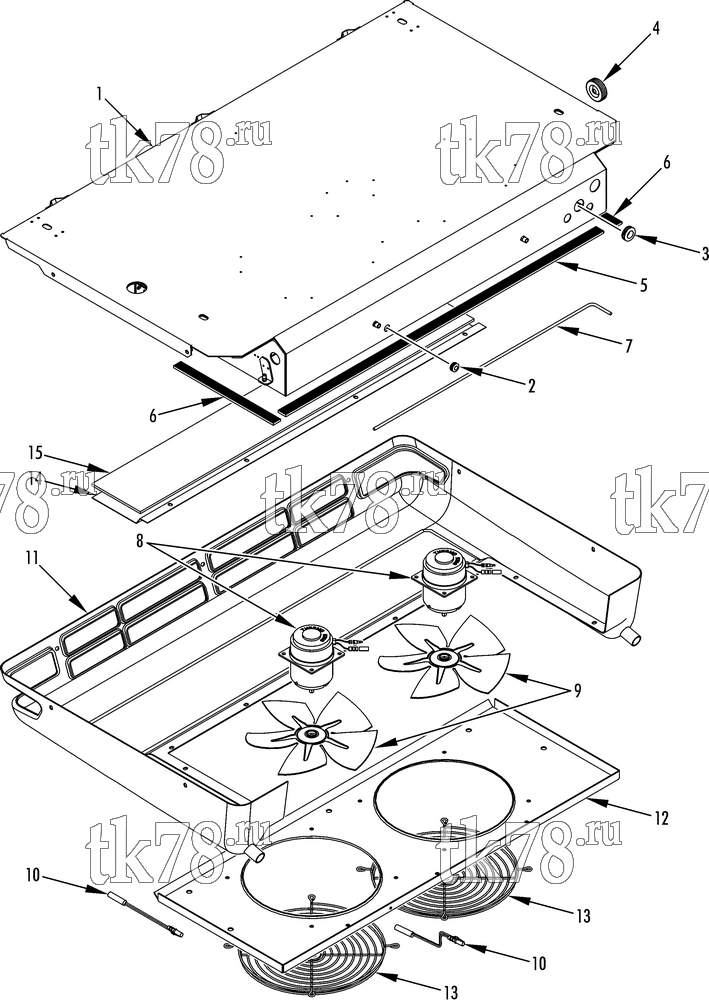

Установкa Thermo King KV-300 II MAX схема EVAPORATOR COVER & FANS – 233H5
Обновление от: 2/27/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7617 | FRAME - evaporator | 1 | |
| 55-8375 | NUT - captive (5 mm) | A/R | ||
| 55-7373 | NUT - captive (6 mm) | A/R | ||
| 55-9919 | SCREW - frame (M10) | 4 | ||
| 55-8536 | FLATWASHER (M10) | 4 | ||
| 55-7348 | NUT (M10) | 4 | ||
| 2 | 33-547 | GROMMET (0.375 id) | 2 | |
| 3 | 33-367 | GROMMET (0.625 id) | 1 | |
| 4 | 33-2110 | GROMMET (1.00 id) | 1 | |
| 5 | 33-4140 | GASKET - rear | 1 | |
| 6 | 33-4141 | GASKET - side | 2 | |
| 7 | 41-8594 | HARNESS - evaporator | 1 | |
| 55-2332 | BANDWRAP | A/R | ||
| 8 | 41-7567 | MOTOR - fan (12V) | 2 | |
| 41-7568 | MOTOR - fan (24V) | 2 | ||
| 55-7172 | SCREW - motor | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-6995 | FLATWASHER | 8 | ||
| 9 | 78-1541 | FAN - evaporator | 2 | |
| 10 | 41-8171 | SENSOR | 2 | |
| 11 | 98-7149 | COVER - evaporator | 1 | |
| 55-7172 | SCREW - cover (M6 x 16) | 8 | ||
| 55-5970 | WASHER - sealing | 8 | ||
| 55-7407 | SCREW - cover (M5 x 16) | A/R | ||
| 55-6996 | LOCKWASHER | A/R | ||
| 55-6995 | FLATWASHER | A/R | ||
| 12 | 92-4843 | COVER - fan | 1 | |
| 55-7407 | SCREW - cover | 8 | ||
| 55-5970 | LOCKWASHER | 8 | ||
| 13 | 92-4844 | GRILLE | 2 | |
| 55-7407 | SCREW - grille | 8 | ||
| 55-7354 | NUT | 8 | ||
| 14 | 92-4842 | BRACKET - cover | 1 | |
| 55-7407 | SCREW - bracket | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 15 | 33-4142 | INSULATION | 1 |
