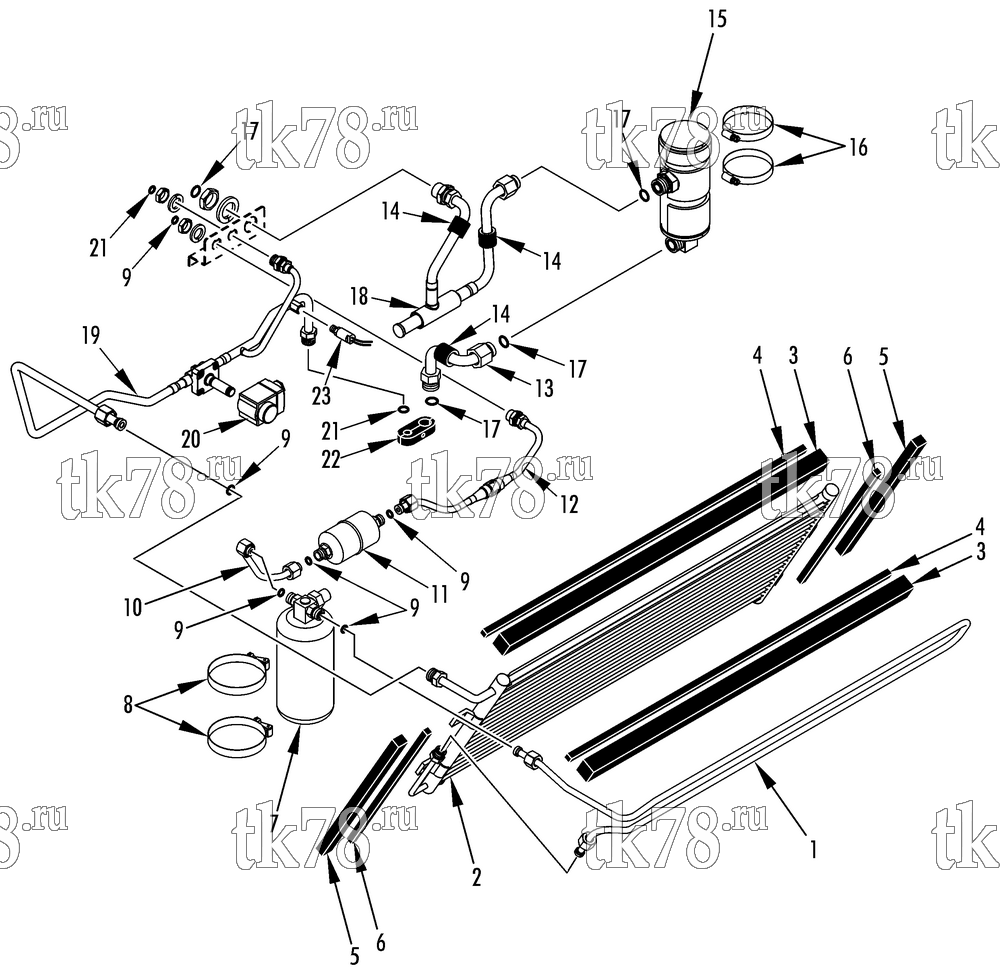

Установкa Thermo King KV-300 II MAX схема CONDENSER REFRIGERATION (KV300 II MAX 30 & 50) – 233H3
Обновление от: 12/25/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-3748 | TUBE - coil to receiver tank | 1 | |
| 55-8268 | SHOULDER - o-ring seal (#6) | 2 | ||
| 55-8267 | NUT - o-ring seal (#6) | 2 | ||
| 2 | 67-2117 | COIL - condenser | 1 | |
| 92-5202 | CLIP - harness | 1 | ||
| 55-7341 | SCREW - coil | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 3 | 33-4340 | INSULATION - foam | 2 | |
| 4 | 33-4341 | INSULATION - foam | 2 | |
| 5 | 33-4342 | INSULATION - foam | 2 | |
| 6 | 33-4132 | INSULATION - foam | 2 | |
| 7 | 61-3125 | TANK - receiver | 1 | |
| 8 | 55-7800 | CLAMP - receiver | 2 | |
| 9 | 33-1015 | O-RING (#6) | 7 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 10 | 61-3749 | TUBE - tank receiver to dehydrator | 1 | |
| 55-8268 | SHOULDER - o-ring seal (#6) | 1 | ||
| 55-8267 | NUT - o-ring seal (#6) | 1 | ||
| 11 | 61-3124 | DEHYDRATOR (includes o-rings) | 1 | |
|
10-61-3853 | Дегидратор, V-400/500/600 | 1 280 ₽ |
|
| 55-1636 | CLAMP - dehydrator | 1 | ||
| 12 | 61-4586 | TUBE - dehydrator to evaporator | 1 | |
| 66-5763 | VALVE - check | 1 | ||
| 61-434 | ADAPTER - o-ring seal (#6) | 1 | ||
| 55-8268 | SHOULDER - o-ring seal (#6) | 1 | ||
| 55-8267 | NUT - o-ring seal (11/16-16) | 1 | ||
| 13 | 61-3751 | TUBE - accumulator to compressor | 1 | |
| 55-6400 | ADAPTER (brazed 1-14) | 1 | ||
| 14 | 92-5943 | INSULATION (0.750 in id) | A/R | |
| 15 | 61-3126 | TANK - accumulator | 1 | |
| 16 | 55-2688 | CLAMP - accumulator | 2 | |
| 17 | 33-2115 | O-RING (5/8 id) | 4 | |
| 18 | 61-4587 | TUBE - accumulator to evaporator | 1 | |
| 22-1073 | REGULATOR - suction pressure | 1 | ||
| 61-422 | FITTING - o-ring seal (w/ nut) | 1 | ||
| 55-9929 | NUT - o-ring seal (#10) | 1 | ||
| 19 | 61-4585 | TUBE - discharge | 1 | |
| 66-9032 | VALVE - condenser inlet (see 193A5) | 1 | ||
| 55-8951 | SHOULDER - o-ring | 1 | ||
| 55-8950 | NUT - o-ring | 1 | ||
| 55-6403 | ADAPTER | 1 | ||
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 20 | 41-5047 | COIL - valve (12V) | 1 | |
| 41-5051 | COIL - valve (24V) | 1 | ||
| 21 | 33-566 | O-RING (1/2 id) | 2 | |
| 22 | 91-3171 | CLAMP - tube (1/2 in id/3/4 in id) | 2 | |
| 55-2239 | CLAMP (0.375 dia) | 2 | ||
| 55-3065 | CLAMP (0.500 dia) | 1 | ||
| 55-7027 | SCREW - clamp (M6 x 45) | 1 | ||
| 55-7172 | SCREW - clamp (M6 x 16) | 3 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 23 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
