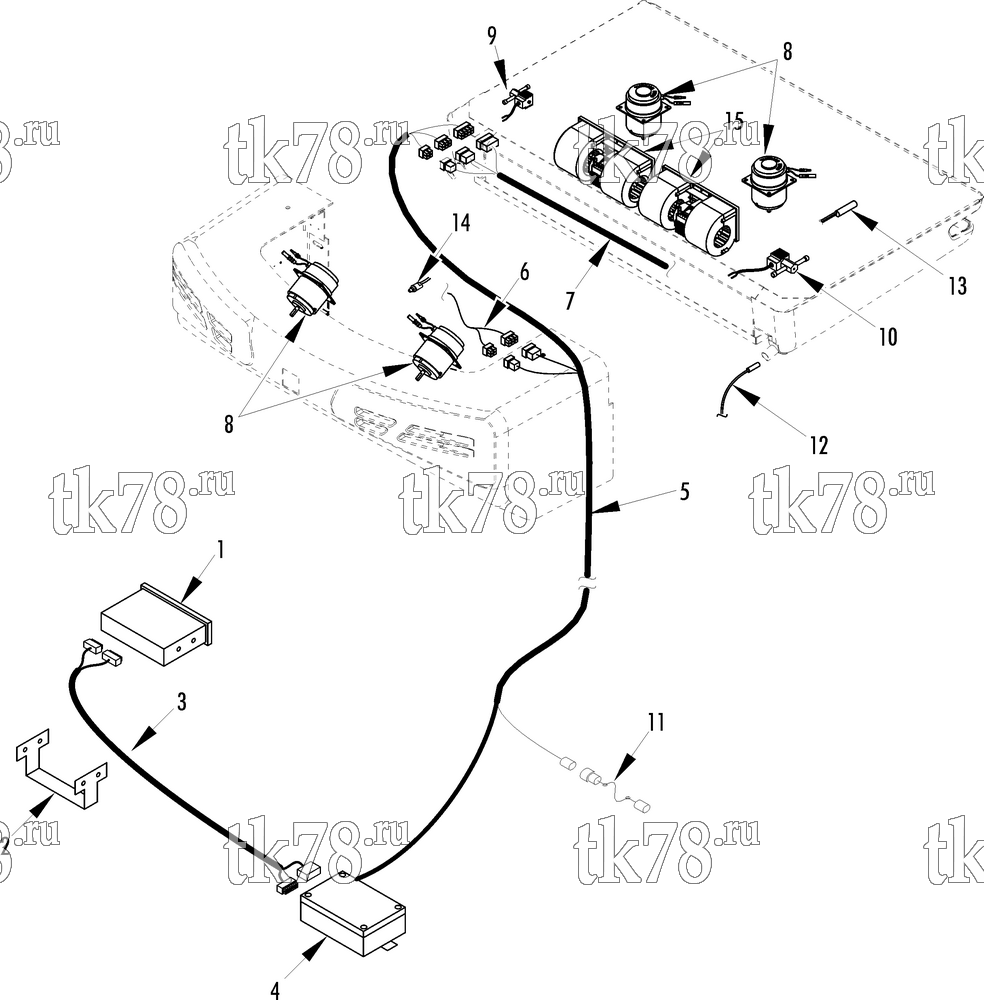

Установкa Thermo King KV-300 II MAX схема ELECTRICAL COMPONENTS – 233H2
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8167 | CONTROLLER | 1 | |
| 2 | 92-5937 | BRACKET | 1 | |
| 3 | 41-8169 | HARNESS - controller to relay box (before 11/09) | 1 | |
| 41-6966 | CONNECTOR (14-pin) | 2 | ||
| 41-6967 | CONNECTOR (16-pin) | 2 | ||
| 41-9189 | HARNESS - controller to relay box (after 10/09) | 1 | ||
| 4 | 41-8168 | BOX - relay (12V) | 1 | |
| 41-8175 | BOX - relay (24V) | 1 | ||
| 41-2978 | FUSE (20 amp 12V units) | 5 | ||
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 44-9758 | FUSE (10 amp 24V units) | 5 | ||
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 5 | 41-8595 | HARNESS - main | 1 | |
| 6 | 41-8173 | HARNESS - condenser (10 & 20) | 1 | |
| 41-8552 | HARNESS - condenser (30 & 50) | 1 | ||
| 7 | 41-8594 | HARNESS - evaporator (for 41-7567 & 41-7568 motors) | 1 | |
| 41-9295 | HARNESS - evaporator (for 78-1730 & 78-1731 blowers) | 1 | ||
| 8 | 41-7567 | MOTOR - condenser/evaporator (12V) | 4 | |
| 41-7568 | MOTOR - condenser/evaporator (24V) | 4 | ||
| 9 | 61-3132 | VALVE - liquid (12V) | 1 | |
| 61-3383 | VALVE - liquid (24V) | 1 | ||
| 10 | 61-3192 | VALVE - defrost (evap, 12V) | 1 | |
| 61-3387 | VALVE - defrost (evap, 24V) | 1 | ||
| 11 | 44-9924 | FUSE (40 amp) | 1 | |
| 12 | 41-9627 | HEATER - evap drain (12V) | 2 | |
| 41-3156 | HEATER - evap drain (24V) | 2 | ||
| 13 | 41-8171 | SENSOR - temperature | 2 | |
| 14 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 15 | 78-1730 | BLOWER - evaporator (24V) | 1 | |
| 78-1731 | BLOWER - evaporator (12V) | 1 |
