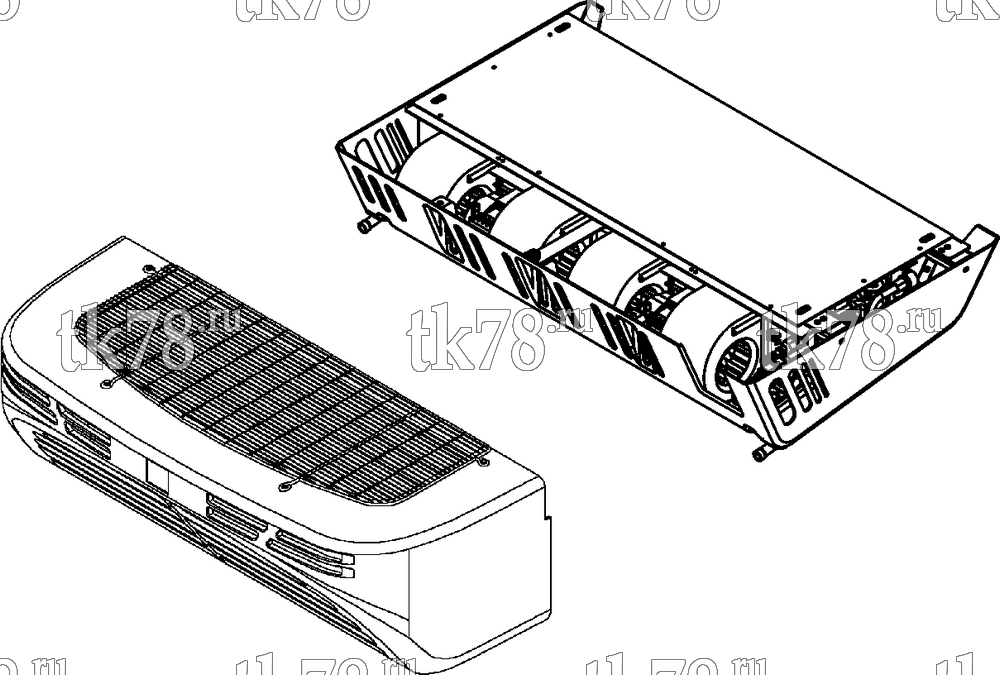

Установкa Thermo King KV-300 II MAX схема KV-300 II MAX REFERENCE SHEET – 13U87
Обновление от: 1/11/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 900245 | System - KV300 II MAX 10 & 20 | 9/09 | ||
| 901059 | System - KV300 II MAX 30 & 50 | 9/09 | ||
| 085419 | Evaporator - KV300 II MAX | 9/09 | ||
| 085418 | Condenser - KV300 II MAX 10 & 20 | 9/09 | ||
| 085466 | Condenser - KV300 II MAX 30 & 50 | 9/09 | ||
| 085420 | 12V | 9/09 | ||
| 085421 | 24V | 9/09 | ||
| 085464 | 12V KV300 II Heating | 9/09 | ||
| 085465 | 24V KV300 II Heating | 9/09 | ||
| 085480 | Evaporator - KV300 | 1/10 | ||
| 700303 | Compressor - TM16-XD (24VDC) | 9/09 | ||
| 700368 | Hose Kit (TK-2000 Hoses & Fittings) | 9/09 | ||
| 700369 | Harness Kit - KV300 II MAX | 9/09 | ||
| 700374 | Controller Kit for Common | 9/09 | ||
| 700375 | Controller Kit for Common | 9/09 | ||
| 700596 | KV300 Standby Kit - 220/1/50 12V | 9/09 | ||
| 700597 | KV300 Standby Kit - 220/1/50 24V | 9/09 | ||
| 700598 | KV300 Standby Kit - 220/1/60 12V | 9/09 | ||
| 700599 | KV300 Standby Kit - 220/1/60 24V | 9/09 | ||
| 700670 | KV300 Standby Kit - 380/3/50 12V | 9/09 | ||
| 700671 | KV300 Standby Kit - 380/3/50 24V | 9/09 | ||
| 700672 | KV300 Standby Kit - 230/3/60 12V | 9/09 | ||
| 700673 | KV300 Standby Kit - 230/3/60 24V | 9/09 | ||
| 700690 | KV300 Standby Kit - 230/380 24V | 9/09 | ||
| 700691 | KV300 Standby 230-380/3/50 24V | 9/09 | ||
| 700869 | Standby Hoses (Codan Fittings) | 9/09 | ||
| 701669 | Hose Kit | 9/09 | ||
| 701247 | Plug & Receptacle 230V | 9/09 | ||
| 701246 | Plug & Receptacle 380V | 9/09 | ||
| 701475 | Compressor - TM16-XD VG (24V) | 9/09 | ||
| 701476 | Compressor - TM16-XD VG (12V) | 9/09 | ||
| 701916 | KV300 Standby 220V 1PH , 12V | 1/10 | ||
| 701917 | KV300 Standby 220V 1PH , 24V | 1/10 | ||
| 720766 | Compressor - TM16-XD (12V) | 9/09 | ||
| 800114 | Installation Kit - KV300 II MAX (English) | 9/09 | ||
| 800150 | Hose Kit (Codan Fittings) | 9/09 | ||
| 800210 | Installation Kit - KV300 II MAX (Chinese) | 9/09 | ||
| 800463 | Kit Plug & Socket 220V | 1/10 |
