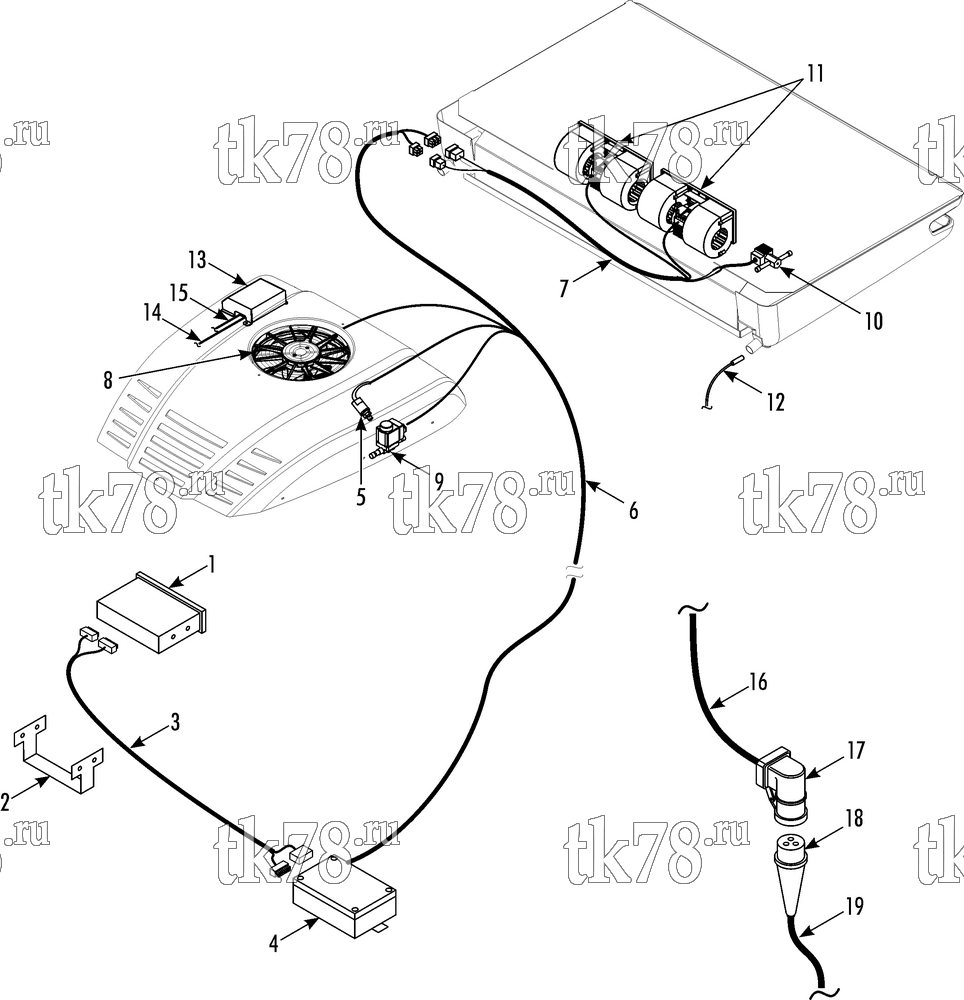

Установкa Thermo King KV-200 схема ELECTRICAL COMPONENTS – 242B1
Обновление от: 9/3/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8167 | CONTROLLER | 1 | |
| 2 | 92-5937 | BRACKET | 1 | |
| 3 | 41-9293 | HARNESS - controller to relay box | 1 | |
| 4 | 41-8168 | BOX - relay (12V) | 1 | |
| 41-8175 | BOX - relay (24V) | 1 | ||
| 41-2978 | FUSE (20 amp 12V units) | 5 | ||
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 44-9344 | FUSE (15 amp 24V units) | 5 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 5 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 6 | 41-9294 | HARNESS - condenser | 1 | |
| 7 | 41-9295 | HARNESS - evaporator | 1 | |
| 8 | 41-9297 | FAN - condenser (12V) | 1 | |
| 41-9296 | FAN - condenser (24V) | 1 | ||
| 9 | 66-9032 | VALVE - solenoid (30 & 50 Max, see 193A5) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 41-5051 | COIL - solenoid valve (24V) | 1 | ||
| 41-5047 | COIL - solenoid valve (12V) | 1 | ||
| 10 | 61-3192 | VALVE - defrost (evap, 12V) | 1 | |
| 61-3387 | VALVE - defrost (evap, 24V) | 1 | ||
| 11 | 78-1731 | BLOWER - evaporator (12V) | 2 | |
| 78-1730 | BLOWER - evaporator (24V) | 2 | ||
| 12 | 41-9627 | HEATER - evap drain (12V) | 2 | |
| 41-3156 | HEATER - evap drain (24V) | 2 | ||
| 13 | NSS | CONTROL BOX (see 230G9) | 1 | |
| 14 | 41-9191 | HARNESS - standby (see 115D14 for connectors) | 1 | |
| 15 | 41-8332 | CABLE (AC 3P 2M) | 1 | |
| 17 | 41-3667 | RECEPTACLE - power (220/1/50, mates w/ 41-972) | 1 | |
| 18 | 41-972 | PLUG - power (220/1/50, mates w/ 41-3667) | 1 | |
| 19 | 41-3778 | CABLE 3 X 2.5 1KV | A/R |
