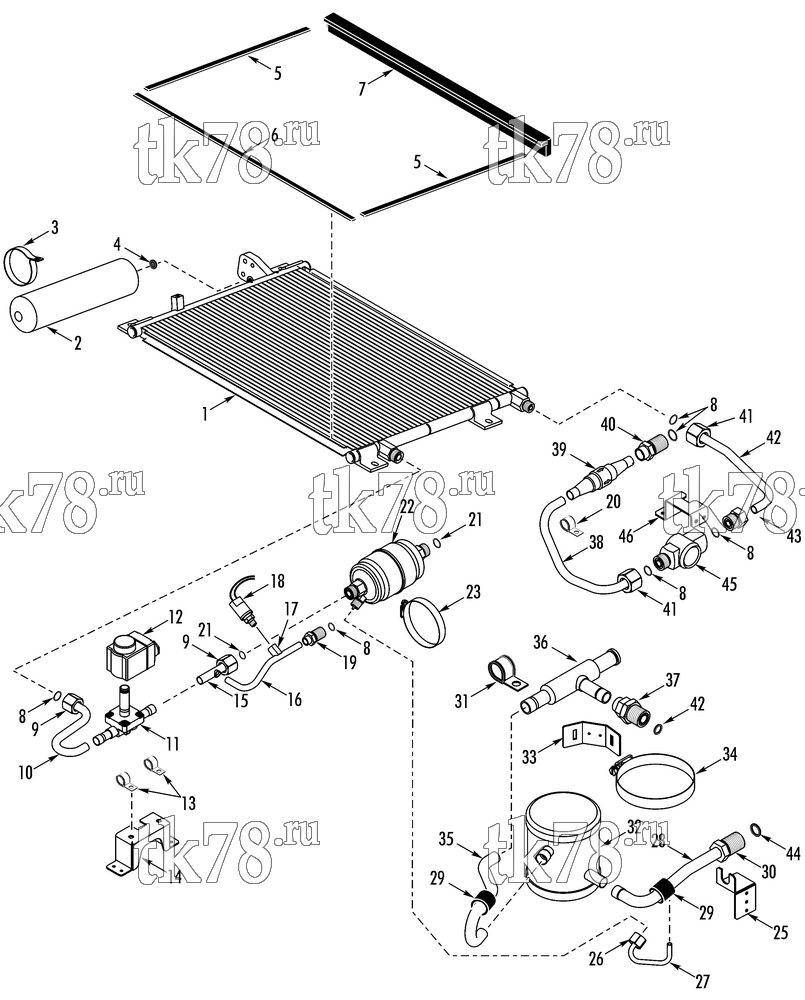

Установкa Thermo King KV-200 схема CONDENSER REFRIGERATION (KV200 MAX 30 & 50) – 242A8
Обновление от: 12/25/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2488 | COIL - condenser | 1 | |
| 2 | 61-5028 | DRIER | 1 | |
| 3 | 51-1992 | CLAMP - drier | 1 | |
| 55-6994 | SCREW - clamp | 1 | ||
| 4 | 33-566 | O-RING (1/2 id) | 2 | |
| 5 | 33-4591 | GASKET - coil | 2 | |
| 6 | 33-4592 | GASKET - coil | 1 | |
| 7 | 33-4593 | GASKET - coil | 1 | |
| 8 | 33-1015 | O-RING (#6) | 6 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 9 | 55-8950 | NUT - o-ring seal (#6) | 2 | |
| 55-8951 | SHOULDER - o-ring seal (#6) | 2 | ||
| 10 | 61-5029 | TUBE - condenser inlet | 1 | |
| 11 | 66-9032 | VALVE - solenoid (see 193A5) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 12 | 41-5047 | COIL - solenoid valve (12V) | 1 | |
| 41-5051 | COIL - solenoid valve (24V) | 1 | ||
| 13 | 55-3026 | CLAMP (.625 dia) | 2 | |
| 55-7407 | SCREW - clamp | 2 | ||
| 55-8375 | NUT - captive | 2 | ||
| 14 | 92-8208 | BRACKET - valve | 1 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 15 | 61-5030 | TUBE - separator to valve | 1 | |
| 16 | 61-5031 | TUBE - defrost | 1 | |
| 17 | 55-9509 | ADAPTER - hpco | 1 | |
| 18 | 44-8064 | SWITCH - hpco (see 115D14 for connectors) | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 19 | 61-434 | ADAPTER - o-ring seal (#6) | 1 | |
| 20 | 55-3065 | CLAMP (.500 dia) | 1 | |
| 55-7407 | SCREW - clamp | 1 | ||
| 21 | 33-566 | O-RING (1/2 id) | 2 | |
| 22 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 370 ₽ |
|
| 23 | 55-6225 | CLAMP - oil separator | 1 | |
| 24 | 33-1461 | O-RING (5/16 id) | 1 | |
| 25 | 92-8209 | BRACKET - accumulator tube | 1 | |
| 55-5130 | RIVET | 3 | ||
| 26 | 55-8457 | NUT | 1 | |
| 55-8456 | SHOULDER | 1 | ||
| 27 | 61-5032 | TUBE - oil line | 1 | |
| 28 | 61-5033 | TUBE - accumulator outlet | 1 | |
| 29 | 92-5943 | INSULATION (.750 id) | 2 | |
| 30 | 61-422 | FITTING - o-ring seal (w/ nut) | 1 | |
| 31 | 55-3234 | CLAMP (1.125 dia) | 1 | |
| 55-7407 | SCREW - clamp | 1 | ||
| 32 | 61-5034 | ACCUMULATOR | 1 | |
| 33 | 92-8210 | BRACKET - accumulator | 1 | |
| 55-5130 | RIVET | 2 | ||
| 34 | 55-5921 | CLAMP - accumulator (4.25 - 6.00 dia) | 1 | |
| 35 | 61-5035 | TUBE - accumulator inlet | 1 | |
| 36 | 22-1073 | VALVE - pressure regulator | 1 | |
| 37 | 61-5036 | FITTING - o-ring seal (w/ nut) | 1 | |
| 38 | 61-5038 | TUBE - liquid | 1 | |
| 39 | 66-5763 | VALVE - check | 1 | |
| 40 | 51-1993 | NUT - o-ring seal (#6) | 1 | |
| 41 | 55-8267 | NUT - o-ring seal (#6) | 2 | |
| 55-8268 | SHOULDER - o-ring seal (#6) | 2 | ||
| 42 | 61-5037 | TUBE - condenser outlet | 1 | |
| 43 | 55-6399 | ADAPTER | 1 | |
| 44 | 33-2115 | O-RING (#10) | 1 | |
| 45 | 61-5144 | SIGHT GLASS | 1 | |
| 46 | 92-8211 | BRACKET - sight glass | 1 | |
| 55-5130 | RIVET | 4 |
