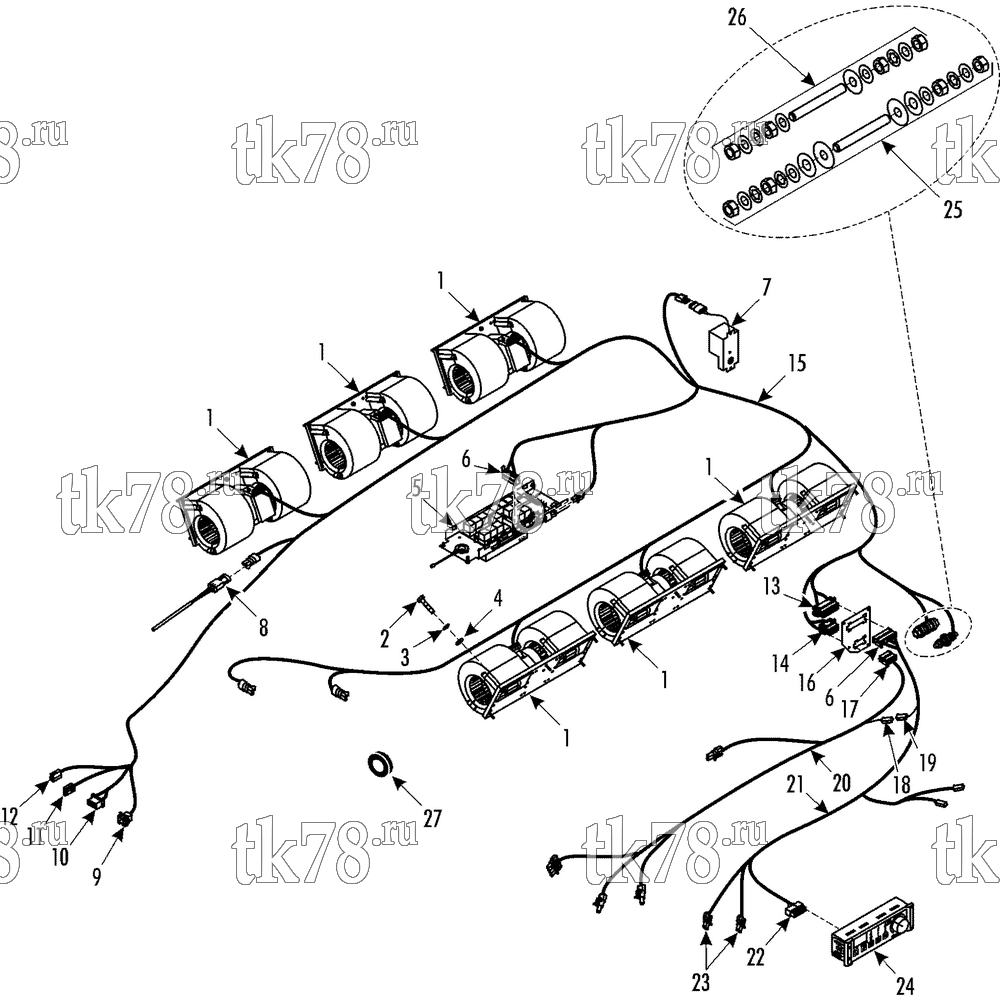

Установкa Thermo King KRT 1000 схема ELECTRICAL COMPONENTS - EVAPORATOR – 208H2
Обновление от: 9/8/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1297 | BLOWER - evaporator | 6 | |
| 2 | 55-7696 | SCREW - blower | 30 | |
| 3 | 55-7031 | LOCKWASHER | 30 | |
| 4 | 55-7697 | FLATWASHER | 30 | |
| 5 | NSS | PANEL - control (see 194D2) | 1 | |
| 6 | 41-3856 | CONNECTOR (18-pin, female) | 2 | |
| 41-4247 | RECEPTACLE - female | 8 | ||
| 41-4248 | RECEPTACLE - female | 2 | ||
| 7 | 41-2420 | MOTOR - geared (see 201H1) | 1 | |
| 8 | 41-4157 | SENSOR - temperature | 1 | |
| 9 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 41-2779 | PIN (male) | 4 | ||
| 10 | 41-3862 | CONNECTOR (6-pin, receptacle) | 1 | |
| 44-5066 | TERMINAL - fingrip | 6 | ||
| 11 | 41-3493 | CONNECTOR (3-pin, receptacle) | 1 | |
| 44-5066 | TERMINAL - fingrip | 2 | ||
| 12 | 41-2891 | CONNECTOR (2-pin, male) | 1 | |
| 44-5066 | TERMINAL - fingrip | 2 | ||
| 13 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 41-2779 | PIN (male) | 14 | ||
| 41-2785 | PIN (male) | 4 | ||
| 14 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 41-2779 | PIN (male) | 14 | ||
| 41-2785 | PIN (male) | 4 | ||
| 15 | 41-6997 | HARNESS - evaporator | 1 | |
| 41-3968 | BOARD - pc | 1 | ||
| 44-5763 | DIODE - rectifier | 1 | ||
| 16 | 92-2957 | PLATE - electric | 1 | |
| 55-3010 | RIVET - plate | 4 | ||
| 17 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 41-4248 | RECEPTACLE - female | 6 | ||
| 18 | 44-6381 | CONNECTOR (1-pin, female) | 1 | |
| 19 | 44-6264 | CONNECTOR (1-pin, male) | 1 | |
| 20 | 41-6040 | HARNESS - unit to compressor (for connectors see 115D14) | 1 | |
| 21 | 41-4313 | HARNESS - unit to driver panel (for connectors see 115D14) | 1 | |
| 22 | 41-661 | CONNECTOR (14 terminal) | 1 | |
| 41-1807 | TERMINAL | 12 | ||
| 23 | 44-6381 | CONNECTOR (1-pin) | 1 | |
| 24 | 41-6998 | SMARTAIRE - assembly | 1 | |
| 25 | 55-9367 | STUD - positive | 1 | |
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-8631 | WASHER (nylon) | 1 | ||
| 55-8955 | WASHER - bright | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 55-448 | FLATWASHER | 2 | ||
| 26 | 55-9367 | STUD - negative | 1 | |
| 55-8955 | WASHER - bright | 4 | ||
| 55-8568 | LOCKWASHER | 1 | ||
| 305-1653 | NUT | 4 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 27 | 33-315 | GROMMET (1.312 Id) | 1 | |
| 33-1371 | GROMMET (1.703 id) | 2 |
