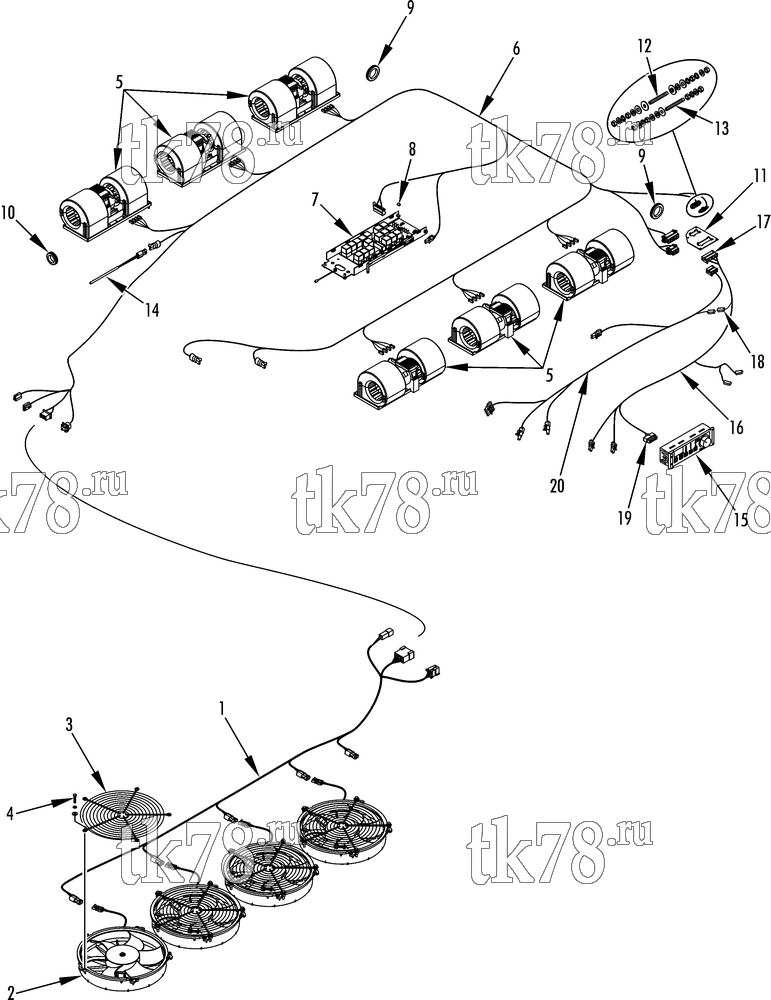

Установкa Thermo King KRS схема ELECTRICAL COMPONENTS (007234) – 217B6
Обновление от: 8/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-7387 | HARNESS - condenser (see 233A2) | 1 | |
| 2 | 78-1530 | FAN - condenser | 4 | |
| 3 | 98-7561 | GUARD - fan | 4 | |
| 4 | 55-7372 | SCREW - guard & fan | 20 | |
| 55-9190 | LOCKWASHER (rip) | 20 | ||
| 55-8893 | FLATWASHER | 20 | ||
| 5 | 78-1531 | BLOWER - evaporator | 6 | |
| 55-7696 | SCREW - blower | 30 | ||
| 55-7031 | LOCKWASHER | 30 | ||
| 55-7697 | FLATWASHER | 30 | ||
| 6 | 41-6997 | HARNESS - evaporator (before 3/06) | 1 | |
| 41-8508 | HARNESS - evaporator (3/06 & after, see 233A1) | 1 | ||
| 7 | NSS | PANEL - relay (see 214F8) | 1 | |
| 8 | 55-8718 | SPACER | 2 | |
| 9 | 33-1371 | GROMMET (1.703 id) | 2 | |
| 10 | 33-315 | GROMMET (1.312 id) | 1 | |
| 11 | 92-2957 | PLATE - terminals (before 3/06) | 1 | |
| 92-7331 | PLATE - terminals (3/06 & after) | 1 | ||
| 55-3010 | RIVET - plate | 4 | ||
| 12 | 55-9367 | STUD - positive terminal | 1 | |
| 55-448 | FLATWASHER | 2 | ||
| 55-8631 | WASHER - nylon (w/ shoulder) | 1 | ||
| 55-8693 | WASHER - nylon | 1 | ||
| 55-8955 | WASHER - bright | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 13 | 55-9367 | STUD - negative terminal | 1 | |
| 55-8955 | WASHER - bright | 4 | ||
| 55-3238 | LOCKWASHER (int th) | 2 | ||
| 55-8568 | LOCKWASHER (int/ext th) | 1 | ||
| 305-1653 | NUT | 4 | ||
| 14 | 41-4157 | SENSOR - temperature | 1 | |
| 15 | 41-6998 | SMARTAIRE ASSEMBLY | 1 | |
| 41-7211 | CLIMAAIRE I ASSEMBLY | 1 | ||
| 16 | 41-4313 | HARNESS - drivers panel (12 M, see 232G1) | 1 | |
| 41-4512 | HARNESS - drivers panel (18.3 M, see 232G1) | 1 | ||
| 17 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 41-4247 | RECEPTACLE - female | 12 | ||
| 41-4248 | RECEPTACLE - female | 2 | ||
| 18 | 44-6264 | CONNECTOR (1-pin, male) | 1 | |
| 19 | 41-661 | CONNECTOR (14-pin) | 1 | |
| 41-1807 | TERMINAL (18-24 ga) | 13 | ||
| 20 | 41-4912 | HARNESS - unit to compressor (for connectors see 115D14) | 1 |
