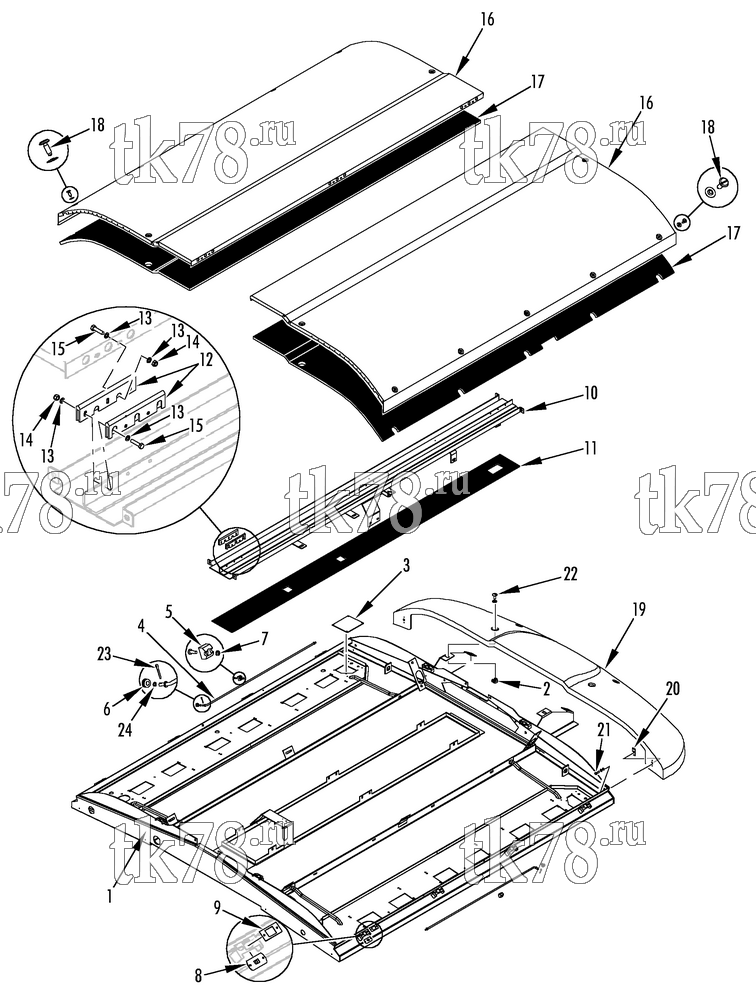

Установкa Thermo King KRS схема EVAPORATOR STRUCTURAL (007269) – 217B4
Обновление от: 3/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7565 | FRAME - evaporator | 1 | |
| 55-7866 | NUT - captive (M4) | 30 | ||
| 55-8375 | NUT - captive (M5) | 14 | ||
| 55-7373 | NUT - captive (M6) | 7 | ||
| 2 | 55-9194 | NUT - captive | 4 | |
| 3 | 92-5803 | BRACKET | 1 | |
| 55-3010 | RIVET - bracket | 4 | ||
| 4 | 92-914 | ROD - cover | 2 | |
| 5 | 91-7386 | CLAMP - rod | 2 | |
| 55-5047 | RIVET - clamp | 2 | ||
| 55-7368 | FLATWASHER | 2 | ||
| 6 | 33-314 | GROMMET - rod | 2 | |
| 7 | 55-6995 | FLATWASHER (6.4 mm) | 2 | |
| 55-7075 | FLATWASHER (M6) | 2 | ||
| 8 | 55-2074 | NUT - speed | 12 | |
| 9 | 91-7625 | LOCKPLATE | 12 | |
| 55-3010 | RIVET - lockplate | 28 | ||
| 10 | 98-7566 | SUPPORT - top | 1 | |
| 55-6997 | NUT - captive (M6) | 4 | ||
| 11 | 33-4325 | INSULATION | 1 | |
| 55-6994 | SCREW - support | 8 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 12 | ||
| 55-7042 | NUT | 4 | ||
| 12 | 91-7098 | HINGE - cover | 6 | |
| 13 | 55-7033 | FLATWASHER | 42 | |
| 14 | 55-7034 | NUT (M5) | 21 | |
| 15 | 55-7036 | SCREW - hinge & cover | 21 | |
| 16 | 98-7567 | COVER - evaporator | 2 | |
| 17 | 33-4327 | INSULATION - cover | 2 | |
| 18 | 55-3343 | FASTENER - cover | 14 | |
| 55-7112 | WASHER - special | 14 | ||
| 19 | 98-7547 | SPOILER - FRP | 1 | |
| 20 | 92-1217 | NUTSTRIP | 2 | |
| 55-3035 | RIVET | 4 | ||
| 21 | 55-6994 | SCREW - spoiler to frame | 2 | |
| 55-7170 | LOCKWASHER | 2 | ||
| 55-9190 | LOCKWASHER - rip | 2 | ||
| 22 | 55-9306 | SCREW - spoiler | 4 | |
| 51-307 | RING - neoprene | 4 | ||
| 23 | 55-3458 | PIN - cotter | 2 | |
| 24 | 55-7368 | FLATWASHER | 2 |
