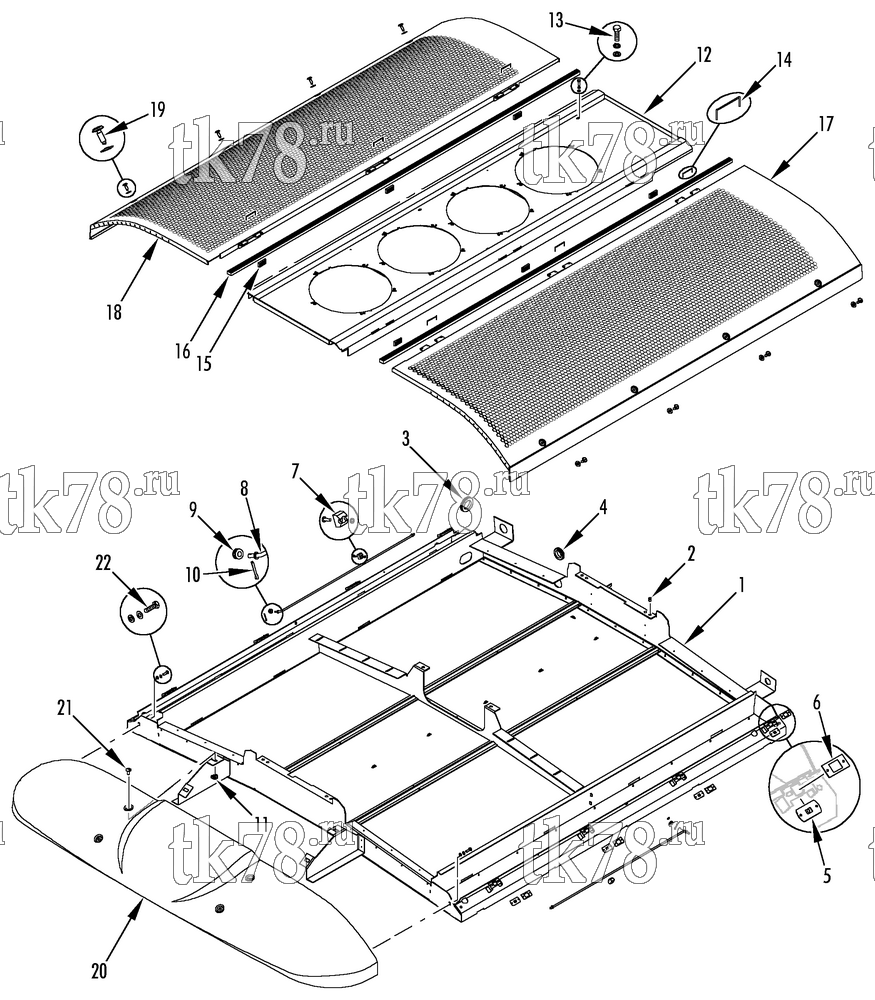

Установкa Thermo King KRS схема CONDENSER STRUCTURAL (007270) – 217A4
Обновление от: 12/16/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7543 | FRAME - condenser | 1 | |
| 2 | 55-7373 | NUT - captive | 7 | |
| 3 | 33-1770 | GROMMET (1.50 in id) | 1 | |
| 4 | 33-489 | GROMMET (1.25 in id) | 1 | |
| 5 | 55-2074 | NUT - speed | 8 | |
| 6 | 91-7625 | LOCKPLATE | 8 | |
| 55-3010 | RIVET - lockplate | 16 | ||
| 7 | 91-7386 | CLAMP - tube | 2 | |
| 55-7075 | FLATWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 55-5047 | RIVET | 2 | ||
| 8 | 92-914 | ROD - cover | 2 | |
| 9 | 33-314 | GROMMET (0.31 id) | 2 | |
| 10 | 55-3458 | PIN - cotter | 2 | |
| 55-6995 | FLATWASHER | 2 | ||
| 11 | 55-9194 | NUT - captive | 4 | |
| 12 | 98-7555 | PLATE - top | 1 | |
| 98-8152 | PLATE - top (SPAL motor AP) | 1 | ||
| 55-7373 | NUT - captive | 20 | ||
| 13 | 55-6994 | SCREW - plate | 6 | |
| 55-6996 | LOCKWASHER | 6 | ||
| 55-6995 | FLATWASHER | 6 | ||
| 14 | 91-9877 | ROD - grille | 6 | |
| 15 | 33-3531 | STRIP - neoprene | A/R | |
| 16 | 33-4306 | INSULATION | 2 | |
| 17 | 98-7545 | GRILLE | 1 | |
| 18 | 98-7546 | GRILLE | 1 | |
| 19 | 55-3343 | FASTENER - grille | 8 | |
| 55-7112 | WASHER - special | 8 | ||
| 20 | 98-7547 | SPOILER | 1 | |
| 92-1217 | NUTSTRIP | 2 | ||
| 55-3035 | RIVET | 4 | ||
| 21 | 55-9306 | SCREW - spoiler | 4 | |
| 51-307 | RING - neoprene | 4 | ||
| 22 | 55-6994 | SCREW - spoiler | 2 | |
| 55-9190 | WASHER - rip | 2 | ||
| 55-7170 | LOCKWASHER | 2 |
