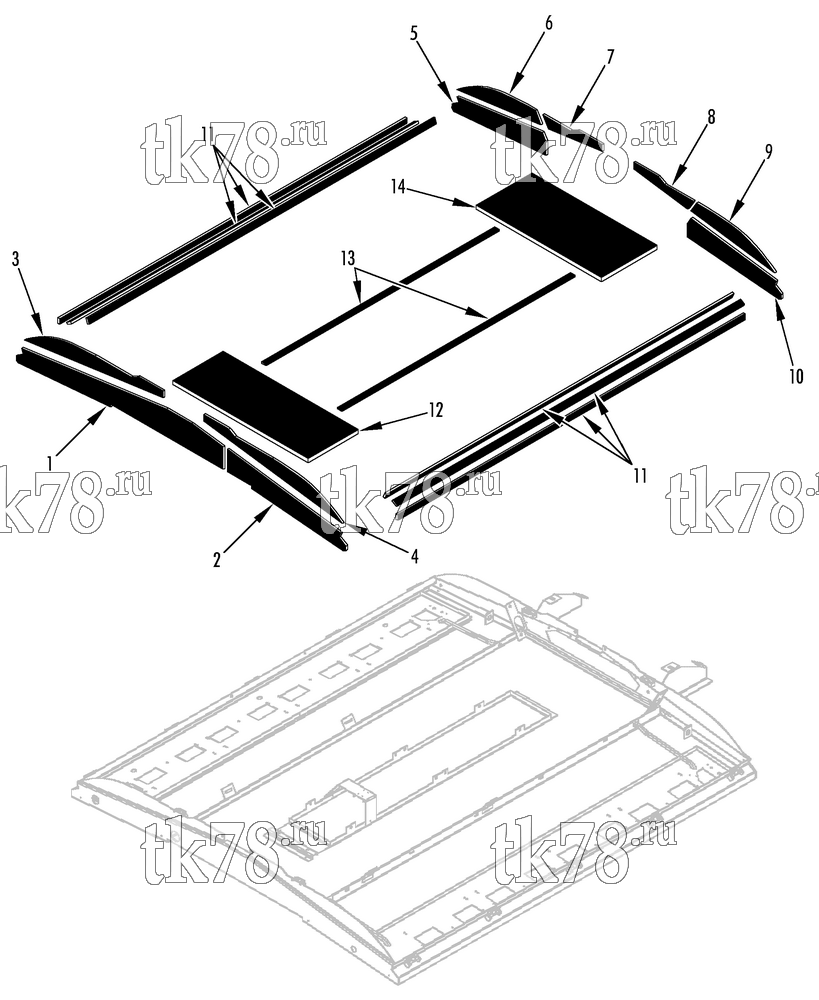

Установкa Thermo King KRS схема EVAPORATOR INSULATION (007278) – 214F6
Обновление от: 7/12/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-4310 | INSULATION - panel | 1 | |
| 2 | 33-4311 | INSULATION - panel | 1 | |
| 3 | 33-4312 | INSULATION - panel | 1 | |
| 4 | 33-4313 | INSULATION - panel | 1 | |
| 5 | 33-4314 | INSULATION - panel | 1 | |
| 6 | 33-4315 | INSULATION - panel | 1 | |
| 7 | 33-4316 | INSULATION - panel | 1 | |
| 8 | 33-4317 | INSULATION - panel | 1 | |
| 9 | 33-4318 | INSULATION - panel | 1 | |
| 10 | 33-4319 | INSULATION - panel | 1 | |
| 11 | 33-4320 | INSULATION | 6 | |
| 12 | 92-5799 | FILTER - air | 1 | |
| 13 | 33-4321 | INSULATION - panel | 2 | |
| 14 | 92-5800 | FILTER - air | 1 |
