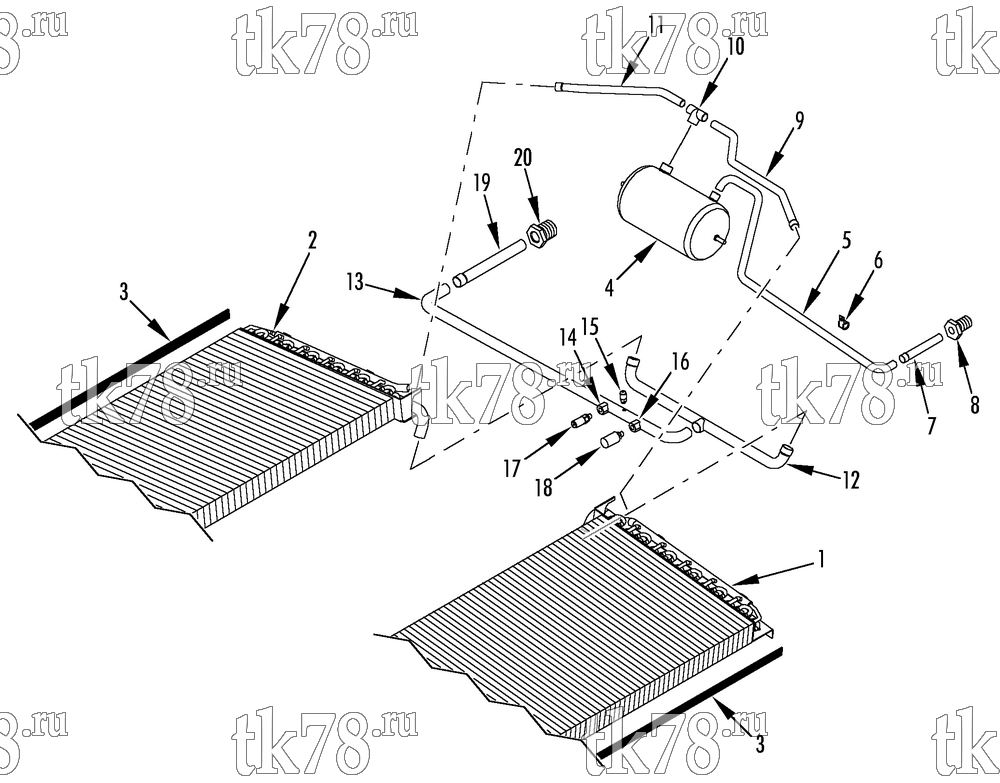

Установкa Thermo King KRS схема CONDENSER REFRIGERATION COMPONENTS (007270 & 007272) – 214F4
Обновление от: 3/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2232 | COIL - condenser (right) | 1 | |
| 2 | 67-2233 | COIL - condenser (left) | 1 | |
| 55-5130 | RIVET - coil | 36 | ||
| 3 | 33-4307 | INSULATION - coil | 2 | |
| 4 | 67-1520 | TANK - receiver | 1 | |
| 55-7339 | NUT - tank | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 5 | 61-3663 | TUBE - output | 1 | |
| 6 | 55-3026 | CLAMP - tube | 1 | |
| 55-6994 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 7 | 61-3664 | TUBE - receiver to bulkhead | 1 | |
| 8 | 51-1556 | ADAPTER - bulkhead (ORS) | 1 | |
| 9 | 61-3665 | TUBE - coil to tee | 1 | |
| 10 | 55-7065 | TEE (5/8 x 5/8 x 3/4) | 1 | |
| 11 | 61-3666 | TUBE - coil to tee | 1 | |
| 12 | 61-3667 | TUBE - input to coils | 1 | |
| 13 | 61-3668 | TUBE - input | 1 | |
| 14 | 55-7535 | FITTING - saddle | 1 | |
| 15 | 61-2059 | VALVE - rework | 1 | |
| 16 | 66-4553 | FITTING - saddle (see 119G12) | 1 | |
| 17 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 18 | 41-5220 | SWITCH - high pressure cutout (R134a) | 1 | |
| 41-5764 | SWITCH - high pressure cutout (R407c) | 1 | ||
| 19 | 61-3669 | TUBE - input to bulkhead | 1 | |
| 20 | 51-1557 | ADAPTER - bulkhead (ORS) | 1 |
