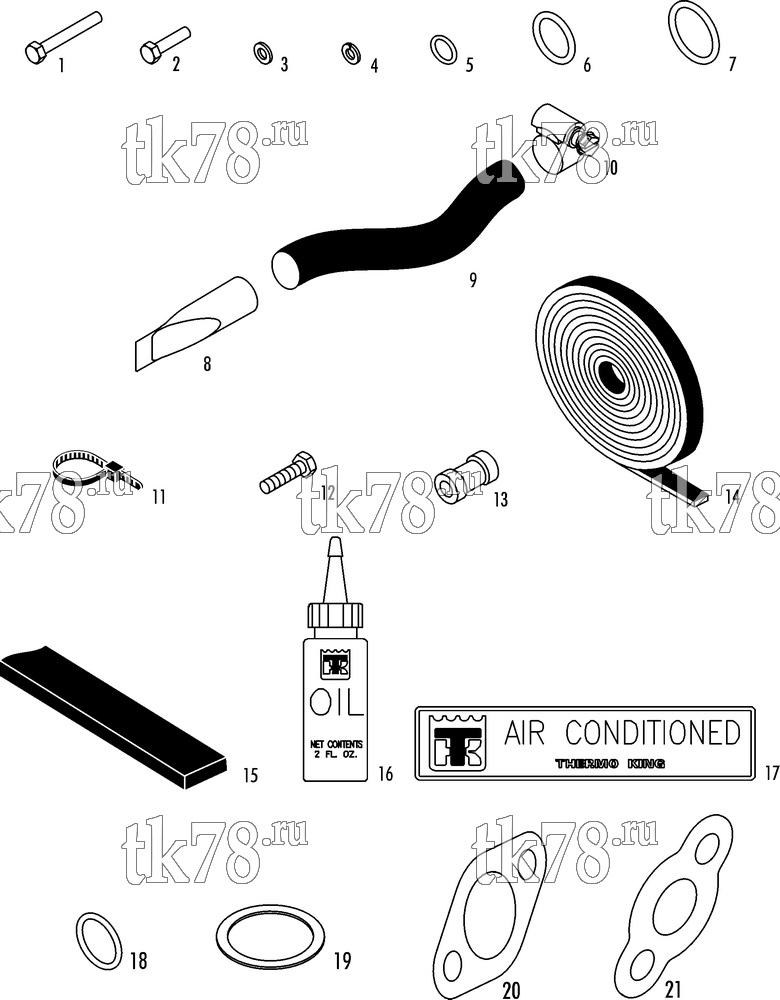

Установкa Thermo King KRS схема INSTALLATION KIT (800026) – 209D4
Обновление от: 9/8/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-7035 | SCREW (M6 x 25) | 4 | |
| 2 | 55-7027 | SCREW (M6 x 45) | 2 | |
| 3 | 55-7075 | FLATWASHER (M6) | 6 | |
| 4 | 55-7170 | LOCKWASHER (M6) | 6 | |
| 5 | 33-1223 | O-RING | 2 | |
| 6 | 33-3165 | O-RING (30 mm od) | 2 | |
| 7 | 33-3166 | O-RING (36.5 mm od) | 1 | |
| 8 | 66-1273 | VALVE - check | 4 | |
| 9 | 91-9006 | HOSE | A/R | |
| 10 | 55-6726 | CLAMP | 4 | |
| 11 | 55-2330 | BANDWRAP (1.75 dia) | 4 | |
| 12 | 55-5427 | SCREW (M10 x 1.5) | 2 | |
| 13 | 305-1655 | SPACER | 2 | |
| 14 | 203-391 | SEALER - tape | A/R | |
| 15 | 33-3531 | STRIP - neoprene (37.5 ft) | A/R | |
| 16 | 203-526 | OIL - compressor (bottle) | 1 | |
| 17 | 99-6884 | NAMEPLATE - TK Air Conditioned | 1 | |
| 18 | 51-307 | RING - neoprene | 6 | |
| 19 | 33-3191 | GASKET - flat | 2 | |
| 20 | 33-2541 | GASKET - suction | 1 | |
| 21 | 33-2805 | GASKET - discharge | 1 | |
|
