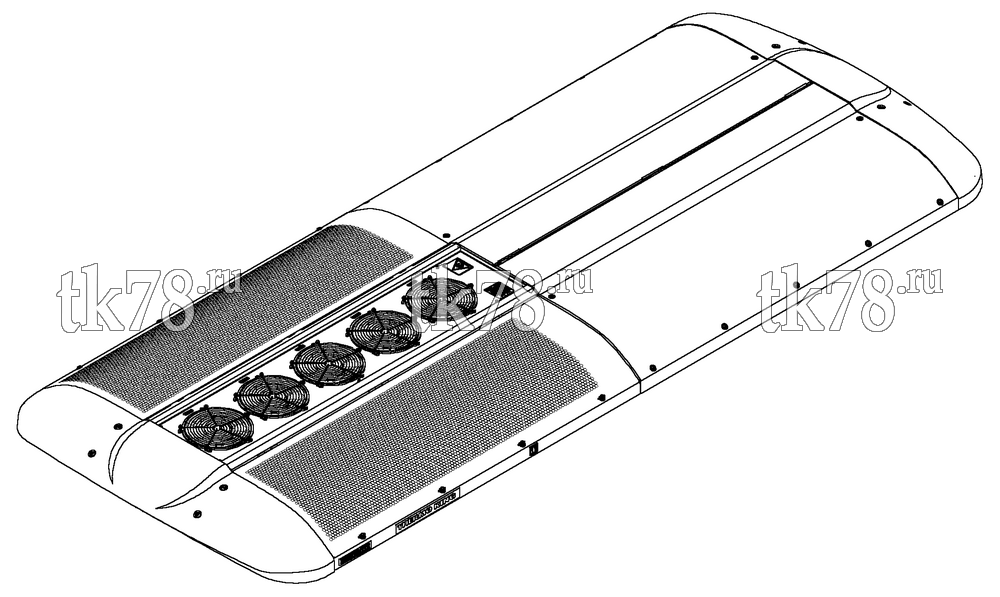

Установкa Thermo King KRS схема KRS REFERENCE SHEET – 11U68
Обновление от: 7/12/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 900393 | System - KRS Plus 1000 | 6/06 | ||
| 900394 | System - KRS 1000 R407C 7.5 m | 6/06 | ||
| 900395 | System - KRS City 29 kW | 6/06 | ||
| 900396 | System - KRS Coach 31 kW | 6/06 | ||
| 900397 | System - KRS Coach 28 kW | 6/06 | ||
| 900398 | System - KRS Coach 25 kW | 6/06 | ||
| 007270 | KRS Condenser 1666 mm Coil | 6/06 | ||
| 007272 | KRS Condenser 1666 mm Coil City | 6/06 | ||
| 007273 | KRS Condenser 1400 mm Coil City | 6/06 | ||
| 007274 | KRS Condenser 1400 mm Coil Coach | 6/06 | ||
| 007277 | KRS Evaporator R407C 1400 mm | 6/06 | ||
| 007278 | KRS Evaporator R407C 1400 mm | 6/06 | ||
| 007279 | KRS Evaporator R134a 1400 mm | 6/06 | ||
| 007280 | KRS Evaporator R134a 1400 mm | 6/06 | ||
| 007293 | KRS Evaporator R407C 1400 mm | 6/06 | ||
| 007269 | KRS Evaporator 1650 mm | 6/06 | ||
| 007234 | Electric Assembly 6+4 | 6/06 | ||
| 007235 | Electric Assembly 6+5 | 6/06 | ||
| 007236 | Electric Assembly 8+5 | 6/06 | ||
| 007237 | Electric Assembly 6+4 | 6/06 | ||
| 007238 | Electric Assembly 6+5 | 6/06 | ||
| 007239 | Electric Assembly 8+5 | 6/06 | ||
| 007076 | Kit - Fresh Air Damper | 6/06 | ||
| 008019 | Electric Assembly W/brushless motors | 12/08 | ||
| 099362 | MRT Damper Electric | 6/06 | ||
| 700115 | SmartAIRE w/ Harness 12 m | 6/06 | ||
| 700702 | Compressor - Bitzer 4NFCY, 24V | 6/06 | ||
| 700421 | SmartAIRE w/ Harness 18.3 m | 6/06 | ||
| 715247 | Kit - Muffler, Compressor | 6/06 | ||
| 700107 | Kit - Hose | 6/06 | ||
| 700108 | Kit - Tube Fittings | 6/06 | ||
| 700110 | Kit - Grille Air Filter | 6/06 | ||
| 700477 | Kit - Hose R134a | 6/06 | ||
| 700627 | Compressor - X430-HPC | 12/08 | ||
| 700689 | Kit - Hose Citi RT | 6/06 | ||
| 700780 | Kit - Grille Air Filter | 6/06 | ||
| 701195 | Compressor - Bitzer 4NFCY, 24V | 12/08 | ||
| 719301 | Kit Harness Compressor ClimaAIRE 12 m | 6/06 | ||
| 719305 | Kit - Alternator ClimaAIRE 24V, 150 Amp | 6/06 | ||
| 720171 | Kit - Muffler, Compressor | 12/08 | ||
| 720587 | Compressor - X430-HPC, 24V, PU | 6/06 | ||
| 720591 | Compressor - X430-HPC, 24V, 2B | 6/06 | ||
| 800026 | Kit - Installation for KRT | 6/06 | ||
| 880110 | Kit - Ports for X430 Compressor | 6/06 | ||
| 800186 | Kit - Rubber Plate | 6/06 |
