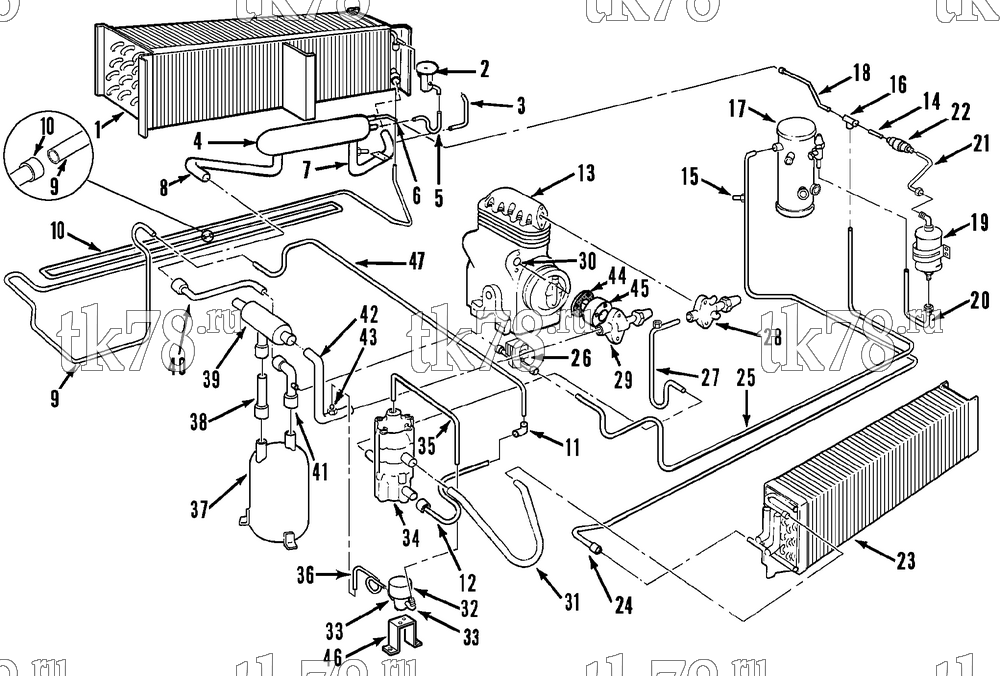

Установкa Thermo King KH-II 30 & 50 схема REFRIGERATION COMPONENTS – 125C5
Обновление от: 8/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1136 | COIL - evaporator (see 125C7) | 1 | |
| 2 | 66-6046 | VALVE - expansion (R12) | 1 | |
| 66-5335 | ELEMENT - power | 1 | ||
| 66-6047 | SCREEN - inlet | 1 | ||
| 66-7770 | VALVE - expansion (R134a) | 1 | ||
| 66-7979 | ELEMENT - power | 1 | ||
| 66-6047 | SCREEN - inlet | 1 | ||
| 66-5993 | VALVE - expansion (R502) | 1 | ||
| 66-5335 | ELEMENT - power | 1 | ||
| 66-6047 | SCREEN - inlet | 1 | ||
| 203-534 | TAPE - insulating | A/R | ||
| 3 | 66-6051 | TUBE - equalizer | 1 | |
| 4 | 67-931 | HEAT EXCHANGER (R12) | 1 | |
| 67-1186 | HEAT EXCHANGER (R134a) | 1 | ||
| 5 | 66-6894 | TUBE - exchanger to expansion valve (R12) | 1 | |
| 66-7267 | TUBE - exchanger to expansion valve (R134a) | 1 | ||
| 6 | 66-6044 | TUBE - liquid inlet | 1 | |
| 7 | 66-6892 | TUBE - suction inlet | 1 | |
| 66-5752 | FITTING - equalizer | 1 | ||
| 8 | 66-6893 | TUBE - suction outlet | 1 | |
| 9 | 66-6895 | TUBE - defrost to bulkhead | 1 | |
| 10 | 66-6896 | TUBE - defrost to discharge | 1 | |
| 11 | 55-4142 | ELBOW | 1 | |
| 12 | 66-9903 | TUBE - defrost | 1 | |
| 13 | 102-476 | COMPRESSOR - X214 (R12, see 107E2) | 1 | |
| 8102-477 | COMPRESSOR - X214 (new exchange, R134a, see 111E4) | 1 | ||
| 14 | 66-6135 | TUBE - tee to check valve | 1 | |
| 15 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 16 | 55-3251 | TEE | 1 | |
| 17 | 67-1180 | TANK - receiver | 1 | |
| 66-6827 | INDICATOR - liquid | 1 | ||
| 66-9257 | BALL - sight glass | 1 | ||
| 33-2419 | O-RING | 1 | ||
| 55-4955 | NUT - receiver | 2 | ||
| 55-2641 | FLATWASHER | 1 | ||
| 55-4931 | WASHER - spacer | 2 | ||
| 18 | 66-6136 | TUBE - dehydrator to exchanger | 1 | |
| 19 | 61-800 | DEHYDRATOR (see 117E1) | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 4 650 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 600 ₽ |
|
| 20 | 66-6137 | TUBE - receiver to dehydrator | 1 | |
| 55-8268 | SHOULDER (brazed) | 1 | ||
| 55-8267 | NUT - shoulder | 1 | ||
| 21 | 66-6057 | TUBE - check valve to dehydrator | 1 | |
| 23 | 67-1266 | COIL - condenser/radiator | 1 | |
| 55-2977 | SCREW - coil | 10 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-4953 | NUT | 2 | ||
| 24 | 66-6053 | TUBE - coil to receiver | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 25 | 66-5346 | TUBE - tee to check valve | 1 | |
| 26 | 61-283 | VALVE - solenoid (see 125C10) | 1 | |
| 55-1384 | SCREW - valve | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 27 | 66-4981 | TUBE - discharge to 3-way | 1 | |
| 28 | 22-188 | VALVE - discharge (see 88E14) | 1 | |
|
10-22-188 | Клапан, Discharge | 8 260 ₽ |
|
| 29 | 66-1916 | VALVE - suction (see 88E14) | 1 | |
|
10-66-1916 | Клапан всасывающий (Suction) | 13 270 ₽ |
|
| 30 | 22-646 | ADAPTER - suction valve | 1 | |
| 31 | 66-4982 | TUBE - 3-way to condenser | 1 | |
| 32 | 66-6549 | VALVE - pilot solenoid | 1 | |
| 41-1525 | COIL | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 44-8574 | HARNESS - pilot solenoid | 1 | ||
| 55-3029 | SCREW - solenoid | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 33 | 55-308 | ELBOW | 2 | |
| 34 | 61-1236 | VALVE - 3-way (see 101B6) | 1 | |
| 55-3618 | SCREW - valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 35 | 66-6050 | TUBE - solenoid to 3-way | 1 | |
| 36 | 66-6134 | TUBE - solenoid to suction tube | 1 | |
| 37 | 67-1225 | TANK - accumulator (see 102G11) | 1 | |
| 38 | 66-4620 | TUBE - accumulator to cpr | 1 | |
| 39 | 61-4527 | VALVE - cpr | 1 | |
| 14-60052-02 OEM | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 39 280 ₽ |
|
|
|
10-61-4527 | Клапан KVL Ø 28мм, MD/KD-II/MD-II/TS/T-Series | 27 760 ₽ |
|
| P-14-00205-01 | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 27 760 ₽ |
|
|
| 61-4527 | VALVE - cpr | 1 | ||
| 14-60052-02 OEM | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 39 280 ₽ |
|
|
|
|
10-61-4527 | Клапан KVL Ø 28мм, MD/KD-II/MD-II/TS/T-Series | 27 760 ₽ |
|
| P-14-00205-01 | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 27 760 ₽ |
|
|
| 61-2285 | COUPLING (1-1/8) | 1 | ||
| 40 | 66-4624 | TUBE - exchanger to accumulator | 1 | |
| 41 | 66-6048 | TUBE - exchanger to accumulator | 1 | |
| 42 | 66-6052 | TUBE - cpr to compressor | 1 | |
| 43 | 66-5752 | FITTING - solder | 1 | |
| 44 | 33-211 | GASKET - adapter | 1 | |
|
33-211 OEM | Прокладка компрессора | 1 720 ₽ |
|
|
30-33-211 | Прокладка | 510 ₽ |
|
| 45 | 22-886 | ADAPTER - suction valve | 1 | |
| 55-190 | SCREW - adapter | 4 | ||
| 55-3252 | WASHER | 4 | ||
| 46 | 99-9828 | SUPPORT - pilot solenoid | 1 | |
| 55-2991 | SCREW - support | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 99-9806 | NUTSTRIP | 1 | ||
| 47 | 66-4632 | TUBE - defrost | 1 |
