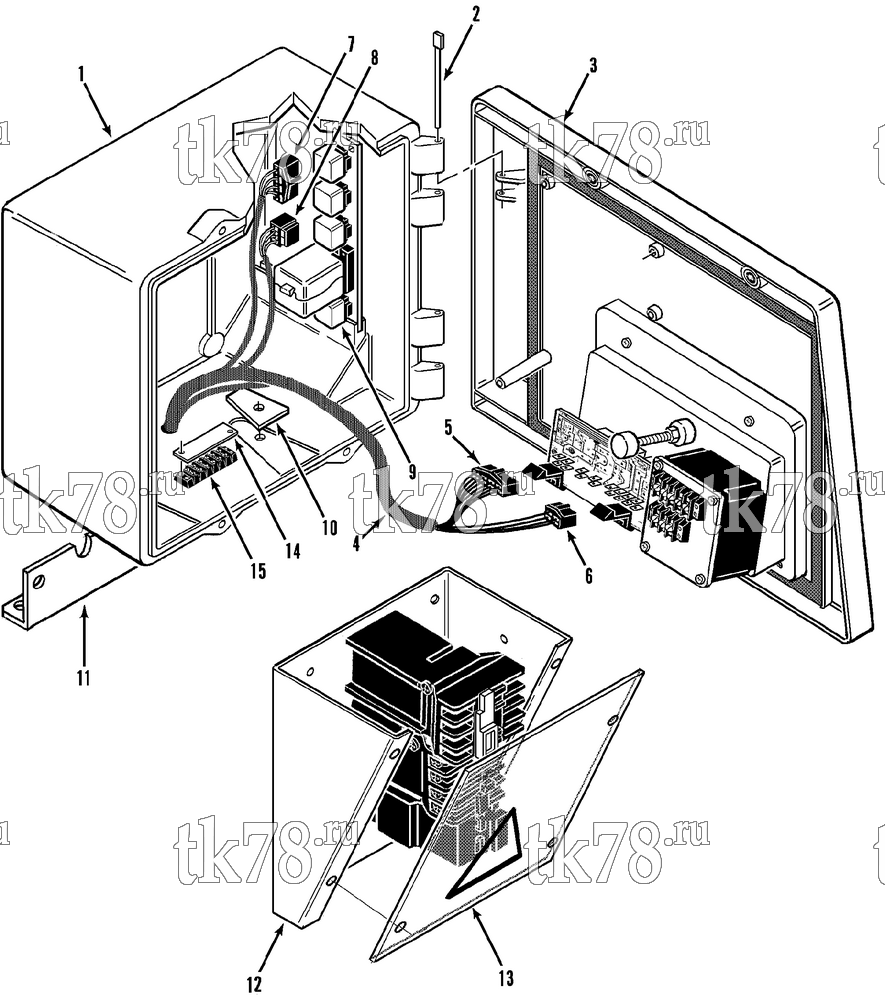

Установкa Thermo King KH-II 30 & 50 схема CONTROL BOX ASSEMBLY – 125C13
Обновление от: 4/29/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4306 | BOX - control (3 phase & 30 units) | 1 | |
| 98-4356 | BOX - control (1 phase) | 1 | ||
| 99-3281 | MOUNT - cable tie (harness) | 3 | ||
| 55-2270 | RIVET - mount | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2270 | RIVET - mount | 1 | ||
| 12-643 | GASKET | 1 | ||
| 2 | 91-1093 | PIN - hinge | 2 | |
| 3 | 91-4509 | PANEL - control box cover (see 125C14) | 1 | |
| 4 | 41-851 | HARNESS - main | 1 | |
| 5 | 44-5030 | CONNECTOR (6-pin, female) | 3 | |
| 6 | 44-5814 | CONNECTOR (4-pin, female) | 2 | |
| 7 | 44-5719 | CONNECTOR (8-pin, female) | 1 | |
| 8 | 44-5622 | CONNECTOR (6-pin, female) | 1 | |
| 44-6248 | CONNECTOR - pc board (3-pin, female) | 1 | ||
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 44-5838 | CONNECTOR - tower, pilot solenoid (2-pin) | 1 | ||
| 44-5835 | CONNECTOR - shroud, hpco (2-pin) | 1 | ||
| 44-6381 | CONNECTOR - hourmeter (1-pin) | 2 | ||
| 44-6451 | CONNECTOR - switch panel (1-pin) | 1 | ||
| 55-570 | CLAMP - harness to control panel | 1 | ||
| 55-3025 | SCREW - clamp | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 9 | 44-9949 | BOARD - relay/pc (see 111C1) | 1 | |
| 55-3025 | SCREW - board | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 91-4763 | PILLAR (10-32 x 1.25) | 2 | ||
| 91-4764 | PILLAR (10-32 x 2.0) | 2 | ||
| 10 | 91-1097 | SPACER - box | 2 | |
| 11 | 91-1098 | SUPPORT - control panel | 1 | |
| 91-1741 | NUTSTRIP (6.5 in bhc) | 1 | ||
| 91-1275 | NUTSTRIP (8.8 in bhc) | 1 | ||
| 55-4580 | SCREW - box (truss head) | 4 | ||
| 55-5970 | WASHER - sealing | 4 | ||
| 55-1587 | SCREW - box (hh) | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 12 | 91-7567 | TRAY - high voltage (3 phase, see 124G13) | 1 | |
| 91-7566 | TRAY - high voltage (1 phase, see 111C4) | 1 | ||
| 55-3443 | SCREW - tray | 4 | ||
| 55-3800 | WASHER - sealing | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 13 | 91-1100 | SHIELD - high voltage | 1 | |
| 99-7834 | NAMEPLATE - Caution | 1 | ||
| 55-3029 | SCREW - shield | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 14 | 91-2691 | SHIELD - test point | 1 | |
| 55-3684 | SCREW - terminal board/shield | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-2990 | NUT | 2 | ||
| 55-4223 | NUT | 2 | ||
| 15 | 44-1728 | BOARD - terminal | 1 |
