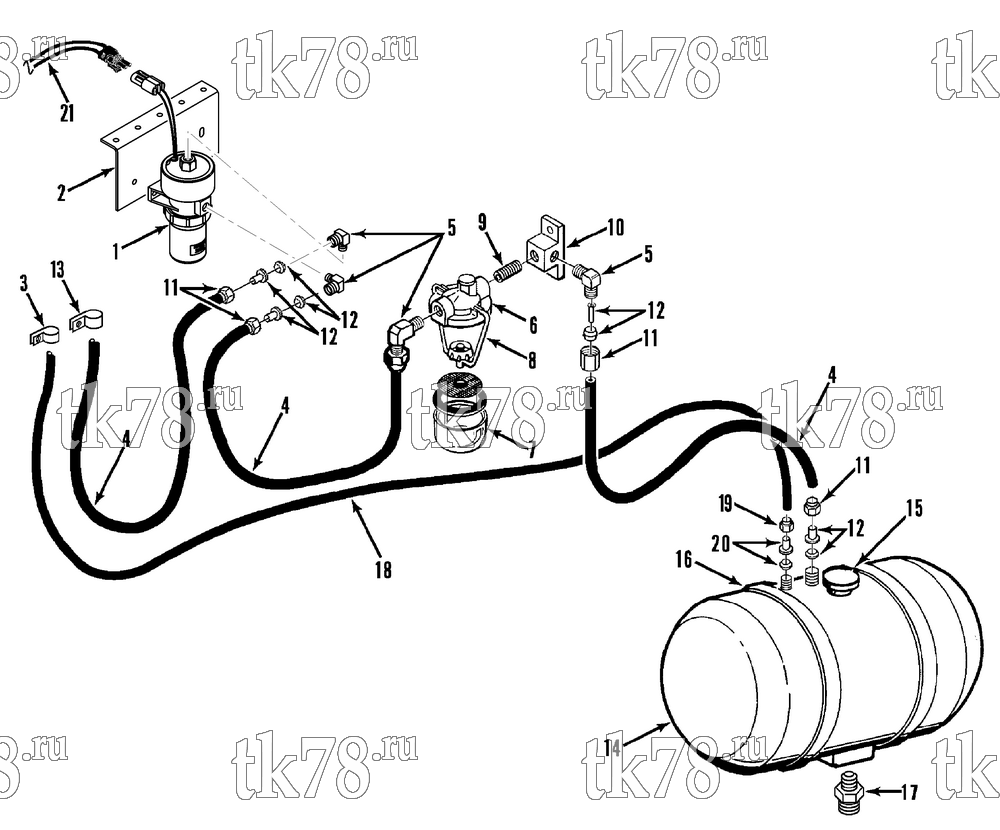

Установкa Thermo King KD-II & KD-II MAX схема FUEL TANK & PUMP GROUP – 89D13
Обновление от: 11/18/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 850 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 9 870 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 9 460 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 10-273 | KIT - filter (for 41-2640 fuel pump) | 1 | ||
| 33-1676 | GASKET - fuel pump (for 41-2638 fuel pump) | 1 | ||
| 2 | 92-5656 | BRACKET - fuel pump | 2 | |
| 55-1587 | SCREW - pump | 4 | ||
| 55-2699 | LOCKWASHER | 4 | ||
| 55-916 | NUT | 4 | ||
| 3 | 55-546 | CLAMP (1/4) | A/R | |
| 4 | 11-4372 | HOSE - tank to unit (3/8 od x 35 ft lg) | A/R | |
| 5 | 11-4380 | ELBOW - tank (3/8) | 2 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 6 | 11-6180 | PREFILTER | 1 | |
| 11-4956 | HEAD - filter | 1 | ||
| 11-4880 | ELEMENT - filter | 1 | ||
| 33-2464 | GASKET - filter | 1 | ||
| 7 | 10-299 | KIT - bowl & filter | 1 | |
| 8 | 11-4957 | BAIL - filter | 1 | |
| 11-4958 | NUT - bail | 1 | ||
| 9 | 55-4512 | NIPPLE | 1 | |
| 10 | 55-4496 | ELBOW - filter | 1 | |
| 55-214 | SCREW - elbow | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-315 | NUT | 2 | ||
| 11 | 11-4941 | NUT (3/8) | 5 | |
| 12 | 10-242 | KIT - sleeve & eyelet (3/8) | 5 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 13 | 55-547 | CLAMP (3/8) | A/R | |
| 14 | 12-461 | TANK - fuel | 1 | |
| 15 | 11-5946 | CAP - fuel tank (non-vented) | 1 | |
|
10-11-5946 | Пробка бензобака, Non Vented - Brass | 5 120 ₽ |
|
| 33-381 | GASKET - cap | 1 | ||
| 16 | 12-355 | CLAMP - fuel tank | 2 | |
| 55-451 | LOCKWASHER | 1 | ||
| 55-1177 | NUT - clamp | 1 | ||
| 17 | 55-2313 | CHECK - ball | 1 | |
| 18 | 11-4367 | HOSE - fuel return (1/4 od x 35 ft lg) | A/R | |
| 19 | 11-4841 | NUT - fuel hose (1/4) | A/R | |
| 20 | 10-243 | KIT - sleeve & eyelet (1/4) | A/R | |
| 21 | 44-9983 | HARNESS - fuel pump (w/ Packard connectors) | 1 | |
| 41-3664 | HARNESS - fuel pump (w/ Deutsch connector) | 1 | ||
| 22 | 44-5838 | CONNECTOR - tower (2-pin) | 1 |
