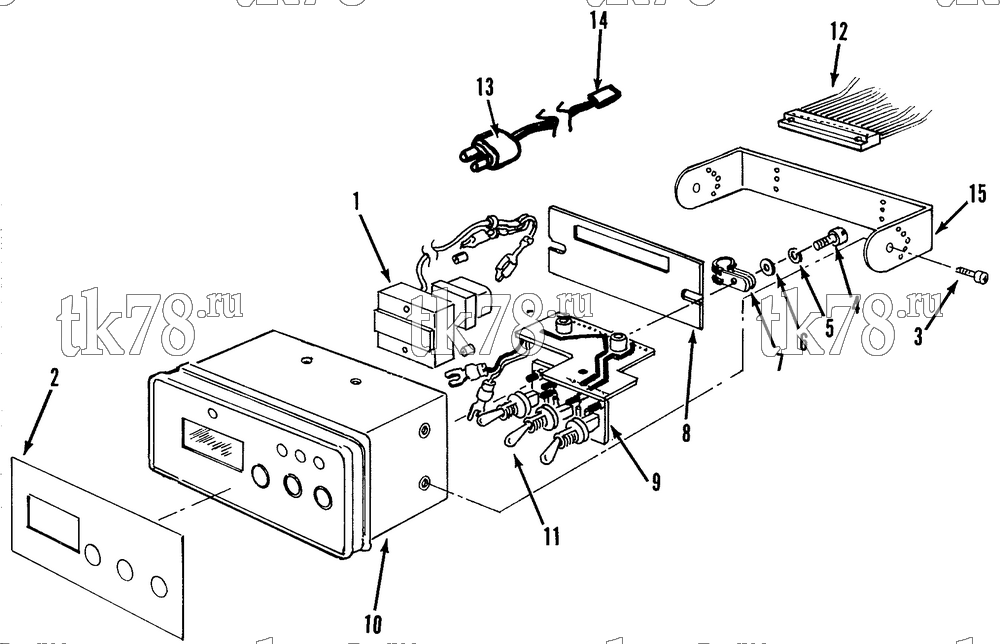

Установкa Thermo King KD-II & KD-II MAX схема REMOTE CONTROL BOX (Before 9/89) – 78F6
Обновление от: 5/31/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 44-8083 | BOX - remote control (complete, 30 & 50 units, TSA) | 1 | ||
| 44-8084 | BOX - remote control (50 units, EMEIA) | 1 | ||
| 1 | 40-351 | THERMOMETER (digital, F) | 1 | |
| 2 | 99-9712 | NAMEPLATE - Box (50 units) | 1 | |
| 99-9950 | NAMEPLATE - Box (50 units, EMEIA) | 1 | ||
| 99-9714 | NAMEPLATE - Box (30 units) | 1 | ||
| 99-9951 | NAMEPLATE - Box (30 units, EMEIA) | 1 | ||
| 3 | 55-4249 | SCREW - bracket | 4 | |
| 4 | 55-2989 | SCREW - cover | 2 | |
| 5 | 55-2202 | LOCKWASHER | 2 | |
| 6 | 55-2201 | FLATWASHER | 2 | |
| 7 | 55-2590 | CLAMP | 1 | |
| 8 | 99-9711 | COVER - back plate | 1 | |
| 9 | 44-8082 | BOARD - circuit | 1 | |
| 10 | 99-9710 | BOX - remote (before 5/30/88) | 1 | |
| 91-408 | BOX - remote (5/30/88 & after) | 1 | ||
| 11 | 44-7604 | SWITCH - on/off | 1 | |
| 44-7605 | SWITCH - defrost | 1 | ||
| 44-7606 | SWITCH - defrost | 1 | ||
| 12 | 44-7418 | HARNESS - remote box to unit | 1 | |
| 13 | 44-7443 | HARNESS & SENSOR - digital thermometer | 1 | |
| 14 | NSS | SENSOR - only | 1 | |
| 15 | 99-9713 | BRACKET - box | 1 |
