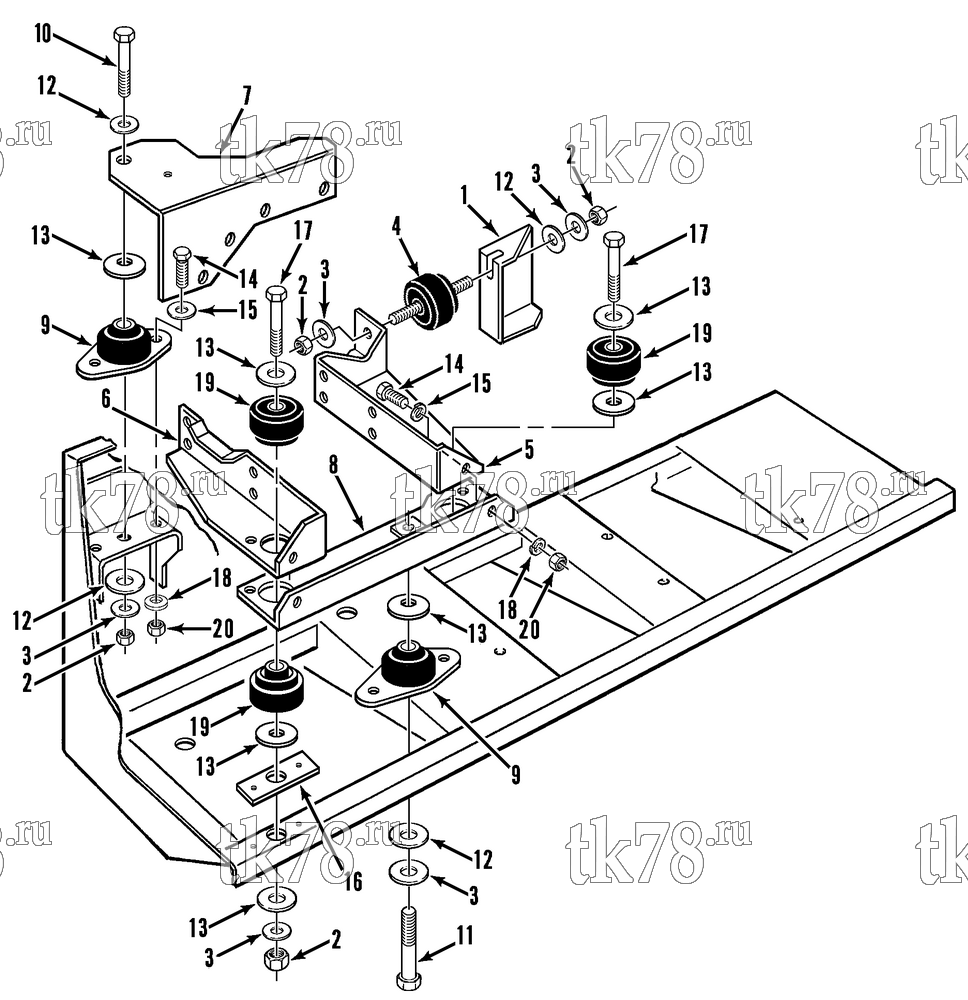

Установкa Thermo King KD-II & KD-II MAX схема ENGINE MOUNTING GROUP (8/91 & After) – 101C14
Обновление от: 4/2/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-9207 | BRACKET - snubber | 1 | |
| 55-3486 | SCREW - bracket | 2 | ||
| 55-2173 | FLATWASHER | 5 | ||
| 55-7123 | WASHER - belleville | 2 | ||
| 55-4952 | NUT | 2 | ||
| 2 | 55-2166 | NUT | 5 | |
| 3 | 55-7123 | WASHER - belleville | 6 | |
| 4 | 91-3908 | MOUNT - vibration | 1 | |
|
10-91-3908 | Подушка, Yanmar 374 / 395, KD/MD/RD/TD-II / MD/TS-Series | 2 370 ₽ |
|
| 5 | 91-3202 | MOUNT - engine (roadside) | 1 | |
| 6 | 92-3252 | MOUNT - engine (curbside) | 1 | |
| 7 | 91-3200 | MOUNT - engine (upper) | 1 | |
| 91-7855 | MOUNT - engine (upper, WKD) | 1 | ||
| 55-5957 | SCREW - mount (M10 x 1.5) | 4 | ||
| 55-6216 | SCREW - mount (M10 x 1.5) | 6 | ||
| 55-5695 | SCREW - mount (M10 x 1.25) | 2 | ||
| 55-411 | LOCKWASHER | 12 | ||
| 55-7122 | WASHER - belleville | 18 | ||
| 55-4625 | FLATWASHER | 12 | ||
| 8 | 91-3203 | MOUNT - engine (front) | 1 | |
| 55-3048 | SCREW - mount | 6 | ||
| 55-7122 | FLATWASHER | 6 | ||
| 55-4955 | NUT | 6 | ||
| 9 | 91-2281 | MOUNT - vibration | 2 | |
|
10-91-2281 | Подушка, Yanmar 374 / 395, KD/MD/RD/TD-II / MD/TS-Series | 1 240 ₽ |
|
| 10 | 55-2914 | SCREW - engine | 1 | |
| 11 | 55-2747 | SCREW - engine | 1 | |
| 12 | 55-3594 | WASHER - special | 4 | |
| 13 | 55-5871 | WASHER - special | 8 | |
| 14 | 55-3048 | SCREW - mount | 10 | |
| 15 | 55-2641 | FLATWASHER | 14 | |
| 16 | 99-9449 | MOUNT - wear plate | 2 | |
| 55-3035 | RIVET - wear plate | 4 | ||
| 17 | 55-5888 | SCREW - engine | 2 | |
| 18 | 55-7122 | WASHER - belleville | 26 | |
| 19 | 99-4820 | MOUNT - vibration (engine, set of two) | 2 | |
|
10-99-4820 | Опора двигателя Yanmar 374 / 395 / 482 / 486 | 980 ₽ |
|
| 20 | 55-2640 | NUT | 10 |
