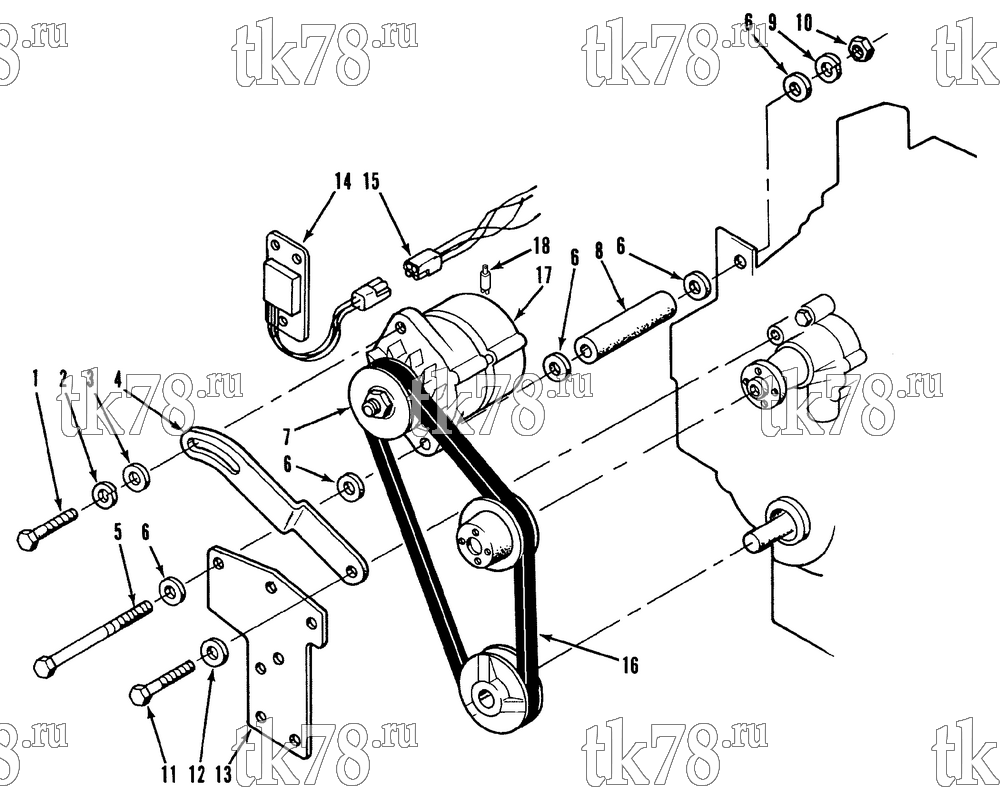

Установкa Thermo King KD-I схема ALTERNATOR GROUP – 50A10
Обновление от: 5/28/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-2969 | SCREW - alternator adjusting | 1 | |
| 2 | 55-790 | LOCKWASHER | 1 | |
| 3 | 55-371 | FLATWASHER | 1 | |
| 4 | 11-5063 | ARM - alternator adjusting | 1 | |
| 5 | 55-4729 | SCREW | 1 | |
| 6 | 55-2038 | FLATWASHER | 6 | |
| 7 | 77-614 | PULLEY - alternator | 1 | |
| 8 | 55-4728 | SPACER | 1 | |
| 9 | 55-365 | LOCKWASHER | 1 | |
| 10 | 55-287 | NUT | 1 | |
| 11 | 55-3401 | CLAMP - hose | 1 | |
| 12 | 55-4613 | WASHER | 1 | |
| 55-790 | LOCKWASHER | 1 | ||
| 13 | 99-5787 | PLATE - alternator | 1 | |
| 14 | 44-5013 | REGULATOR - voltage | 1 | |
| 44-5013 OEM | Реле-регулятор генератора, KD/MD/RD-I / SB-I/II / UMD/URD | 5 050 ₽ |
|
|
| 55-3444 | SCREW | 3 | ||
| 55-1511 | LOCKWASHER | 3 | ||
| 55-2752 | NUT | 3 | ||
| 15 | 44-5533 | HARNESS | 1 | |
| 16 | 78-434 | BELT - alternator | 1 | |
| 17 | 44-3325 | ALTERNATOR (see 15E1) | 1 | |
| US-44-3325 | Генератор 35A/12V | 35 130 ₽ |
|
|
|
10-44-3325 | Генератор 35A/12V | 28 440 ₽ |
|
| 18 | 44-4983 | RESISTOR - alternator output limiter | 1 |
