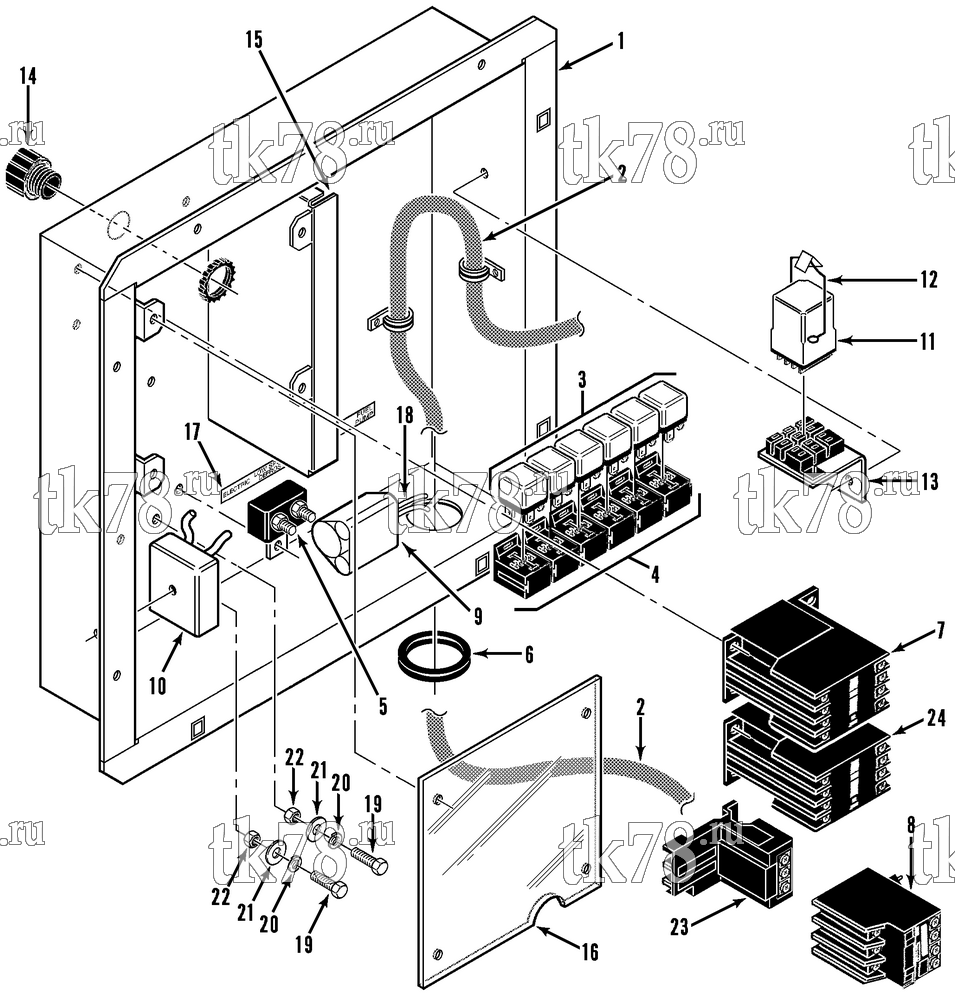

Установкa Thermo King JD-II схема CONTROL BOX ASSEMBLY (3 PHASE) – 111E7
Обновление от: 6/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4484 | BOX - control | 1 | |
| 55-2977 | SCREW - box | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 2 | 44-9969 | HARNESS - main (see 114A5) | 1 | |
| 3 | 44-9111 | RELAY (1pdt) | 6 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 4 | 44-5537 | SOCKET - relay | 6 | |
| 55-2989 | SCREW - socket | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-6743 | INSERT - threaded | 4 | ||
| 5 | 44-3181 | BREAKER - circuit | 1 | |
| 55-3511 | SCREW - breaker | 1 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 6 | 33-628 | GROMMET | 1 | |
| 7 | 40-883 | CONTACTOR - motor (3 phase) | 1 | |
| 8 | 41-5622 | RELAY - overload (230, JD-II 50) | 1 | |
| 41-5624 | RELAY - overload (460/3, JD-II 50) | 1 | ||
| 9 | 44-9970 | TIMER | 1 | |
| 55-2330 | BANDWRAP | A/R | ||
| 99-3281 | MOUNT - cable tie | 1 | ||
| 10 | 41-414 | TIMER - unloading | 1 | |
| 55-5215 | SCREW - timer | 1 | ||
| 55-2202 | LOCKWASHER | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 44-6453 | TERMINAL | 2 | ||
| 44-5573 | CONNECTOR | 1 | ||
| 11 | 44-3186 | RELAY - unloading | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 12 | 99-2027 | SPRING - holddown | 1 | |
| 55-2270 | RIVET - spring | 2 | ||
| 55-2771 | CLAMP - speednut | 1 | ||
| 13 | 44-3184 | SOCKET - relay | 1 | |
| 99-4268 | BRACKET - relay | 1 | ||
| 14 | 55-6141 | CONNECTOR (liquid tite) | 1 | |
| 55-2635 | NUT - conduit | 1 | ||
| 55-6010 | PLUG - button | 1 | ||
| 15 | 91-4820 | BRACKET - high voltage & optional | 1 | |
| 55-2989 | SCREW - bracket | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 16 | 91-4744 | SHIELD - high voltage | 1 | |
| 55-3443 | SCREW - shield | 4 | ||
| 55-3800 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-6743 | INSERT - threaded | 4 | ||
| 99-7834 | NAMEPLATE - Caution | 1 | ||
| 17 | 91-5711 | MARKSTRIP | 1 | |
| 18 | 44-9971 | HARNESS - electric relay | 1 | |
| 19 | 55-2991 | SCREW (hh, 10-32, ss) | 2 | |
| 20 | 55-2996 | LOCKWASHER | 2 | |
| 21 | 55-2001 | FLATWASHER | 2 | |
| 22 | 55-2965 | NUT (hex) | 2 | |
| 55-2964 | LOCKWASHER | 2 | ||
| 23 | 41-6096 | ADAPTER - relay | 1 | |
| 55-2989 | SCREW - bracket | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 24 | 40-883 | CONTACTOR - heater option | 1 |
