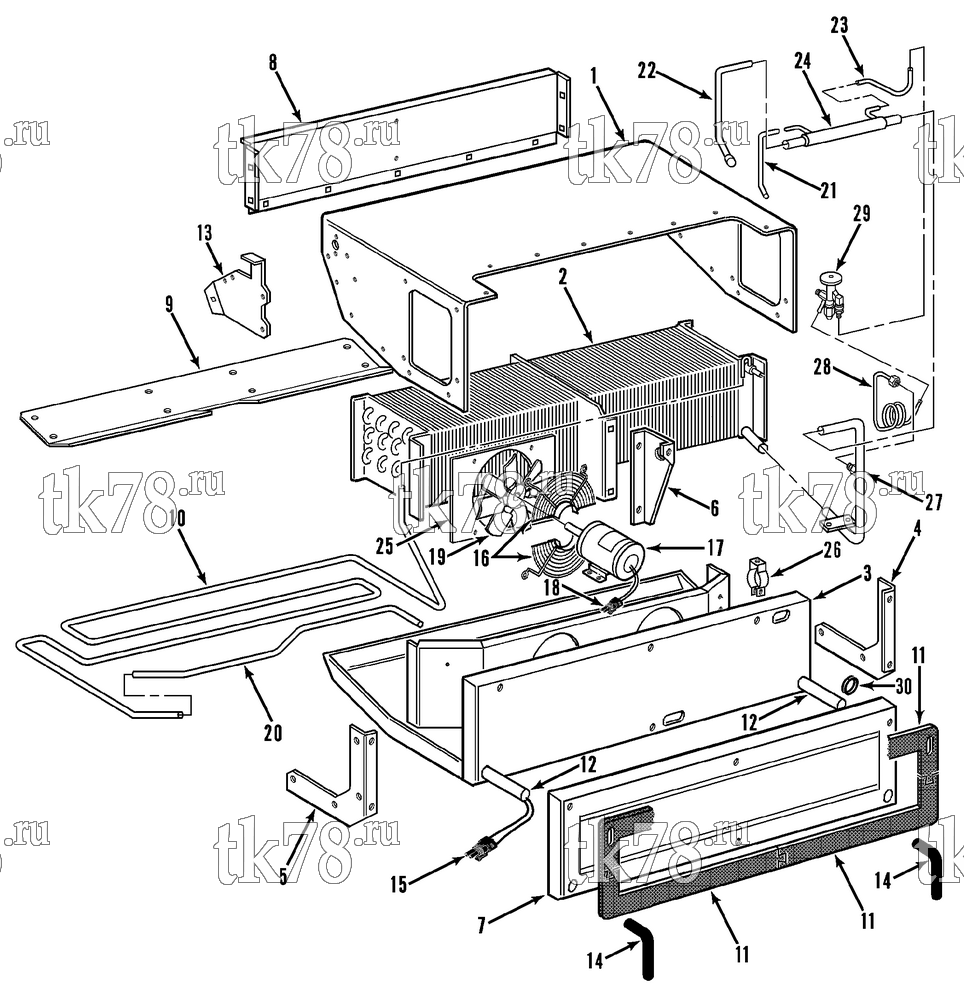

Установкa Thermo King JD-II схема EVAPORATOR COMPONENTS – 111D8
Обновление от: 6/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4352 | HOUSING - evaporator (top) | 1 | |
| 55-5972 | SCREW - evaporator housing | 32 | ||
| 55-1800 | LOCKWASHER | 32 | ||
| 55-7729 | WASHER - belleville | 30 | ||
| 55-2086 | FLATWASHER | 32 | ||
| 2 | 67-1133 | COIL - evaporator | 1 | |
| 55-1587 | SCREW - coil | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 3 | 98-4601 | BASE - evaporator drain pan | 1 | |
| 55-3059 | NUT - captive | 30 | ||
| 4 | 91-4562 | BRACKET - drain pan (roadside) | 1 | |
| 5 | 91-4563 | BRACKET - drain pan (curbside) | 1 | |
| 6 | 91-4735 | BRACKET - evaporator (center, before 1/99) | 1 | |
| 91-9265 | BRACKET - evaporator (center, after 12/98) | 1 | ||
| 55-6744 | NUT - weld | 8 | ||
| 55-2977 | SCREW | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4722 | WASHER - special | 2 | ||
| 33-415 | GROMMET (5/8 id) | 2 | ||
| 33-282 | GROMMET (3/8 id) | 2 | ||
| 33-432 | GROMMET (3/4 id, 1/16 groove) | 1 | ||
| 33-572 | GROMMET (3/4, 1/8 groove) | 2 | ||
| 7 | 98-4348 | SUPPORT - frame/bulkhead | 1 | |
| 55-5983 | SCREW - support | 6 | ||
| 55-7122 | WASHER | 12 | ||
| 55-4955 | NUT | 6 | ||
| 8 | 91-4737 | PANEL - air stop | 1 | |
| 55-1587 | SCREW - panel | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 55-3059 | NUT - captive | 5 | ||
| 9 | 91-4736 | PANEL - evaporator (access) | 1 | |
| 55-1587 | SCREW - panel | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-6733 | INSERT | 8 | ||
| 10 | 66-6848 | TUBE - defrost | 1 | |
| 11 | 30-240 | KIT - sill gasket (top) | 1 | |
| 12 | 66-6097 | TUBE - evaporator drain | 2 | |
| 13 | 91-4794 | BRACKET - housing | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 2 | ||
| 14 | 91-2434 | HOSE - evaporator drain | 2 | |
| 15 | 44-9941 | HEATER - evaporator drain tube | 2 | |
| 16 | 91-4738 | MOUNT & SCREEN - motor | 4 | |
| 55-2977 | SCREW - mount/screen | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 17 | 44-8526 | MOTOR - fan | 2 | |
|
10-44-8526 | Электромотор вентилятора 12V | 29 070 ₽ |
|
| 44-8054 | BRUSH & END BELL | 4 | ||
| 77-1461 | BEARING | 4 | ||
| 55-2979 | SCREW - motor | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 18 | 44-5835 | CONNECTOR - motor | 1 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 19 | 78-1381 | FAN - evaporator | 2 | |
| 55-2899 | SCREW - fan (set) | 2 | ||
| 20 | 66-6891 | TUBE - hot gas to defrost | 1 | |
| 21 | 66-6882 | TUBE - condenser to heat exchanger | 1 | |
| 22 | 66-6885 | TUBE - heat exchanger to condenser | 1 | |
| 55-5197 | BUSHING (7/8) | 1 | ||
| 23 | 66-6883 | TUBE - heat exchanger to expansion | 1 | |
| 33-2115 | O-RING (5/8) | 1 | ||
| 24 | 67-351 | HEAT EXCHANGER | 1 | |
| 55-1587 | SCREW - heat exchanger | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 25 | 98-3123 | ORIFICE | 2 | |
| 26 | 91-4797 | HANGER - heat exchanger | 2 | |
| 55-1587 | SCREW - hanger | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-6733 | INSERT - threaded | 2 | ||
| 27 | 66-6884 | TUBE - suction evaporator to heat exchanger | 1 | |
| 28 | 66-6849 | TUBE - equalizer | 1 | |
| 29 | 66-5993 | VALVE - expansion (R502, R404A) | 1 | |
| 66-5335 | ELEMENT - power | 1 | ||
| 66-6047 | SCREEN - inlet | 1 | ||
| 66-6046 | VALVE - expansion (R12, R134a) | 1 | ||
| 66-5335 | ELEMENT - power | 1 | ||
| 66-6047 | SCREEN - inlet | 1 | ||
| 30 | 33-316 | GROMMET (1 id) | 3 |
