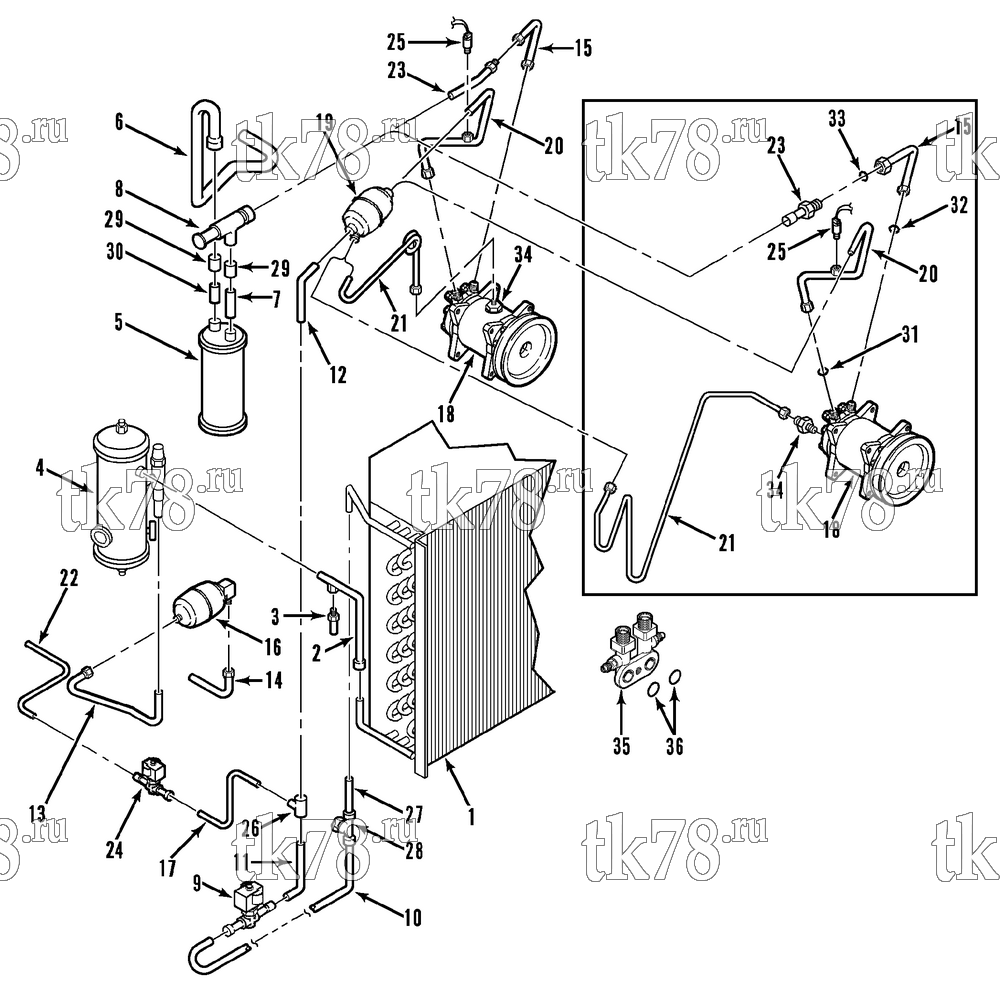

Установкa Thermo King JD-II схема REFRIGERATION COMPONENTS - CONDENSER – 111D13
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1370 | COIL - condenser/radiator | 1 | |
| 2 | 66-6879 | TUBE - condenser to receiver | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 3 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 4 | 67-1180 | TANK - receiver | 1 | |
| 5 | 67-1387 | TANK - accumulator | 1 | |
| 6 | 66-8639 | TUBE - suction evaporator to accumulator | 1 | |
| 91-5114 | CLAMP - suction tube | 1 | ||
| 55-3462 | SCREW - clamp | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-6526 | INSERT | 1 | ||
| 7 | 66-6873 | TUBE - accumulator to cpr valve | 1 | |
| 8 | 61-269 | VALVE - cpr | 1 | |
| 9 | 66-6903 | VALVE - solenoid (liquid refrigerant, see 138B9) | 1 | |
| 10 | 66-6878 | TUBE - solenoid valve to condenser coil | 1 | |
| 91-758 | CLAMP | 1 | ||
| 11 | 66-6877 | TUBE - tee to solenoid | 1 | |
| 12 | 66-6908 | TUBE - discharge (oil separator to tee) | 1 | |
| 13 | 66-6880 | TUBE - receiver to dehydrator | 1 | |
| 14 | 66-6881 | TUBE - dehydrator to evaporator | 1 | |
| 15 | 66-6887 | TUBE - suction adapter to compressor (R12, R502) | 1 | |
| 66-7977 | TUBE - suction adapter to compressor (R134a, R403B) | 1 | ||
| 16 | 61-800 | DEHYDRATOR | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 2 550 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 400 ₽ |
|
| 33-1015 | O-RING (3/8 id) | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 17 | 66-6889 | TUBE - tee to solenoid valve | 1 | |
| 18 | 102-351 | COMPRESSOR (Sanden, R12, R502) | 1 | |
| 66-6871 | ADAPTER (o-ring seal) | 1 | ||
| 33-1015 | O-RING (3/8) | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 102-1028 | COMPRESSOR - 15XD (Zexel, R134a, see note) | 1 | ||
| 66-7042 | FITTING - swivel (R134a, R403B) | 1 | ||
| 66-7043 | FITTING - swivel (R134a, R403B) | 1 | ||
| 102-1012 | COMPRESSOR - 16XD (12V, 5.3 in, incl 2A clutch) | 1 | ||
| 203-513 | OIL - compressor (R134a, R403B) | 2 | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 19 | 66-8547 | SEPARATOR - oil | 1 | |
| 91-1939 | NAMEPLATE - service part number | 1 | ||
| 20 | 66-6875 | TUBE - discharge, compressor to separator (R12, R502) | 1 | |
| 66-7976 | TUBE - discharge, compressor to separator (R403B, R404A) | 1 | ||
| 66-7044 | TUBE - discharge, compressor to separator (R134a) | 1 | ||
| 21 | 66-6888 | TUBE - oil return (R12, R502) | 1 | |
| 66-7978 | TUBE - oil return (R403B) | 1 | ||
| 66-7047 | TUBE - oil return (R134a) | 1 | ||
| 22 | 66-6890 | TUBE - hot gas (solenoid valve to evaporator) | 1 | |
| 23 | 66-6886 | TUBE - suction valve to adapter (R12, R502) | 1 | |
| 66-7045 | TUBE - suction valve to adapter (R134a, R404A) | 1 | ||
| 66-7977 | TUBE - suction valve to adapter (R403B) | 1 | ||
| 24 | 66-6874 | VALVE - solenoid (see 138B8) | 1 | |
| 25 | 41-3846 | SWITCH - hpco (R502, R403B) | 1 | |
| 44-7992 | SWITCH - hpco (R12) | 1 | ||
| 44-9137 | SWITCH - hpco, valve (R134a, R404A) | 1 | ||
| 26 | 55-6507 | TEE | 1 | |
| 27 | 66-6956 | TUBE - check valve to condenser | 1 | |
| 28 | 66-3644 | VALVE - check (see 9G12) | 1 | |
| 29 | 55-6387 | BUSHING | 2 | |
| 30 | 66-7040 | TUBE - bushing to accumulator | 1 | |
| 31 | 33-2350 | O-RING (1/2 id, R134a, R403B, R404A) | 1 | |
| 32 | 33-672 | O-RING (5/8 id, R134a, R403B, R404A) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 33 | 33-2115 | O-RING (5/8 od) | 1 | |
| 34 | 55-8778 | FITTING - oil return | 1 | |
| 66-7041 | FITTING - oil return (flare fitting) | 1 | ||
| 33-768 | GASKET - flare | 1 | ||
| 33-1461 | O-RING | 1 | ||
| 35 | 22-992 | MANIFOLD - compressor (90 deg, w/ o-rings) | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 36 | 33-2882 | O-RING | 2 |
