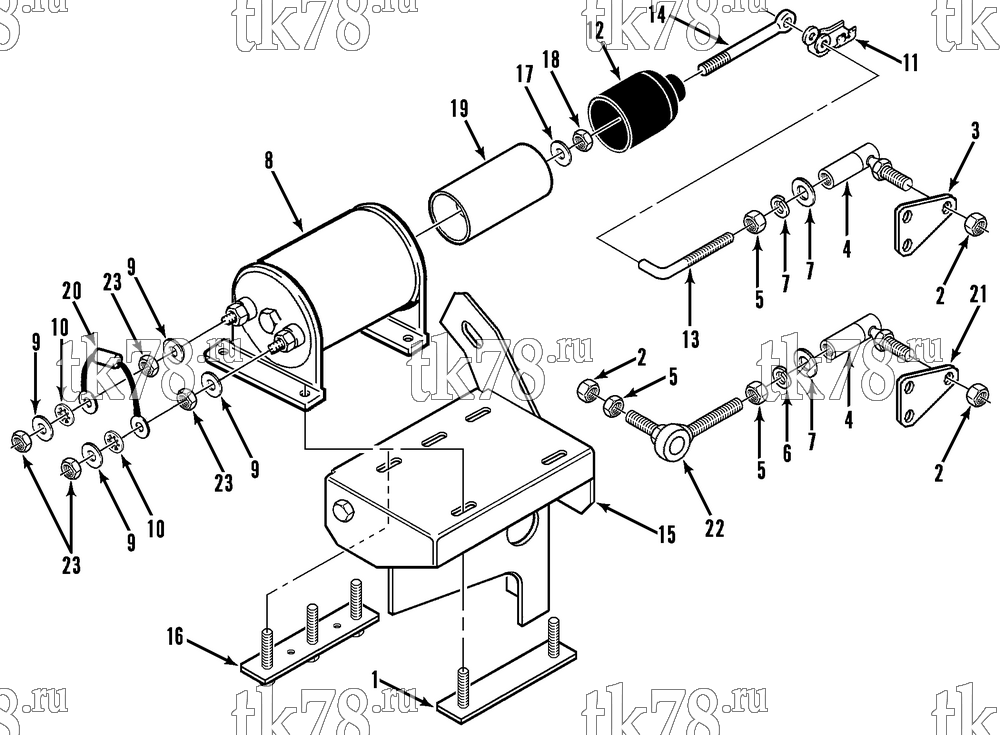

Установкa Thermo King JD-II схема THROTTLE SOLENOID GROUP – 111C6
Обновление от: 6/2/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-930 | BOLTSTRIP - solenoid (after 7/95) | 2 | |
| 2 | 55-4560 | NUT | 3 | |
| 3 | 11-7681 | ADAPTER - throttle link (before 7/95) | 1 | |
| 55-3623 | SCREW - adapter | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 4 | 11-5234 | BALL JOINT | 1 | |
| 5 | 55-2965 | NUT | 3 | |
| 6 | 55-2996 | LOCKWASHER | 1 | |
| 7 | 55-2001 | FLATWASHER | 2 | |
| 8 | 44-9181 | SOLENOID - throttle (incl 12, 17, 18, & 19) | 1 | |
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 5 860 ₽ |
|
| 203-394 | GREASE - synthetic (1 lb) | A/R | ||
| 55-4953 | NUT - solenoid | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 9 | 55-401 | FLATWASHER | 4 | |
| 10 | 55-2996 | LOCKWASHER - internal tooth | 2 | |
| 11 | 11-4266 | CLIP - solenoid rod (before 7/95) | 1 | |
| 12 | 91-3095 | BOOT (rubber) | 1 | |
|
10-91-3095 | Крышка плунжера соленоида оборотов двигателя | 1 890 ₽ |
|
| 13 | 11-7680 | ROD - solenoid | 1 | |
| 14 | 55-2762 | BOLT - eye | 1 | |
|
10-55-2762 | Шток | 1 050 ₽ |
|
| 15 | 91-4761 | BRACKET - solenoid | 1 | |
| 55-5695 | SCREW - bracket (M10 x 1.25) | 1 | ||
| 55-5411 | LOCKWASHER (M10) | 1 | ||
| 55-4625 | FLATWASHER (M10) | 1 | ||
| 55-2683 | SCREW - bracket (3/8-16) | 1 | ||
| 55-2363 | LOCKWASHER | 1 | ||
| 55-2641 | FLATWASHER | 1 | ||
| 55-2957 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-346 | NUT | 4 | ||
| 16 | 91-5115 | BOLTSTRIP (3, 1/4-20, before 7/95) | 1 | |
| 17 | 55-1800 | LOCKWASHER | 1 | |
| 18 | 55-1533 | NUT | 1 | |
| 19 | 44-8198 | PLUNGER - solenoid | 1 | |
|
10-44-8198 | Плунжер соленоида оборотов двигателя | 3 450 ₽ |
|
| 20 | 44-2756 | DIODE | 1 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 21 | 91-6971 | ADAPTER - throttle link (7/95 & after) | 1 | |
| 22 | 11-8663 | BALL JOINT (7/95 & after) | 1 | |
| 23 | 55-2965 | NUT | 4 |
