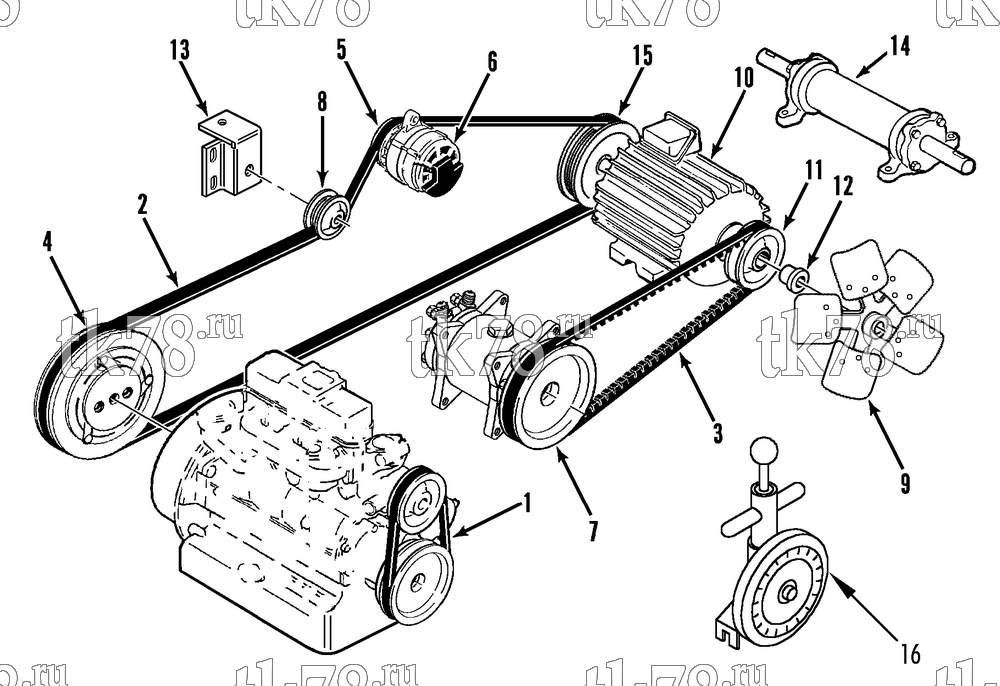

Установкa Thermo King JD-II w/TK 2.49 Engine схема BELTS, PULLEYS & FAN GROUP – 133G6
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1012 | BELT - water pump | 1 | |
| 10-78-1012 | Ремень водяной помпы, MD/KD-II / TS-200/300 | 3 720 ₽ |
|
|
|
PP-78-1012 | Ремень водяной помпы, MD/KD-II / TS-200/300 | 1 320 ₽ |
|
| 2 | 78-905 | BELT - motor (alternator, before 7/96) | 1 | |
| 78-1048 | BELT - motor (alternator, 7/96 & after) | 1 | ||
| 3 | 78-587 | BELT - motor to compressor | 1 | |
| 10-78-587 | Ремень компрессора, JD-II, STB I, II, III | 1 890 ₽ |
|
|
| 4 | 107-297 | CLUTCH (50s, see 145D7) | 1 | |
| 77-2477 | PULLEY (30s) | 1 | ||
| 55-5022 | SCREW - clutch pulley (M8) | 6 | ||
| 55-5695 | SCREW - clutch pulley (M10) | 2 | ||
| 5 | 77-2157 | PULLEY - alternator | 1 | |
| 6 | 44-9754 | ALTERNATOR (model EA, see 90E9) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 41-2195 | ALTERNATOR (37 amp, model 8MR) | 1 | ||
|
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 7 | 107-241 | PULLEY - compressor | 1 | |
|
10-107-241 | Сцепление/муфта электромагнитная, 2A/12V | 6 470 ₽ |
|
| 55-5669 | SCREW - pulley | 1 | ||
| 55-2292 | WASHER - special | 1 | ||
| 8 | 78-997 | PULLEY - idler (see 129B11) | 1 | |
| 9 | 78-904 | FAN - condenser | 1 | |
| 10 | 104-774 | MOTOR (220-230-380-460/1-3/50-60, see 126F4) | 1 | |
| 55-5257 | FITTING | 1 | ||
| 11 | 77-2403 | PULLEY - fan | 1 | |
| 77-2404 | PULLEY - fan (R134a) | 1 | ||
| 55-1229 | KEY - pulley | 1 | ||
| 12 | 77-2160 | BUSHING - pulley | 1 | |
| 13 | 91-4780 | BRACKET - idler | 1 | |
| 55-2977 | SCREW - bracket | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 14 | 77-2185 | JACKSHAFT (30 units, see 113E2) | 1 | |
| 15 | 77-2162 | PULLEY - motor (R12, R502) | 1 | |
| 77-2183 | PULLEY - motor (R134a, R403B) | 1 | ||
| 77-2184 | PULLEY - jackshaft (R12, R502) | 1 | ||
| 77-2182 | PULLEY - jackshaft (R134a) | 1 | ||
| 77-2405 | PULLEY - jackshaft | 1 | ||
| 77-2406 | PULLEY - motor | 1 | ||
| 55-6220 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-3261 | KEY - pulley | 1 | ||
| 16 | 204-427 | GAUGE - belt tension | 1 |
