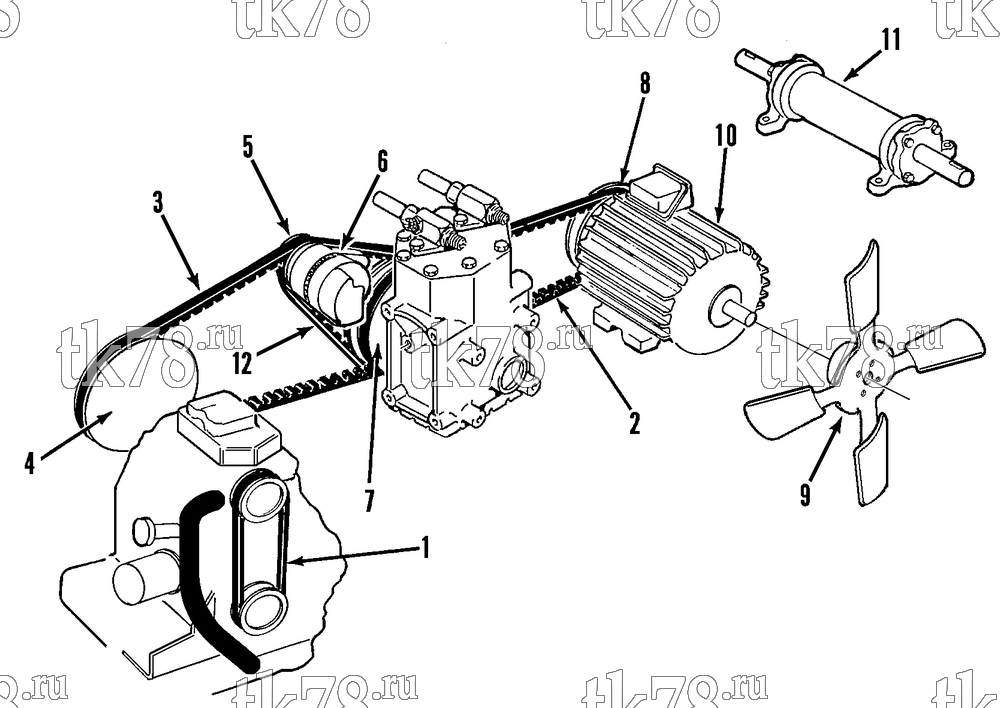

Установкa Thermo King JD-I схема BELTS, PULLEYS & FAN GROUP – 92D8
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-679 | BELT - water pump (see 79A6) | 1 | |
| 10-78-679 | Ремень генератора и водяной помпы, SL/SMX 30 / MD-II/KD-II | 1 880 ₽ |
|
|
|
PP-78-679 | Ремень генератора и водяной помпы, SL/SMX 30 / MD-II/KD-II | 1 120 ₽ |
|
| 2 | 78-760 | BELT - motor (jackshaft to compressor) | 1 | |
| 3 | 78-802 | BELT - engine to compressor to alternator | 1 | |
| 4 | 107-228 | CLUTCH (25 & 50 units) | 1 | |
| 77-1660 | PULLEY (30 units) | 1 | ||
| 55-1140 | SCREW - clutch | 6 | ||
| 55-2959 | LOCKWASHER | 6 | ||
| 5 | 77-1942 | PULLEY - alternator | 1 | |
| 6 | 44-9754 | ALTERNATOR (model EA, see 90E9) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 41-2195 | ALTERNATOR (37 amp, model 8MR) | 1 | ||
|
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 7 | 77-1952 | PULLEY - compressor | 1 | |
| 55-5669 | SCREW - pulley | 1 | ||
| 55-2292 | WASHER - special | 1 | ||
| 8 | 77-1892 | PULLEY - motor or jackshaft | 1 | |
| 55-2962 | SCREW - pulley | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-3261 | KEY - pulley | 1 | ||
| 9 | 78-793 | FAN - condenser | 1 | |
| 55-1229 | KEY - fan | 1 | ||
| 10 | 104-513 | MOTOR (220-230-380-460/3/60) | 1 | |
| 104-514 | MOTOR (220-230-380-460/3/50, EMEIA) | 1 | ||
| 104-523 | MOTOR (230/1/60) | 1 | ||
| 77-686 | BEARING (front) | 1 | ||
| 77-1498 | BEARING (rear) | 1 | ||
| 11 | 77-1949 | JACKSHAFT (30 units, see 92F11) | 1 | |
| 12 | 78-797 | BELT - alternator to compressor | 1 |
