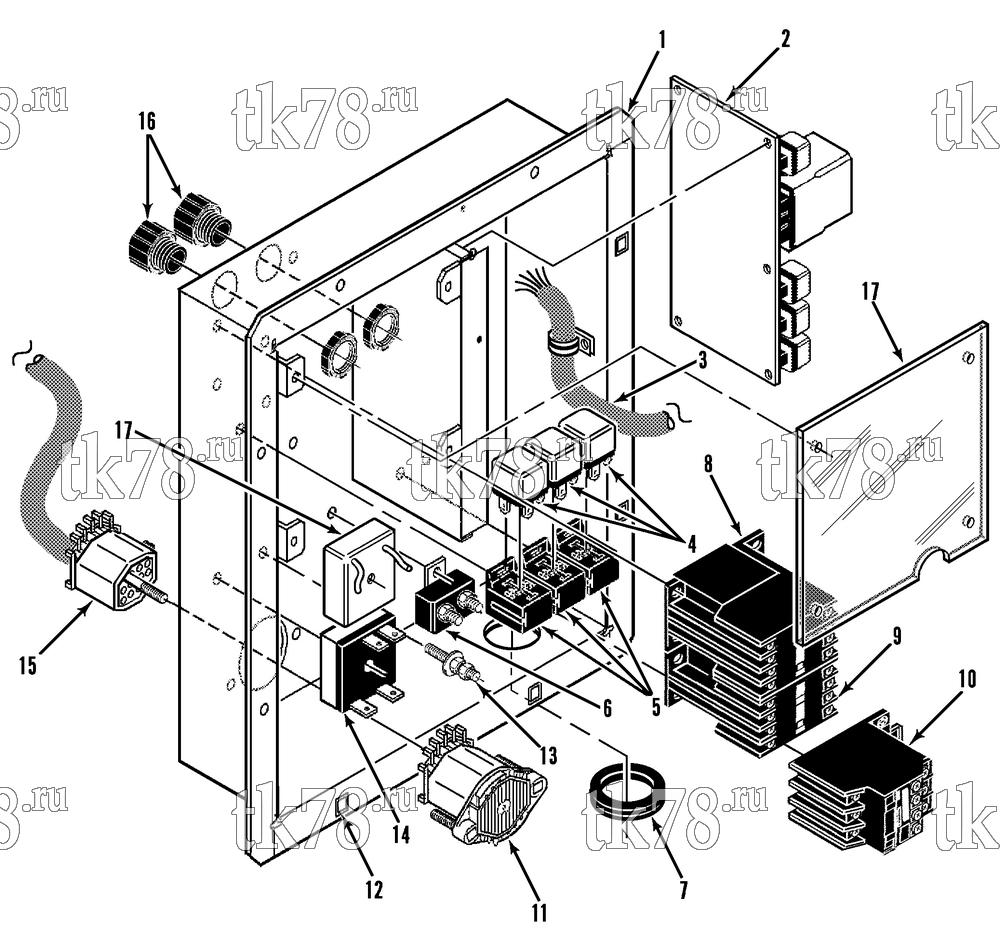

Установкa Thermo King JD-I схема CONTROL BOX ASSEMBLY – 92D14
Обновление от: 6/3/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-1933 | BOX - control | 1 | |
| 2 | 44-9865 | BOARD - Cycle Sentry (see 92F9) | 1 | |
| 3 | 44-8594 | HARNESS - control box (incl 5 & 11) | 1 | |
| 44-5719 | CONNECTOR (8-pin, female) | 3 | ||
| 44-5620 | CONNECTOR (2-pin, male) | 1 | ||
| 44-5622 | CONNECTOR (6-pin, female) | 2 | ||
| 44-6451 | CONNECTOR (1-pin, female) | 1 | ||
| 44-5219 | CONNECTOR (2-pin, female) | 2 | ||
| 44-5814 | CONNECTOR (4-pin, female) | 2 | ||
| 44-5827 | CONNECTOR (4-pin, male) | 1 | ||
| 44-6381 | CONNECTOR (1-pin, male) | 3 | ||
| 99-3427 | MOUNT - cable tie | 1 | ||
| 4 | 44-9111 | RELAY (1pdt) | 2 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 5 | 44-5537 | SOCKET - relay | 2 | |
| 55-5974 | SCREW - socket | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-6718 | INSERT - threaded | 2 | ||
| 6 | 44-3181 | BREAKER - circuit | 1 | |
| 55-5974 | SCREW - circuit breaker | 1 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 55-6718 | INSERT - threaded | 1 | ||
| 7 | 33-623 | GROMMET | 1 | |
| 8 | 41-5629 | CONTACTOR - motor | 1 | |
| 9 | 41-5629 | CONTACTOR - heater (optional) | 1 | |
| 10 | 41-5623 | RELAY - overload (208-220-230/3/50-60) | 1 | |
| 41-5626 | RELAY - overload (380-415-460/3/50-60) | 1 | ||
| 41-5622 | RELAY - overload (230/1/60) | 1 | ||
| 44-7191 | BRACKET - overload relay | 1 | ||
| 55-5974 | SCREW - contactor & relay | 6 | ||
| 55-3800 | LOCKWASHER | 6 | ||
| 55-6718 | INSERT - threaded | 6 | ||
| 11 | 44-7884 | CONNECTOR - shroud (22-pin) | 1 | |
| 44-7811 | LOCK - connector | 2 | ||
| 12 | 55-3059 | NUT - captive | 4 | |
| 13 | 55-2849 | SCREW - ground | 4 | |
| 55-2996 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 14 | 44-8162 | TIMER - heater initiation | 1 | |
| 55-5215 | SCREW - timer | 1 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 55-6718 | INSERT - threaded | 1 | ||
| 15 | 44-8592 | HARNESS - main | 1 | |
| 44-7829 | CONNECTOR - tower (22-pin) | 1 | ||
| 44-7811 | LOCK - connector | 2 | ||
| 44-5835 | CONNECTOR (2-pin, female) | 1 | ||
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 4 | ||
| 44-7327 | CONNECTOR - tower (1-pin) | 1 | ||
| 16 | 55-6141 | CONNECTOR (liquid tite) | 2 | |
| 55-6010 | PLUG - button (connector hole) | 1 | ||
| 17 | 44-9047 | RELAY - unloading timer | 1 |
