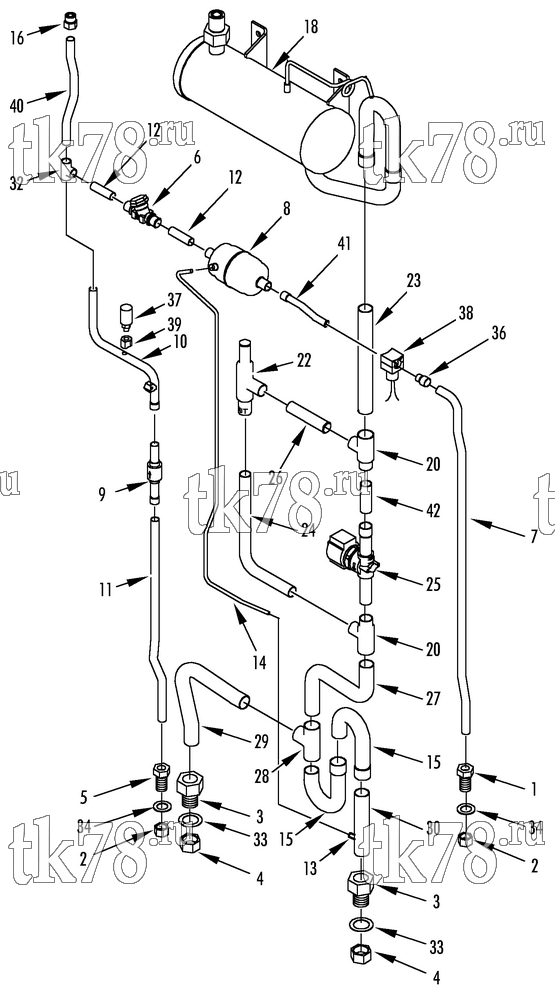

Установкa Thermo King J Series схема SUPER PAK NOSEMOUNT REFRIGERATION – 158D9
Обновление от: 1/24/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-6401 | ADAPTER - bulkhead | 1 | |
| 2 | 55-6393 | NUT - bulkhead (13/16-16) | 2 | |
| 3 | 55-9420 | ADAPTER - bulkhead | 2 | |
| 4 | 55-6812 | NUT - bulkhead (1-3/16-12) | 1 | |
| 5 | 55-6392 | ADAPTER - bulkhead | 1 | |
| 6 | 66-3644 | VALVE - check (see 9G12) | 1 | |
| 7 | 61-223 | TUBE - discharge | 1 | |
| 8 | 66-8549 | SEPARATOR - oil | 1 | |
| 9 | 61-230 | VALVE - check | 1 | |
| 10 | 61-231 | TUBE - discharge to tee | 2 | |
| 11 | 61-224 | TUBE - adapter to tee (discharge) | 1 | |
| 12 | 61-234 | TUBE - separator to check valve | 2 | |
| 13 | 66-4139 | FITTING - saddle | 1 | |
| 14 | 61-222 | TUBE - suction | 1 | |
| 15 | 61-240 | TUBE - suction | 2 | |
| 16 | 55-6355 | ADAPTER - bulkhead | 1 | |
| 17 | 55-8643 | ADAPTER - suction | 1 | |
| 18 | 67-1660 | TANK - accumulator | 1 | |
| 19 | 66-509 | BUSHING (7/8 ftg, 3/4 sld) | 2 | |
| 20 | 55-8968 | TEE (1-1/8 x 7/8 x 7/8) | 2 | |
| 21 | 61-238 | TUBE - tee to valve | 1 | |
| 22 | 66-9339 | VALVE - pressure regulator | 1 | |
| 23 | 61-236 | TUBE - accumulator to tee (suction) | 1 | |
| 24 | 61-239 | TUBE - valve to tee | 1 | |
| 25 | 66-9326 | VALVE - solenoid | 1 | |
| 26 | 66-9334 | TUBE - solenoid to tee | 1 | |
| 27 | 61-219 | TUBE - suction tee to tee | 1 | |
| 28 | 55-5616 | TEE (1-1/8 x 1-1/8 x 1-1/8) | 1 | |
| 29 | 61-221 | TUBE - suction | 1 | |
| 30 | 61-220 | TUBE - suction tee to adapter | 1 | |
| 31 | 66-5752 | FITTING - tube | 1 | |
| 32 | 55-904 | TEE (5/8 x 5/8 x 5/8) | 1 | |
| 33 | 55-9146 | LOCKWASHER (3/4, internal tooth) | 2 | |
| 34 | 55-7199 | LOCKWASHER (1/2, internal tooth) | 1 | |
| 35 | 55-9147 | LOCKWASHER (3/8, internal tooth) | 1 | |
| 36 | 55-3627 | BUSHING | 1 | |
| 37 | 41-3846 | SWITCH - hpco | 1 | |
| 38 | 41-2726 | SWITCH - thermostat | 1 | |
| 39 | 61-232 | FITTING - saddle | 1 | |
| 40 | 61-233 | TUBE - tee to adapter | 1 | |
| 41 | 61-235 | TUBE - adapter to oil separator | 1 | |
| 42 | 61-237 | TUBE - tee to adapter (suction) | 1 |
