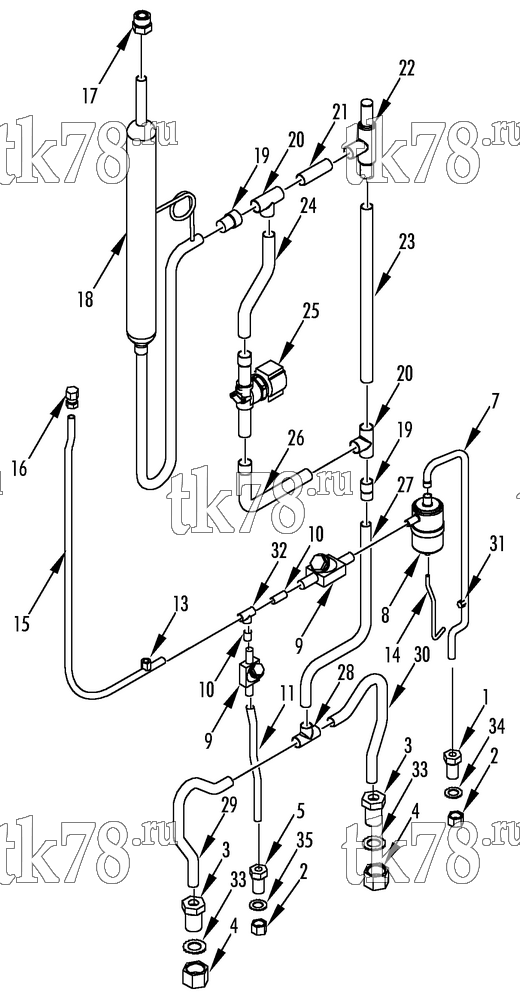

Установкa Thermo King J Series схема PAK REFRIGERATION - NOSEMOUNT – 152D8
Обновление от: 6/15/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-6779 | ADAPTER - bulkhead | 1 | |
| 2 | 55-6393 | NUT - bulkhead (13/16-16) | 2 | |
| 3 | 55-6354 | ADAPTER - bulkhead | 2 | |
| 4 | 55-6812 | NUT - bulkhead (1-3/16-12) | 1 | |
| 5 | 55-6399 | ADAPTER - bulkhead | 1 | |
| 6 | Not Used | |||
| 7 | 66-9330 | TUBE - discharge | 1 | |
| 8 | 66-9570 | SEPARATOR - oil | 1 | |
| 9 | 66-3655 | VALVE - check | 2 | |
| 10 | 66-5516 | TUBE (1.25 in lg) | 2 | |
| 11 | 66-9333 | TUBE - discharge (adapter to tee) | 1 | |
| 12 | Not Used | |||
| 13 | 66-3571 | FITTING - saddle | 1 | |
| 14 | 66-9335 | TUBE - return | 1 | |
| 15 | 66-9571 | TUBE - liquid to defrost | 1 | |
| 16 | 66-6036 | ADAPTER - bulkhead | 1 | |
| 17 | 55-8643 | ADAPTER - suction | 1 | |
| 18 | 67-1538 | TANK - accumulator | 1 | |
| 19 | 66-509 | BUSHING (7/8 ftg, 3/4 sld) | 2 | |
| 20 | 55-6174 | TEE (7/8 x 7/8 x 7/8) | 1 | |
| 21 | 66-9572 | TUBE - tee to valve | 1 | |
| 22 | 66-9339 | VALVE - pressure regulator | 1 | |
| 23 | 66-9338 | TUBE - suction | 1 | |
| 24 | 66-9336 | TUBE - suction | 1 | |
| 25 | 66-9326 | VALVE - solenoid | 1 | |
| 26 | 66-9334 | TUBE - solenoid to tee | 1 | |
| 27 | 66-9337 | TUBE - suction tee to tee | 1 | |
| 28 | 55-5401 | TEE (3/4 x 3/4 x 3/4) | 1 | |
| 29 | 66-9327 | TUBE - suction | 1 | |
| 30 | 66-9328 | TUBE - suction compressor | 1 | |
| 31 | 66-5752 | FITTING - tube | 1 | |
| 32 | 55-2296 | TEE (1/2 x 1/2 x 1/2) | 1 | |
| 33 | 55-9146 | LOCKWASHER (3/4, internal tooth) | 2 | |
| 34 | 55-7199 | LOCKWASHER (1/2, internal tooth) | 1 | |
| 35 | 55-9147 | LOCKWASHER (3/8, internal tooth) | 1 |
