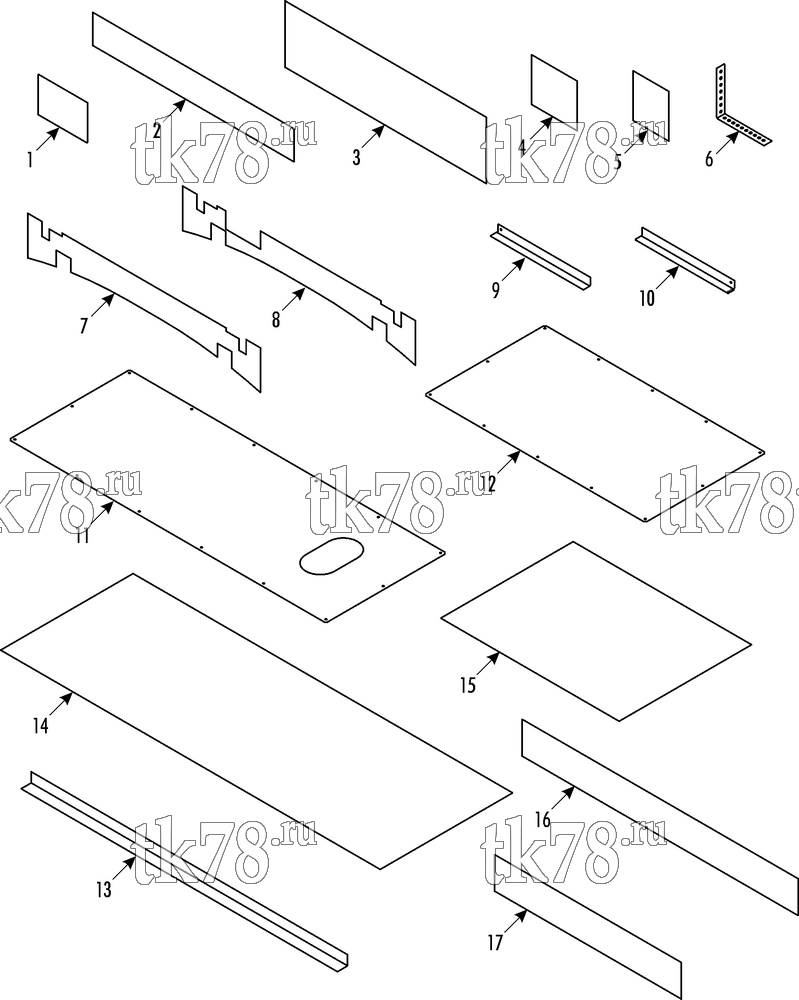

Установкa Thermo King IRV-HVAC System (ISAP A & B) схема INSTALLATION COMPONENTS – 224B4
Обновление от: 11/6/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-6362 | WASHER (170 x 130 mm, ISAP A) | 10 | |
| 2 | 98-7840 | WASHER (700 x 100 mm, ISAP A) | 2 | |
| 3 | 98-7841 | WASHER (700 x 200 mm, ISAP A) | 2 | |
| 4 | 92-6363 | WASHER (159 x 150 mm, ISAP A) | 2 | |
| 5 | 92-6364 | WASHER (124 x 150 mm, ISAP A) | 2 | |
| 6 | 92-6365 | BRACKET | 6 | |
| 7 | 92-4207 | PLATE (ISAP A) | 1 | |
| 8 | 92-4208 | PLATE (ISAP A) | 1 | |
| 9 | 92-6323 | BRACKET (ISAP A) | 1 | |
| 10 | 92-6324 | BRACKET (ISAP A) | 1 | |
| 11 | 98-7842 | CAP - roof (ISAP A/1) | 1 | |
| 12 | 98-7843 | CAP - roof (ISAP A/1) | 1 | |
| 55-5130 | RIVET - blind | A/R | ||
| 55-2331 | BANDWRAP | A/R | ||
| 203-428 | TAPE - cork | A/R | ||
| 13 | 98-7967 | BRACKET | 1 | |
| 14 | 98-7968 | PLATE (1320 x 460 mm, ISAP B) | 1 | |
| 15 | 98-7969 | PLATE (620 x 460 mm, ISAP B) | 1 | |
| 16 | 98-7970 | PLATE (960 x 110 mm, ISAP B) | 2 | |
| 17 | 98-7971 | PLATE (650 x 110 mm, ISAP B) | 2 | |
| 55-5047 | RIVET - blind | A/R |
