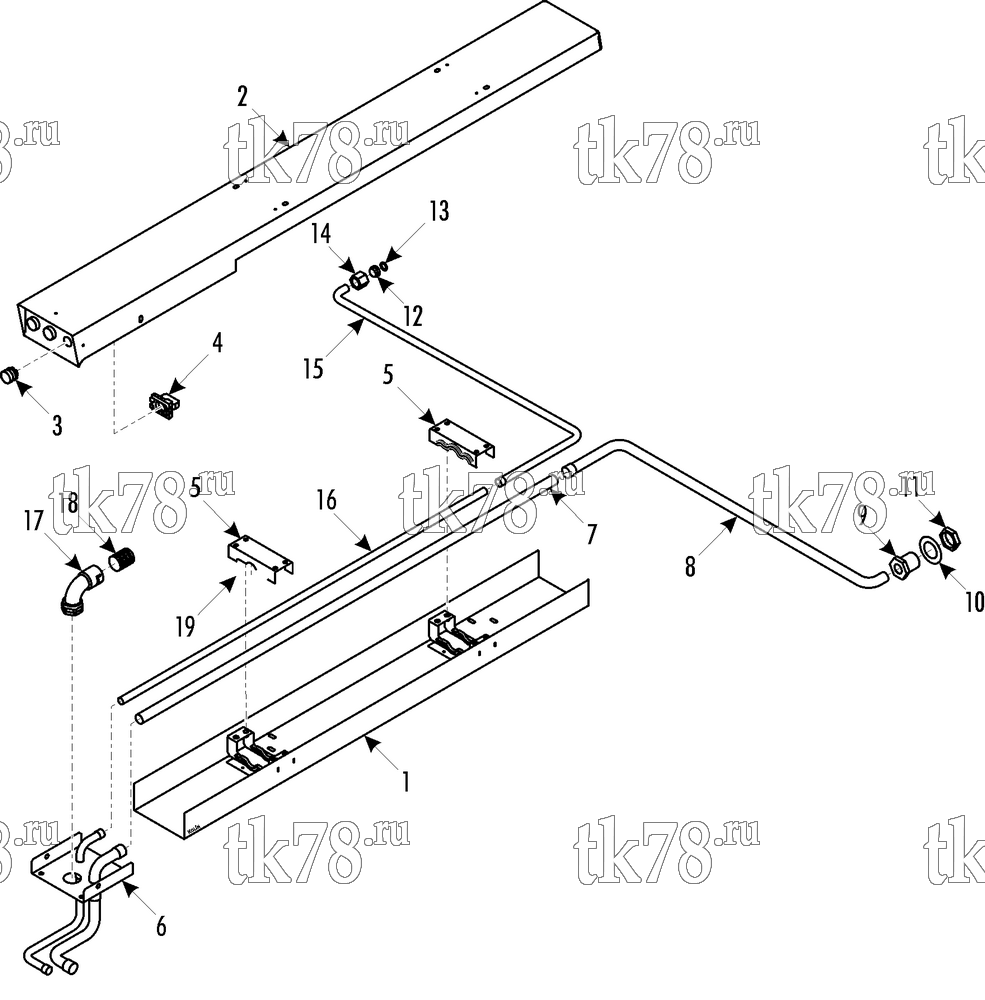

Установкa Thermo King IRV-HVAC System (ISAP A & B) схема INTERFACE & ROOF TUBES – 224A4
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7836 | CHANNEL - tubes | 1 | |
| 55-9553 | NUT - captive | 8 | ||
| 55-6994 | SCREW - channel to train | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 51-1666 | INSERT | 4 | ||
| 2 | 98-7837 | COVER (ISAP A) | 1 | |
| 98-7964 | COVER (ISAP B) | 1 | ||
| 51-956 | SCREW - cover to channel & interface | 6 | ||
| 55-5970 | WASHER | 6 | ||
| 55-7373 | NUT - captive | 2 | ||
| 3 | 41-7880 | LIGHT | 3 | |
| 4 | 41-7881 | BODY - light | 3 | |
| 5 | 92-6354 | BRACKET | 2 | |
| 55-6994 | SCREW - bracket | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 6 | 92-6355 | INTERFACE | 1 | |
| 55-6994 | SCREW - interface to train | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 51-1666 | INSERT | 4 | ||
| 7 | 61-4056 | TUBE | 1 | |
| 8 | 61-4057 | TUBE | 1 | |
| 9 | 66-6840 | ADAPTER - bulkhead (#16, ORS) | 1 | |
| 10 | 55-5741 | LOCKWASHER | 1 | |
| 11 | 55-5740 | NUT - bulkhead (#16) | 1 | |
| 12 | 55-6356 | SHOULDER | 1 | |
| 13 | 33-1223 | O-RING | 1 | |
| 14 | 55-6396 | NUT - shoulder | 1 | |
| 15 | 61-4058 | TUBE | 1 | |
| 16 | 61-4059 | TUBE | 1 | |
| 17 | 51-939 | BUSHING - cable | 1 | |
| 51-696 | WASHER - sealing | 1 | ||
| 55-9561 | LOCKNUT - bushing | 1 | ||
| 18 | 41-5555 | CONDUIT | A/R | |
| 19 | 92-3279 | STRIP - flange | A/R |
