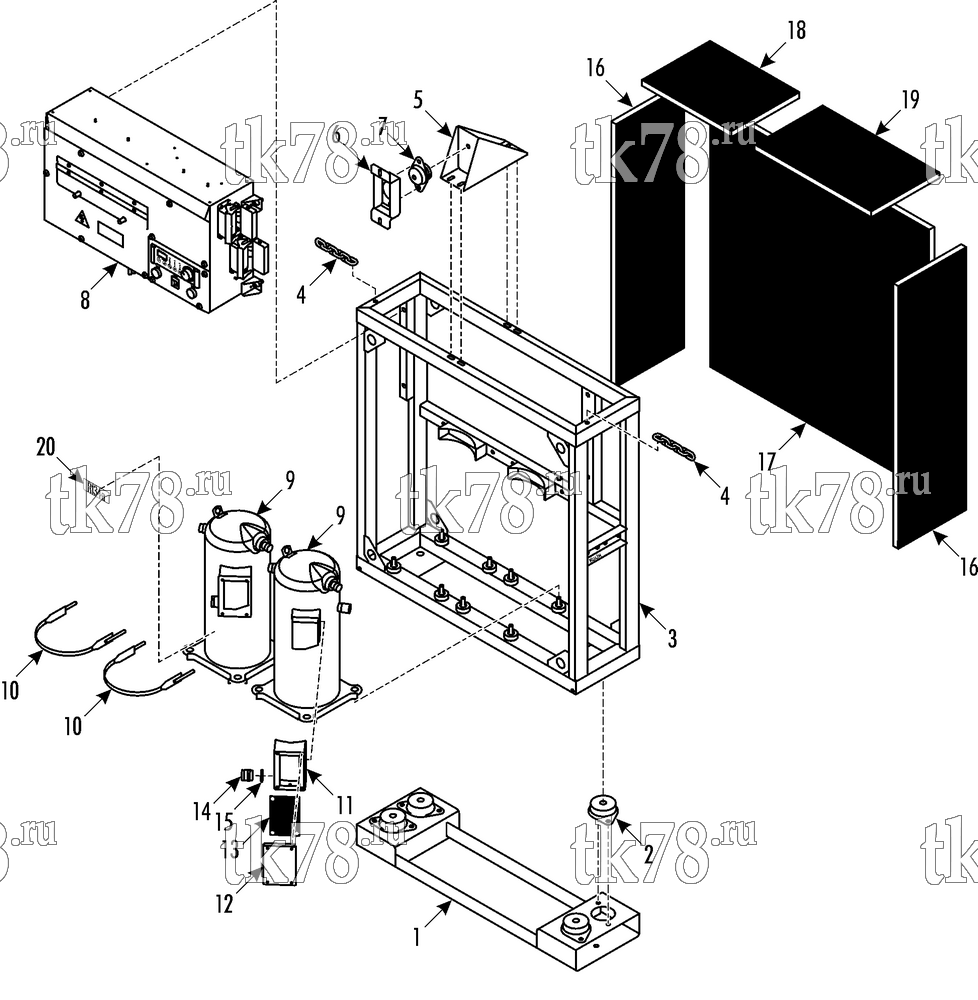

Установкa Thermo King IRV-HVAC System (ISAP A & B) схема POWER PACK – 219H7
Обновление от: 5/7/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7831 | BASE - power pack | 1 | |
| 55-7358 | SCREW - base to train | 6 | ||
| 55-7347 | LOCKWASHER | 6 | ||
| 51-958 | FLATWASHER | 8 | ||
| 55-7348 | NUT | 2 | ||
| 2 | 309-2435 | ISOLATOR | 4 | |
| 55-6993 | SCREW - isolator to base | 8 | ||
| 51-953 | FLATWASHER | 16 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 55-7825 | NUT | 8 | ||
| 3 | 98-7832 | FRAME - power pack | 1 | |
| 55-7373 | NUT - captive (M6) | 4 | ||
| 51-758 | NUT - captive (M8) | 4 | ||
| 55-4499 | NUT - (M6) | 1 | ||
| 51-1657 | SCREW - frame to isolator | 4 | ||
| 51-1658 | FLATWASHER | 8 | ||
| 51-1659 | LOCKWASHER | 4 | ||
| 51-1660 | NUT | 4 | ||
| 4 | 92-6340 | CHAIN | 2 | |
| 55-9158 | SCREW - chain to frame | 2 | ||
| 51-953 | FLATWASHER | 4 | ||
| 55-7066 | LOCKWASHER | 2 | ||
| 55-7825 | NUT | 2 | ||
| 55-6987 | SCREW - chain to train | 2 | ||
| 51-953 | FLATWASHER | 4 | ||
| 55-7066 | LOCKWASHER | 2 | ||
| 55-7825 | NUT | 2 | ||
| 5 | 92-6341 | HOLDER - isolator (no.1) | 1 | |
| 55-8402 | SCREW - holder to frame | 4 | ||
| 51-953 | FLATWASHER | 8 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-7825 | NUT | 4 | ||
| 6 | 92-6342 | HOLDER - isolator (no.2) | 1 | |
| 55-6987 | SCREW - isolator to train | 2 | ||
| 51-953 | FLATWASHER | 4 | ||
| 55-7066 | LOCKWASHER | 2 | ||
| 55-7825 | NUT | 2 | ||
| 7 | 309-1969 | ISOLATOR | 1 | |
| 51-1661 | SCREW - isolator to holder (no.1) | 1 | ||
| 51-958 | FLATWASHER | 2 | ||
| 55-7347 | LOCKWASHER | 1 | ||
| 55-7348 | NUT | 1 | ||
| 55-6993 | SCREW - isolator to holder (no.2) | 2 | ||
| 51-953 | FLATWASHER | 4 | ||
| 55-7066 | LOCKWASHER | 2 | ||
| 55-7825 | NUT | 2 | ||
| 8 | NSS | ELECTRO BOX (see 219H8) | 1 | |
| 9 | 102-829 | COMPRESSOR | 2 | |
| 55-4931 | WASHER | 8 | ||
| 55-7347 | LOCKWASHER | 8 | ||
| 55-7348 | NUT | 8 | ||
| 10 | 92-4209 | BRACKET - assembly | 2 | |
| 55-7085 | FLATWASHER | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-7825 | NUT | 4 | ||
| 11 | 92-4210 | BOX - junction (compressor) | 2 | |
| 55-3027 | SCREW - junction to compressor | 4 | ||
| 55-3008 | WASHER - sealing | 4 | ||
| 55-4526 | NUT - captive | 4 | ||
| 12 | 91-9955 | COVER - junction box | 2 | |
| 55-9349 | SCREW - cover | 8 | ||
| 55-7861 | LOCKWASHER | 8 | ||
| 55-7697 | FLATWASHER | 8 | ||
| 55-7866 | NUT - captive | 8 | ||
| 13 | 33-3173 | GASKET - plate | 2 | |
| 14 | 55-9556 | BUSHING - cable | 2 | |
| 15 | 55-9560 | LOCKNUT | 2 | |
| 16 | 92-6343 | INSULATION - side | 2 | |
| 17 | 92-6344 | INSULATION - back | 1 | |
| 18 | 92-6345 | INSULATION - top | 1 | |
| 19 | 92-6346 | INSULATION - top | 1 | |
| 20 | 91-5459 | NAMEPLATE - R134a | 1 |
