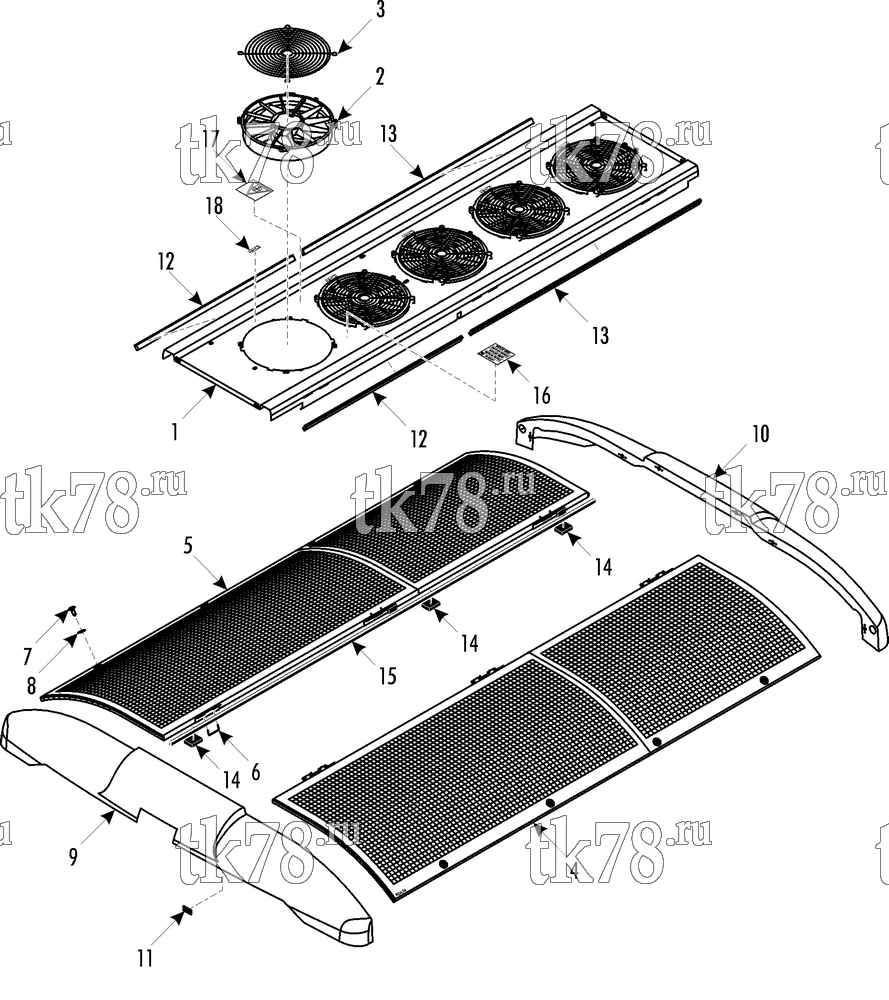

Установкa Thermo King IRV-HVAC System (ISAP A & B) схема COVER - CONDENSER – 219G9
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6386 | PLATE | 1 | |
| 55-6994 | SCREW - plate | 9 | ||
| 55-7170 | LOCKWASHER | 9 | ||
| 55-7075 | FLATWASHER | 9 | ||
| 2 | 78-1614 | FAN | 5 | |
| 3 | 98-5425 | GUARD - fan | 5 | |
| 55-7372 | SCREW - fan & guard | 20 | ||
| 55-9190 | LOCKWASHER | 20 | ||
| 55-8893 | FLATWASHER | 20 | ||
| 55-7373 | NUT - captive | 20 | ||
| 4 | 98-6960 | COVER - condenser | 1 | |
| 5 | 98-6961 | COVER - condenser | 1 | |
| 6 | 91-9877 | ROD | 6 | |
| 7 | 55-2782 | SCREW - special | 8 | |
| 8 | 55-7112 | WASHER - special | 8 | |
| 9 | 98-7824 | SPOILER | 1 | |
| 10 | 98-7960 | SPOILER | 1 | |
| 11 | 92-1217 | PLATE - nut | 12 | |
| 55-3035 | RIVET - plate | 24 | ||
| 55-6994 | SCREW - spoiler | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 12 | 92-6318 | INSULATION | 2 | |
| 13 | 92-6319 | INSULATION | 2 | |
| 14 | 33-3531 | STRIP - neoprene | A/R | |
| 15 | 99-4976 | STRIP - neoprene | A/R | |
| 16 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 17 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 18 | 99-4931 | NAMEPLATE - Arrow (red) | 5 |
