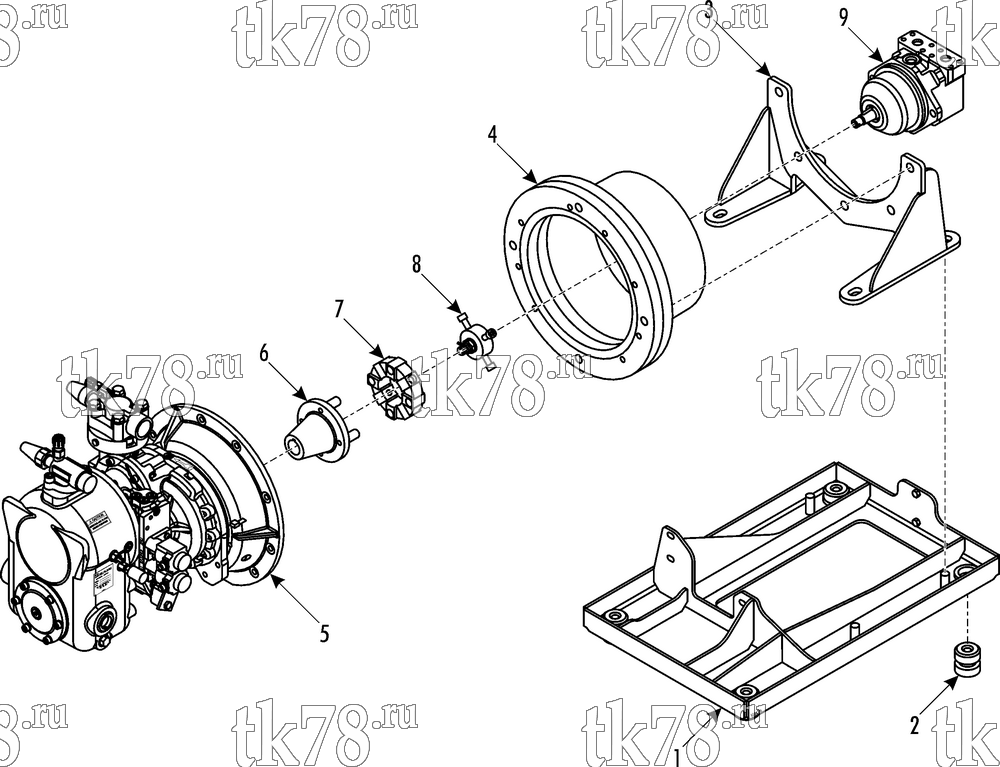

Установкa Thermo King Hydraulic Drive QS616B схема COMPRESSOR DRIVE SYSTEM – 234G9
Обновление от: 6/24/09
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 108-2716 | BRACKET - compressor | 1 |
| 51-1888 | SCREW - bracket | 2 | |
| 55-4614 | LOCKWASHER | 2 | |
| 2 | 108-2343 | MOUNT - vibration | 4 |
| 55-7023 | SCREW - mount | 4 | |
| 108-1746 | FLATWASHER | 4 | |
| 55-5914 | FLATWASHER | 4 | |
| 108-1588 | NUT | 4 | |
| 3 | 108-2717 | ADAPTER - bracket | 1 |
| 51-1889 | NUT | 4 | |
| 51-152 | FLATWASHER | 4 | |
| 4 | 108-2718 | HOUSING - complete | 1 |
| 51-1890 | SCREW - housing (55 mm length) | 1 | |
| 51-1891 | SCREW - housing (65 mm length) | 3 | |
| 108-1600 | WASHER | 4 | |
| 5 | NSS | COMPRESSOR - assy (see 234G0) | 1 |
| 51-1892 | SCREW - compressor to bracket | 3 | |
| 51-144 | WASHER | 3 | |
| 51-1893 | SCREW - compressor to housing | 8 | |
| 6 | 108-2719 | HUB - compressor, complete | 1 |
| 7 | 108-2720 | ELEMENT | 1 |
| 8 | 108-2721 | HUB - hydraulic motor, complete | 1 |
| 9 | 108-2722 | MOTOR - hydraulic | 1 |
| 51-1894 | SCREW - motor | 2 | |
| 55-5914 | FLATWASHER | 4 | |
| 108-1588 | NUT | 2 |
