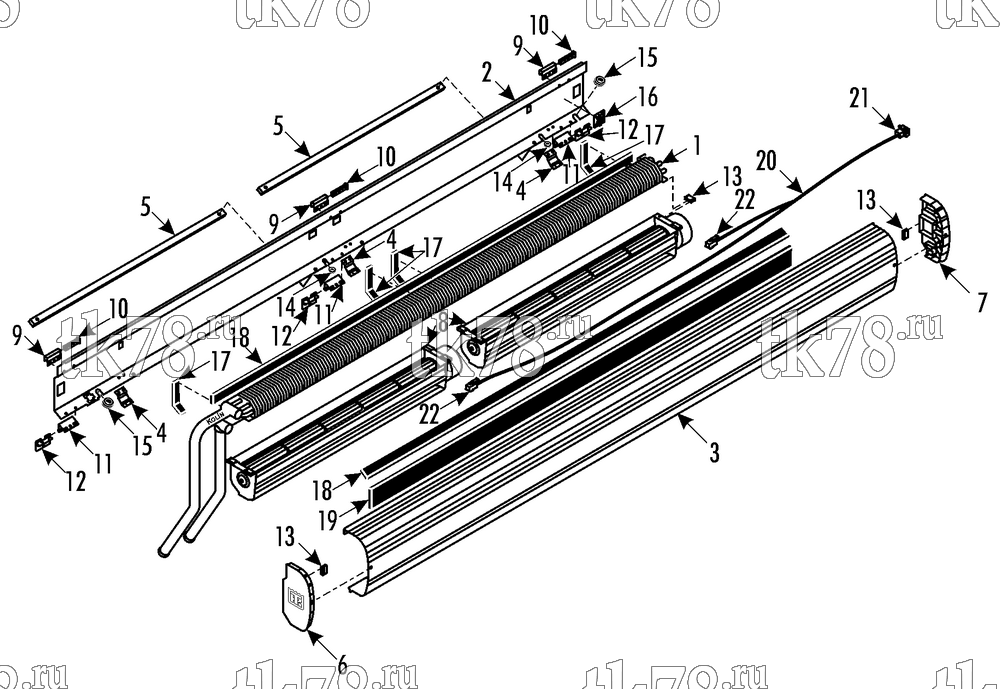

Установкa Thermo King Heating Systems Berkhof SB180 (900435) SB200 (900431) схема CONVECTOR KIT (700785) – 216B7
Обновление от: 10/14/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2285 | HEATER - assy | 1 | |
| 2 | 98-7706 | COVER - back | 1 | |
| 55-5130 | RIVET - cover | 4 | ||
| 3 | NSS | COVER - front | 1 | |
| 51-773 | RIVET - cover, plastic | 2 | ||
| 4 | 51-294 | CLAMP - slider | 3 | |
| 51-1227 | RIVET - clamp | 6 | ||
| 5 | 92-3410 | SLOT - open | A/R | |
| 51-257 | RIVET - slot | 4 | ||
| 6 | 92-3056 | COVER - end | 1 | |
| 7 | 92-3057 | COVER - end | 1 | |
| 8 | 78-1399 | BLOWER | 2 | |
| 9 | 92-2650 | BRACKET | 3 | |
| 51-1227 | RIVET - bracket | 6 | ||
| 10 | 92-2647 | SLIDER | 3 | |
| 11 | 92-2649 | BRACKET - bottom | 3 | |
| 51-1227 | RIVET - bracket | 6 | ||
| 12 | 92-2648 | SLIDER - bottom | 3 | |
| 13 | 51-262 | CLAMP | 10 | |
| 14 | 33-2212 | GROMMET (0.188 id) | 2 | |
| 15 | 33-282 | GROMMET (0.375 id) | 2 | |
| 16 | 92-5033 | MOUNT - bandwrap | 1 | |
| 56-2330 | BANDWRAP | 1 | ||
| 17 | 91-9862 | STRIP - neoprene | A/R | |
| 18 | 33-2975 | STRIP - neoprene | A/R | |
| 19 | 92-3185 | STRIP - neoprene | A/R | |
| 20 | 41-7669 | HARNESS - convector | 1 | |
| 21 | 41-4949 | CONNECTOR (4-pin, male) | 1 | |
| 22 | 41-2769 | CONNECTOR (4-pin, female) | 2 |
