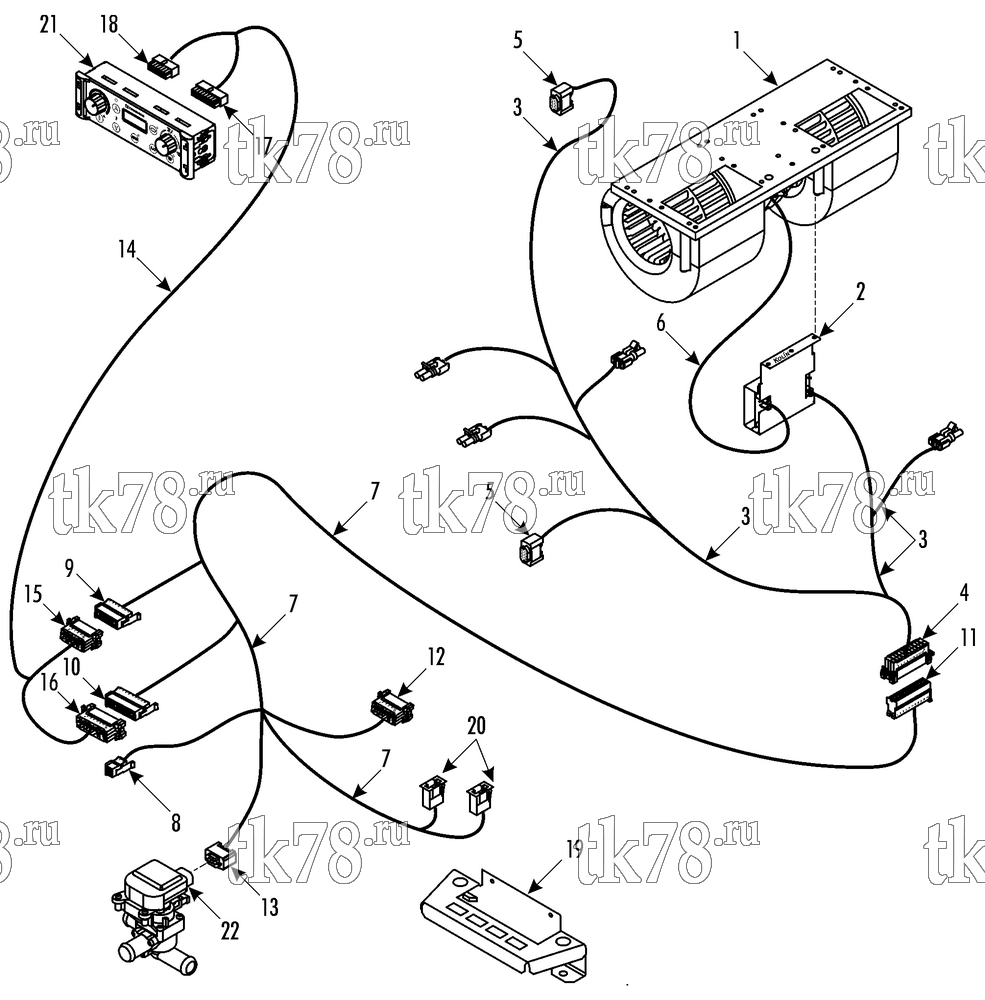

Установкa Thermo King Heating Systems Berkhof SB180 (900435) SB200 (900431) схема ELECTRICAL COMPONENTS (FRONT BOX) – 216B5
Обновление от: 11/1/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1395 | BLOWER (24V) | 1 | |
| 2 | 41-5191 | CONTROLLER - speed | 1 | |
| 55-5130 | RIVET - controller | 2 | ||
| 3 | 41-7331 | HARNESS - frontbox (for connectors see 115D14) | 1 | |
| 4 | 41-2765 | CONNECTOR (22-pin, male) | 1 | |
| 5 | 41-3288 | CONNECTOR (6-pin, female) | 2 | |
| 6 | 41-5192 | HARNESS - blower | 1 | |
| 7 | 41-7670 | HARNESS - control | 1 | |
| 8 | 41-2769 | CONNECTOR (4-pin, female) | 1 | |
| 9 | 41-5752 | CONNECTOR (14-pin, female) | 1 | |
| 10 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 11 | 41-3858 | CONNECTOR (22-pin, female) | 1 | |
| 12 | 41-5749 | CONNECTOR (14-pin, male) | 1 | |
| 13 | 41-3288 | CONNECTOR (6-pin, female) | 1 | |
| 14 | 41-7345 | HARNESS - control panel to driver panel (1.2 m) | 1 | |
| 15 | 41-5749 | CONNECTOR (14-pin, male) | 1 | |
| 16 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 17 | 41-650 | CONNECTOR (18 terminal, male) | 1 | |
| 18 | 41-661 | CONNECTOR (14 terminal, male) | 1 | |
| 19 | 92-6092 | PLATE - holder | 1 | |
| 92-3279 | STRIP - flange | A/R | ||
| 20 | 41-4965 | HOLDER - fuse | 2 | |
| 41-1292 | FUSE (5 amps) | 1 | ||
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amps) | 1 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 21 | 45-2129 | PANEL - driver (FrontAIRE II, see 215A1) | 1 | |
| 22 | 41-5649 | VALVE - water | 1 |
