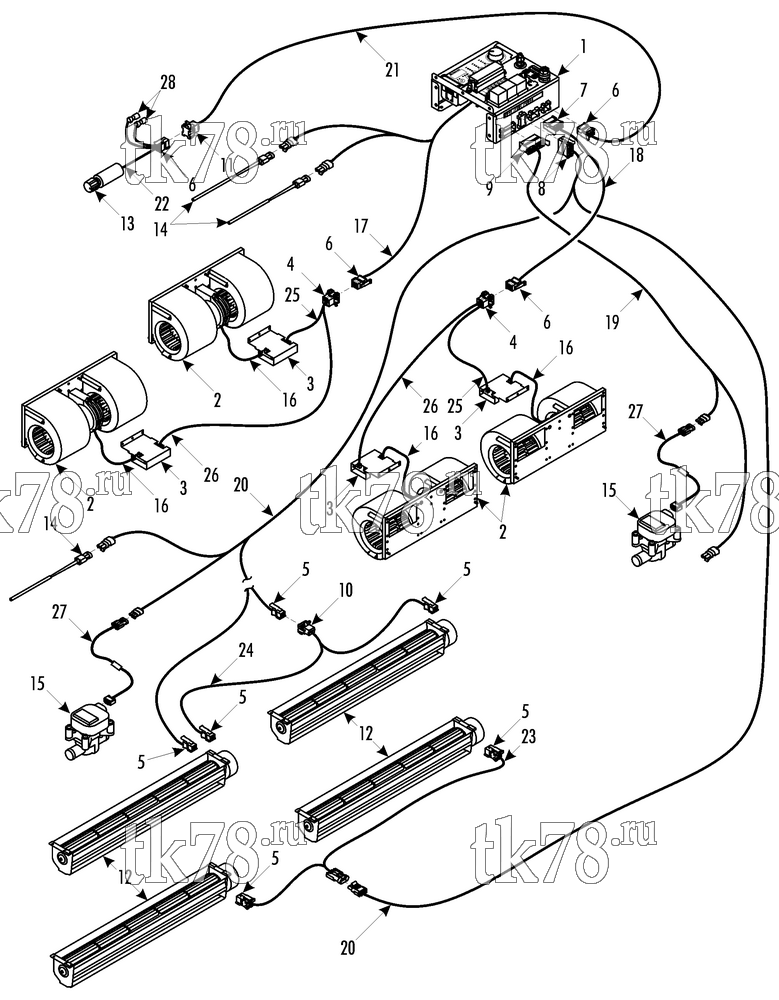

Установкa Thermo King Heating Systems Berkhof SB180 (900435) SB200 (900431) схема ELECTRICAL COMPONENTS (CONDOR) – 216B3
Обновление от: 11/14/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANEL - control (see 190C8) | 1 | |
| 2 | 78-1395 | BLOWER - condor (see 211D8 & 211D9) | 4 | |
| 3 | 41-2757 | CONTROLLER - speed (see 211D8 & 211D9) | 4 | |
| 4 | 41-2775 | CONNECTOR (6-pin, male) | 2 | |
| 5 | 41-2769 | CONNECTOR (4-pin, female, 5 for SB-200, 3 for SB-180) | A/R | |
| 6 | 41-2767 | CONNECTOR (6-pin, female) | 4 | |
| 7 | 41-3860 | CONNECTOR (8-pin, female) | 1 | |
| 8 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 9 | 41-5752 | CONNECTOR (14-pin, female) | 1 | |
| 10 | 41-4949 | CONNECTOR (4-pin, male, only for SB-180) | 1 | |
| 11 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 12 | 78-1399 | BLOWER - convector (4 for SB-200, 3 for SB-180) | A/R | |
| 13 | 41-5753 | POTENTIOMETER | 1 | |
| 14 | 41-4157 | SENSOR - temperature | 3 | |
| 15 | 41-6592 | VALVE - water (# 22) | 1 | |
| 41-7665 | VALVE - water (# 28) | 1 | ||
| 16 | 41-5192 | HARNESS - blower | 4 | |
| 17 | 41-7666 | HARNESS - cp system (for connectors see 115D14) | 1 | |
| 18 | 41-5756 | HARNESS - condor heater (left) | 1 | |
| 19 | 41-7667 | HARNESS - pump & water valve (for connectors see 115D14) | 1 | |
| 20 | 41-7668 | HARNESS - floor heating (for connectors see 115D14) | 1 | |
| 21 | 41-5757 | HARNESS - driver panel | 1 | |
| 22 | 41-5758 | HARNESS - ClimaAIRE II (knob) | 1 | |
| 23 | 41-5760 | HARNESS - convector (front, for connectors see 115D14) | 1 | |
| 24 | 41-7669 | HARNESS - convector (back, only for SB-180, for connectors see 115D14) | 1 | |
| 25 | 41-5762 | HARNESS - condor heater | 2 | |
| 26 | 41-6812 | HARNESS - condor heater | 2 | |
| 27 | 41-6767 | CONTROLLER - servomotor | 2 | |
| 28 | 41-5243 | TERMINAL | 2 |
