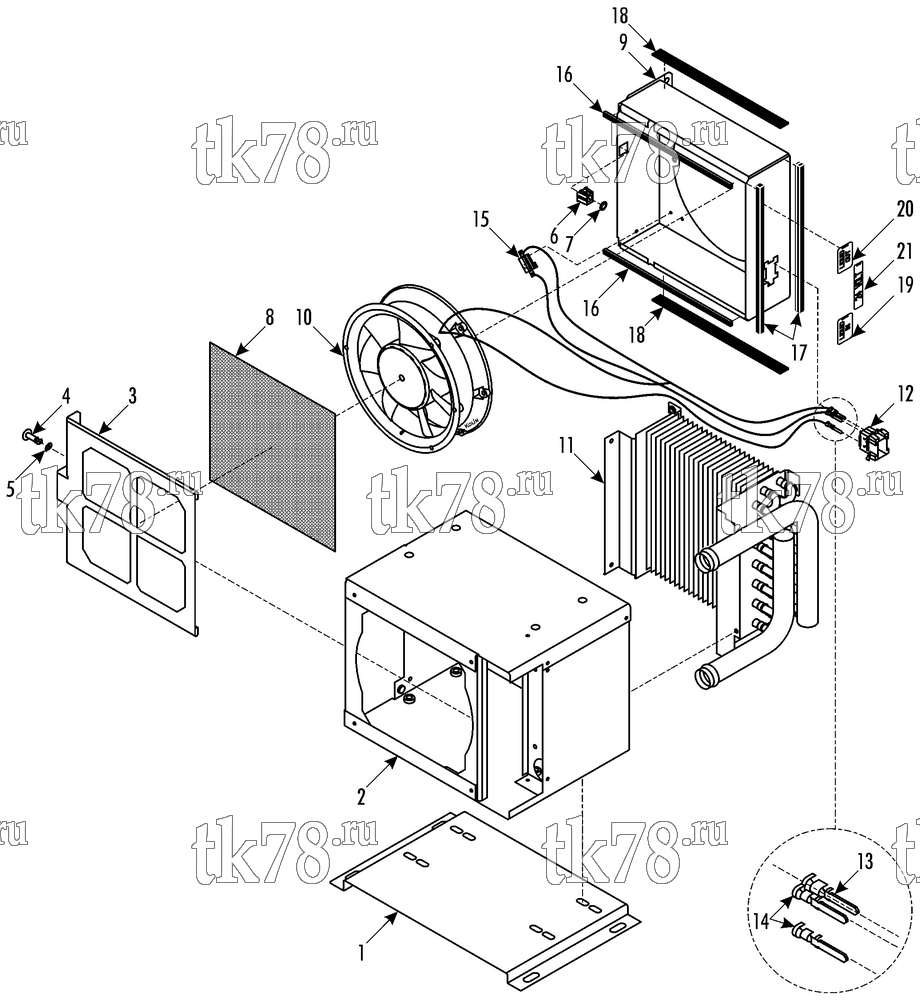

Установкa Thermo King Heater TRACKER схема TRACKER ASSY (1E12808G01) – 211E2
Обновление от: 5/22/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3747 | BRACKET - right / left | 1 | |
| 2 | 92-5742 | BOX | 1 | |
| 55-9504 | SCREW - box to bracket | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 3 | 92-5743 | PLATE | 1 | |
| 4 | 55-9913 | STUD | 1 | |
| 5 | 92-5277 | SPRING | 1 | |
| 6 | 51-1340 | SNAP | 1 | |
| 7 | 55-9914 | WASHER - retainer | 1 | |
| 8 | 92-5744 | FILTER | 1 | |
| 9 | 92-3751 | CASE - fan | 1 | |
| 51-852 | SCREW - case | 2 | ||
| 55-7370 | LOCKWASHER | 2 | ||
| 10 | 78-1407 | FAN | 1 | |
| 51-853 | SCREW - fan | 3 | ||
| 55-7861 | LOCKWASHER | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 11 | 67-2222 | COIL | 1 | |
| 55-3669 | RIVET - coil | 4 | ||
| 12 | 41-3839 | CONNECTOR | 1 | |
| 13 | 41-2785 | PIN - male | 1 | |
| 14 | 41-2779 | PIN - male | 2 | |
| 15 | 41-5942 | RESISTOR | 1 | |
| 51-854 | SCREW - resistor | 2 | ||
| 16 | 92-5745 | INSULATION | 2 | |
| 17 | 92-3748 | STRIP - neoprene | A/R | |
| 18 | 92-3753 | INSULATION | 2 | |
| 19 | 91-7703 | NAMEPLATE - Liquid In | 1 | |
| 20 | 91-7550 | NAMEPLATE - Liquid Out | 1 | |
| 21 | 99-2477 | NAMEPLATE - 24 Volt | 1 |
