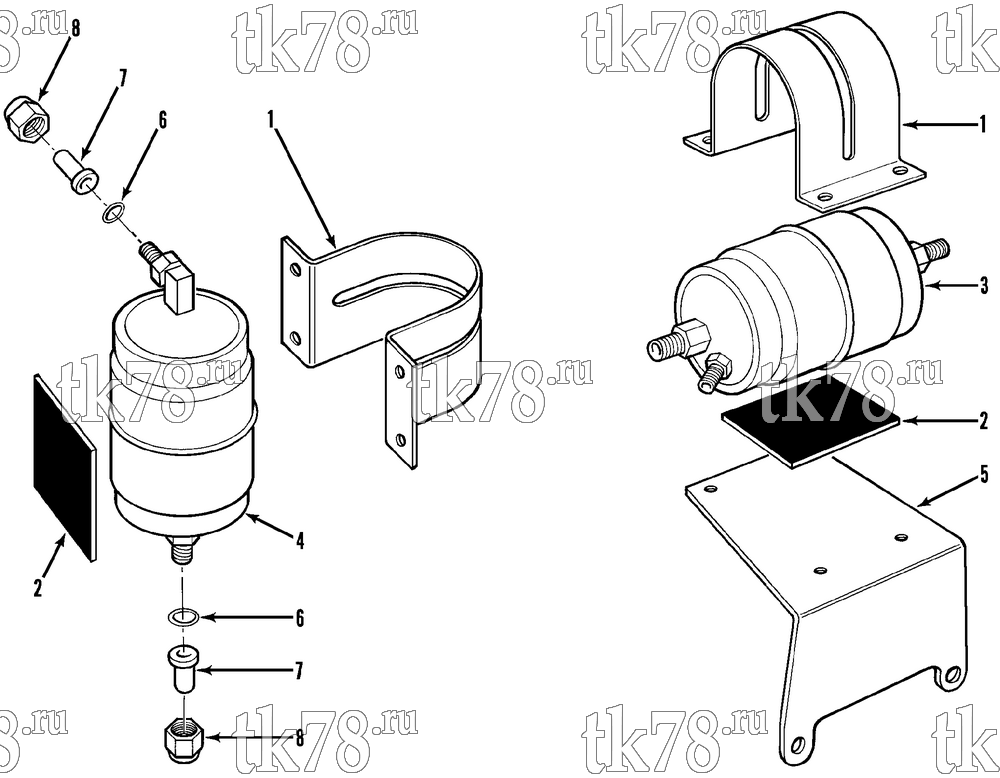

Установкa Thermo King HY MAX схема DEHYDRATOR & OIL SEPARATOR GROUP – 127G6
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-7602 | HANGER - filter | 2 | |
| 2 | 99-4326 | PAD (rubber) | 2 | |
| 3 | 66-8547 | SEPARATOR - oil | 1 | |
| 55-6994 | SCREW | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 4 | 61-800 | DEHYDRATOR | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 4 650 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 600 ₽ |
|
| 55-7172 | SCREW - dehydrator | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7042 | NUT | 4 | ||
| 5 | 91-6792 | BRACKET - oil separator | 1 | |
| 55-7355 | SCREW - bracket | 2 | ||
| 55-7357 | FLATWASHER | 2 | ||
| 55-7344 | NUT | 2 | ||
| 6 | 33-1015 | O-RING | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 7 | 55-8268 | SHOULDER | 2 | |
| 8 | 55-8267 | NUT - shoulder | 2 |
