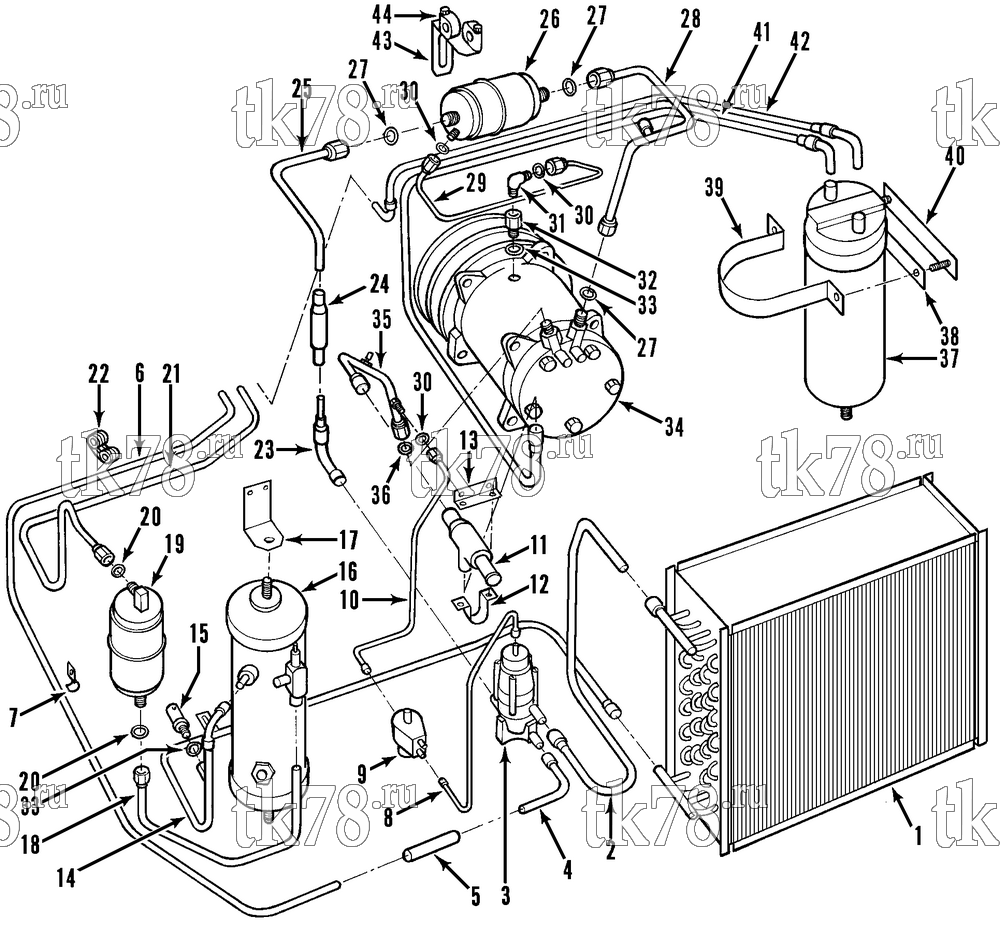

Установкa Thermo King HY MAX схема REFRIGERATION - CONDENSER – 127G4
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1292 | COIL - condenser (see 127G1) | 1 | |
| 2 | 66-7919 | TUBE - 3-way to coil | 1 | |
| 3 | 66-4973 | VALVE - 3-way (see 106D3) | 1 | |
| 55-214 | SCREW - 3-way valve | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 4 | 66-7920 | TUBE - restrictor to 3-way valve | 1 | |
| 5 | 66-7921 | RESTRICTOR | 1 | |
| 6 | 66-7922 | TUBE - bulkhead to restrictor | 1 | |
| 7 | 55-7852 | CLAMP - tube | 1 | |
| 55-7172 | SCREW - clamp | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | NUT | 1 | ||
| 8 | 66-7923 | TUBE - 3-way valve to pilot solenoid | 1 | |
| 9 | 66-7071 | VALVE - pilot solenoid | 1 | |
| 44-6158 | COIL | 1 | ||
| 55-1384 | SCREW - valve | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-8786 | NUT - valve | 1 | ||
| 10 | 66-7924 | TUBE - pilot solenoid to compressor suction | 1 | |
| 11 | 66-6597 | VALVE - pressure regulator | 1 | |
| 55-8611 | CIRCLIP | 1 | ||
| 12 | 91-6786 | STRAP - pressure regulating valve | 1 | |
| 55-7407 | SCREW - strap | 2 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-7034 | NUT | 2 | ||
| 13 | 91-6787 | BRACKET - pressure regulating valve | 1 | |
| 55-7407 | SCREW - bracket | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 55-8375 | NUT | 2 | ||
| 14 | 66-7925 | TUBE - coil to receiver tank | 1 | |
| 55-7172 | SCREW - tube | 1 | ||
| 55-7740 | WASHER - special | 1 | ||
| 55-7042 | NUT | 1 | ||
| 15 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 16 | 67-1180 | TANK - receiver | 1 | |
| 55-289 | NUT | 2 | ||
| 55-2298 | WASHER - special | 1 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 17 | 91-6788 | BRACKET - receiver tank | 1 | |
| 55-6994 | SCREW | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7042 | NUT | 2 | ||
| 18 | 66-7926 | TUBE - receiver tank to dehydrator | 1 | |
| 19 | 61-800 | DEHYDRATOR (see 127G6) | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 4 650 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 600 ₽ |
|
| 20 | 33-1015 | O-RING | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 21 | 66-7927 | TUBE - dehydrator to bulkhead | 1 | |
| 22 | 55-2239 | CLAMP - tube | 2 | |
| 55-7752 | SCREW | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | NUT | 1 | ||
| 23 | 66-7928 | TUBE - check valve to 3-way valve | 1 | |
| 24 | 66-5722 | VALVE - check | 1 | |
| 25 | 66-7929 | TUBE - oil separator to check valve | 1 | |
| 26 | 66-8547 | SEPARATOR - oil (see 127G6) | 1 | |
| 27 | 55-2070 | GASKET - flare | 3 | |
| 28 | 66-7930 | TUBE - compressor to oil separator | 1 | |
| 29 | 66-7931 | TUBE - oil return | 1 | |
| 30 | 33-768 | GASKET - flare | 3 | |
| 31 | 55-308 | ELBOW | 1 | |
| 32 | 22-879 | ADAPTER | 1 | |
| 33 | 33-1015 | O-RING | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 34 | 102-343 | COMPRESSOR (see 127G1) | 1 | |
| 35 | 66-7932 | TUBE - pressure regulating valve to compressor | 1 | |
| 36 | 55-1110 | GASKET - flare | 1 | |
| 37 | 67-891 | TANK - accumulator | 1 | |
| 55-375 | LOCKWASHER | 1 | ||
| 55-3227 | NUT | 1 | ||
| 38 | 91-6789 | SPACER | 1 | |
| 39 | 91-6970 | STRAP - accumulator tank | 1 | |
| 55-7085 | FLATWASHER | 2 | ||
| 55-7339 | NUT | 2 | ||
| 40 | 91-6804 | BOLTSTRIP | 1 | |
| 41 | 66-7933 | TUBE - accumulator tank to pressure regulating valve | 1 | |
| 42 | 66-7934 | TUBE - bulkhead to accumulator tank | 1 | |
| 43 | 91-6791 | BRACKET - support tube | 1 | |
| 44 | 91-758 | CLAMP | 2 | |
| 55-7027 | SCREW | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | NUT | 2 |
