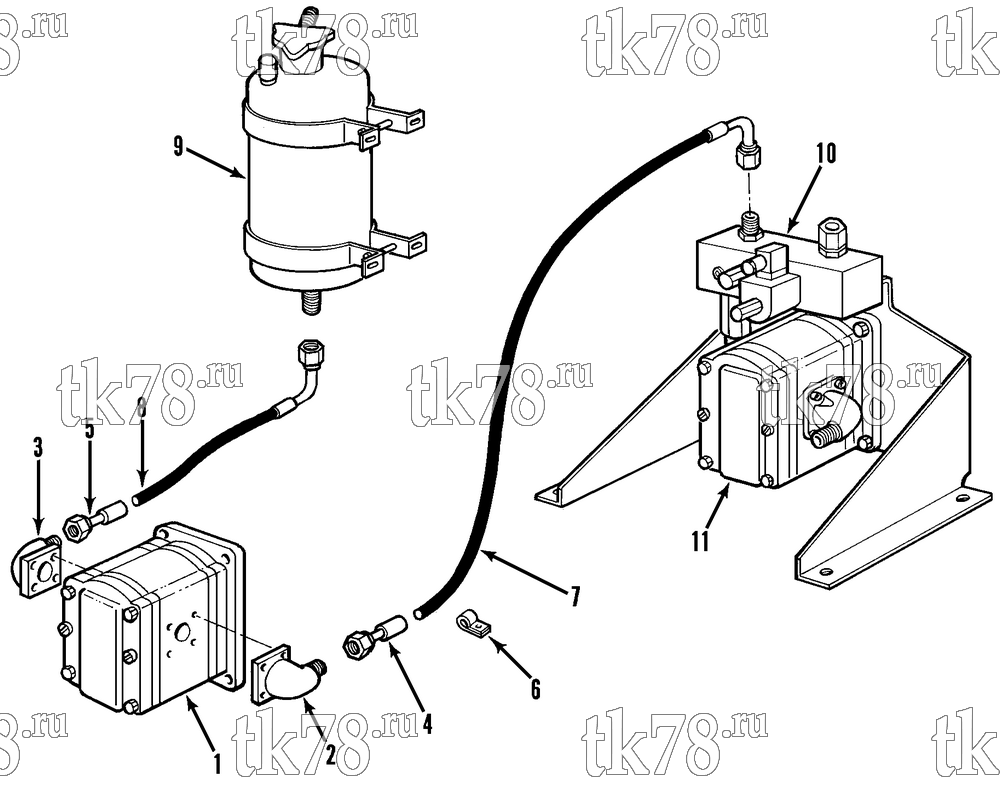

Установкa Thermo King HY MAX схема HYDRAULIC PUMP & HOSES – 127G2
Обновление от: 4/19/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-8630 | PUMP - 8CC (cw rotation) | 1 | |
| 11-8631 | PUMP - 8CC (ccw rotation) | 1 | ||
| 11-8632 | PUMP - 11CC (cw rotation) | 1 | ||
| 11-8633 | PUMP - 11CC (ccw rotation) | 1 | ||
| 2 | 55-7180 | FLANGE - pump (M22) | 1 | |
| 3 | 11-8634 | FLANGE - pump (M30) | 1 | |
| 4 | 11-8635 | COUPLING - straight (M22) | 1 | |
| 5 | 11-8636 | COUPLING - straight (M30) | 1 | |
| 6 | 55-8133 | CLAMP - hose (7/8 id) | 5 | |
| 55-8134 | CLAMP - hose (1-1/2 id) | 5 | ||
| 7 | 11-8637 | HOSE - pump to controller | 1 | |
| 8 | 11-8638 | HOSE - reservoir to pump | 1 | |
| 9 | 11-7992 | RESERVOIR - hydraulic (see 127G3) | 1 | |
| 10 | 11-8453 | CONTROLLER (see 127G3) | 1 | |
| 41-825 | COIL | 1 | ||
| 11 | 11-7516 | MOTOR - hydraulic (see 127G3) | 1 |
