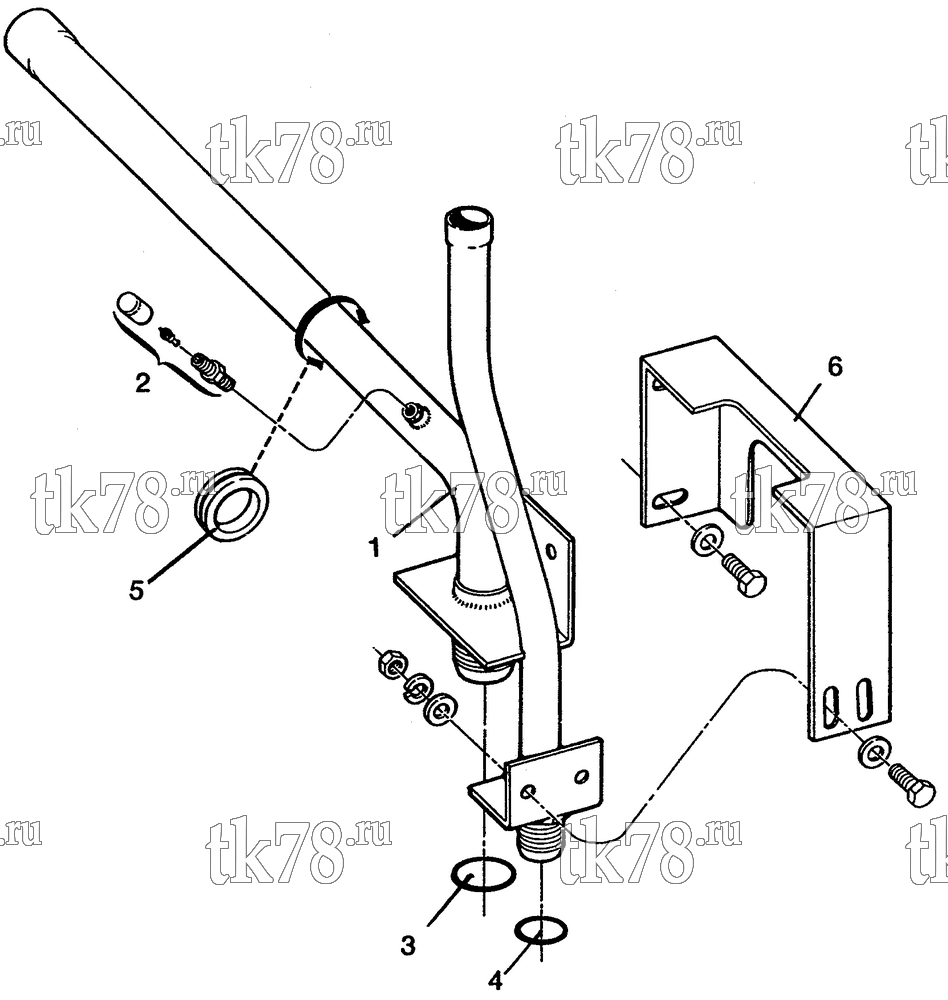

Установкa Thermo King HVAC Gillig Self Contained схема SUCTION & DISCHARGE TUBING – 98B3
Обновление от: 7/18/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 306-1267 | TUBE - suction & discharge | 1 | |
| 2 | 11-2886 | VALVE - access | 1 | |
| 55-5672 | CAP | 1 | ||
| 66-6221 | VALVE - core | 1 | ||
| 3 | 303-245 | O-RING - suction fitting | 1 | |
| 4 | 303-289 | O-RING - discharge fitting | 1 | |
| 5 | 303-209 | GROMMET (1-3/8 in id) | 1 | |
| 6 | 309-1646 | BRACKET - tube support | 1 |
