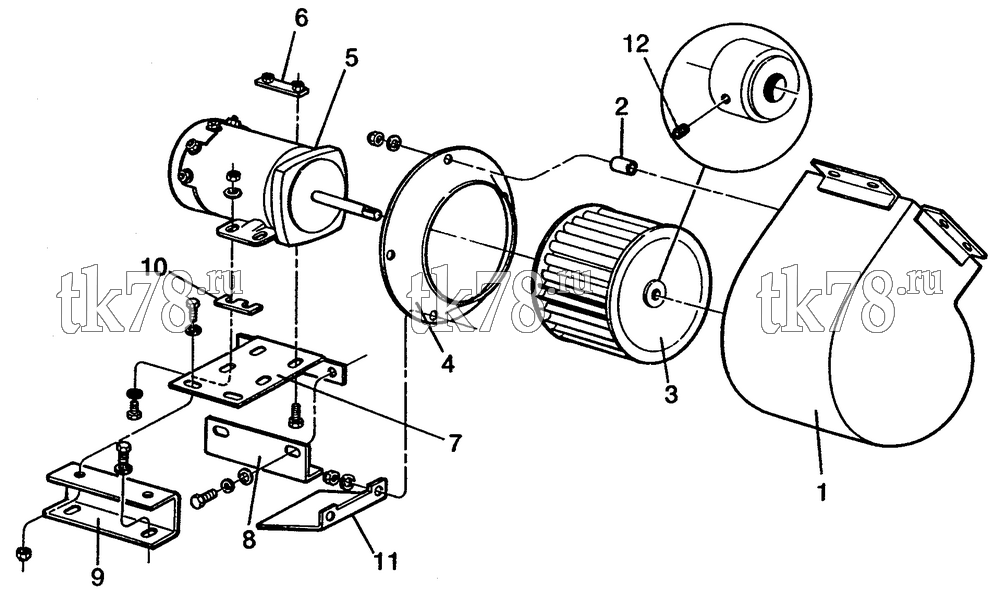

Установкa Thermo King HVAC Gillig Self Contained схема EVAPORATOR FANS – 98A13
Обновление от: 7/18/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 309-883 | HOUSING - fan wheel (curbside) | 1 | |
| 309-1594 | HOUSING - fan wheel (street side) | 1 | ||
| 303-1532 | GASKET - fan wheel housing | 1 | ||
| 2 | 305-1083 | SPACER - fan wheel housing | 4 | |
| 3 | 307-234 | WHEEL - fan (curbside) | 1 | |
| 307-233 | WHEEL - fan (roadside) | 1 | ||
| 4 | 307-257 | FLANGE - evaporator fan inlet | 1 | |
| 5 | 304-510 | MOTOR - evaporator fan | 1 | |
| 6 | 309-1636 | NUTSTRIP - evaporator fan motor mount | 1 | |
| 7 | 309-587 | PLATE - motor mount | 1 | |
| 8 | 309-1571 | SUPPORT - motor mount plate (angle) | 1 | |
| 9 | 309-1573 | SUPPORT - motor mount plate (channel) | 1 | |
| 10 | 309-690 | SHIM - motor adjustment (0.032) | A/R | |
| 309-689 | SHIM - motor adjustment (0.052 thk) | A/R | ||
| 309-691 | SHIM - motor adjustment (0.090) | A/R | ||
| 11 | 309-415 | GUARD - splash (drain pan) | 1 | |
| 12 | 55-4445 | SCREW - set (fan wheel) | 1 |
