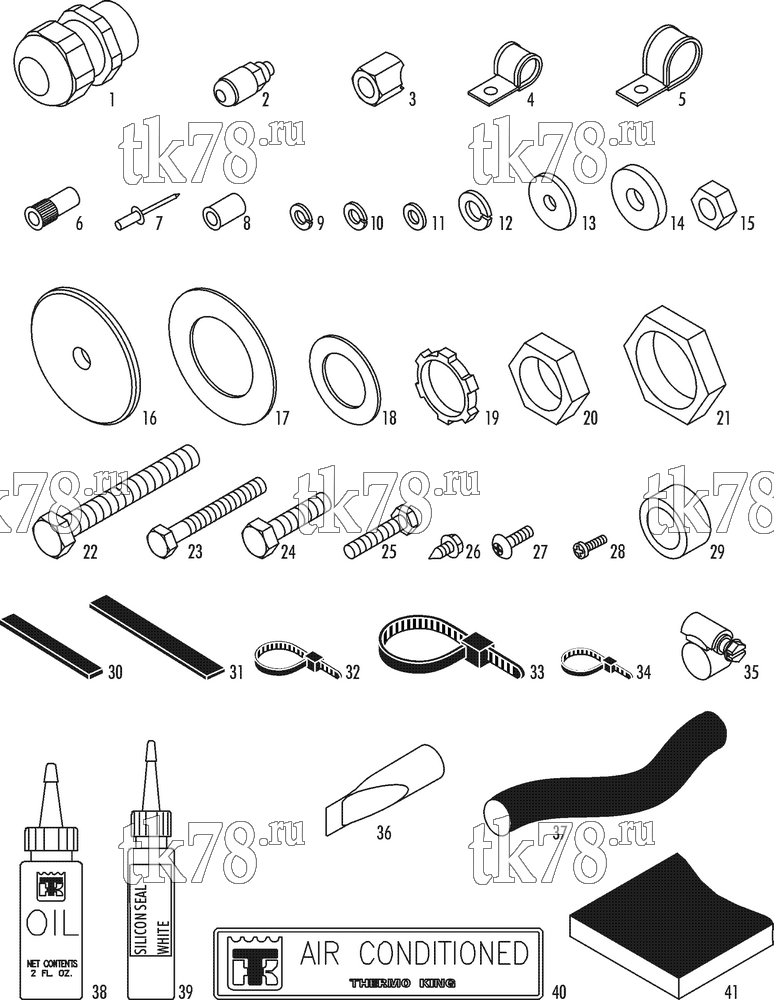

Установкa Thermo King HRT-II W Split R134a схема INSTALLATION GROUP – 175C7
Обновление от: 5/1/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-6141 | CONNECTOR - liquid tite | 1 | |
| 2 | 66-9842 | VALVE | 2 | |
| 3 | 66-3571 | FITTING - saddle | 2 | |
| 4 | 55-549 | CLAMP (0.5 in dia) | 1 | |
| 5 | 55-3741 | CLAMP (0.75 in dia) | 5 | |
| 6 | 55-8929 | RIVET - nut (M8) | 4 | |
| 7 | 55-5130 | RIVET - blind (5/32, .425, stainless steel) | 50 | |
| 8 | 55-6526 | INSERT - threaded | 35 | |
| 9 | 55-1800 | LOCKWASHER | 56 | |
| 10 | 55-7170 | LOCKWASHER (M6) | 2 | |
| 11 | 55-7075 | FLATWASHER (M6) | 2 | |
| 12 | 55-7347 | LOCKWASHER (M10) | 8 | |
| 13 | 55-2945 | WASHER - special | 50 | |
| 14 | 55-4931 | WASHER - special | 16 | |
| 15 | 55-7348 | NUT | 8 | |
| 16 | 55-8542 | WASHER - special | 4 | |
| 17 | 55-5741 | LOCKWASHER | 2 | |
| 18 | 55-6843 | LOCKWASHER (1.02 id) | 2 | |
| 19 | 55-2242 | LOCKNUT | 1 | |
| 20 | 55-6811 | NUT - bulkhead | 2 | |
| 21 | 55-5740 | NUT - bulkhead (#16) | 2 | |
| 22 | 55-8379 | SCREW (M10) | 8 | |
| 23 | 55-8931 | SCREW (M8) | 4 | |
| 24 | 55-7035 | SCREW (M6) | 2 | |
| 25 | 55-2979 | SCREW | 31 | |
| 26 | 55-5639 | SCREW | 25 | |
| 27 | 55-3099 | SCREW | 4 | |
| 28 | 55-8123 | SCREW | 5 | |
| 29 | 55-8718 | SPACER | 2 | |
| 30 | 203-391 | SEALER - tape (permagum) | A/R | |
| 31 | 203-428 | TAPE (butyl cork) | A/R | |
| 32 | 55-2330 | BANDWRAP (1.75 dia) | 50 | |
| 33 | 55-2331 | BANDWRAP (4.00 dia) | 100 | |
| 34 | 55-2332 | BANDWRAP (0.75 dia) | 50 | |
| 35 | 55-2069 | CLAMP | 20 | |
| 36 | 66-1273 | VALVE - check | 4 | |
| 37 | 98-5215 | HOSE (30 ft) | A/R | |
| 38 | 203-526 | OIL - compressor (bottle) | 1 | |
| 39 | 203-528 | SEALER | 1 | |
| 40 | 99-6884 | NAMEPLATE - TK Air Conditioned | 1 | |
| 41 | 33-2466 | INSULATION - coil | 10 |
